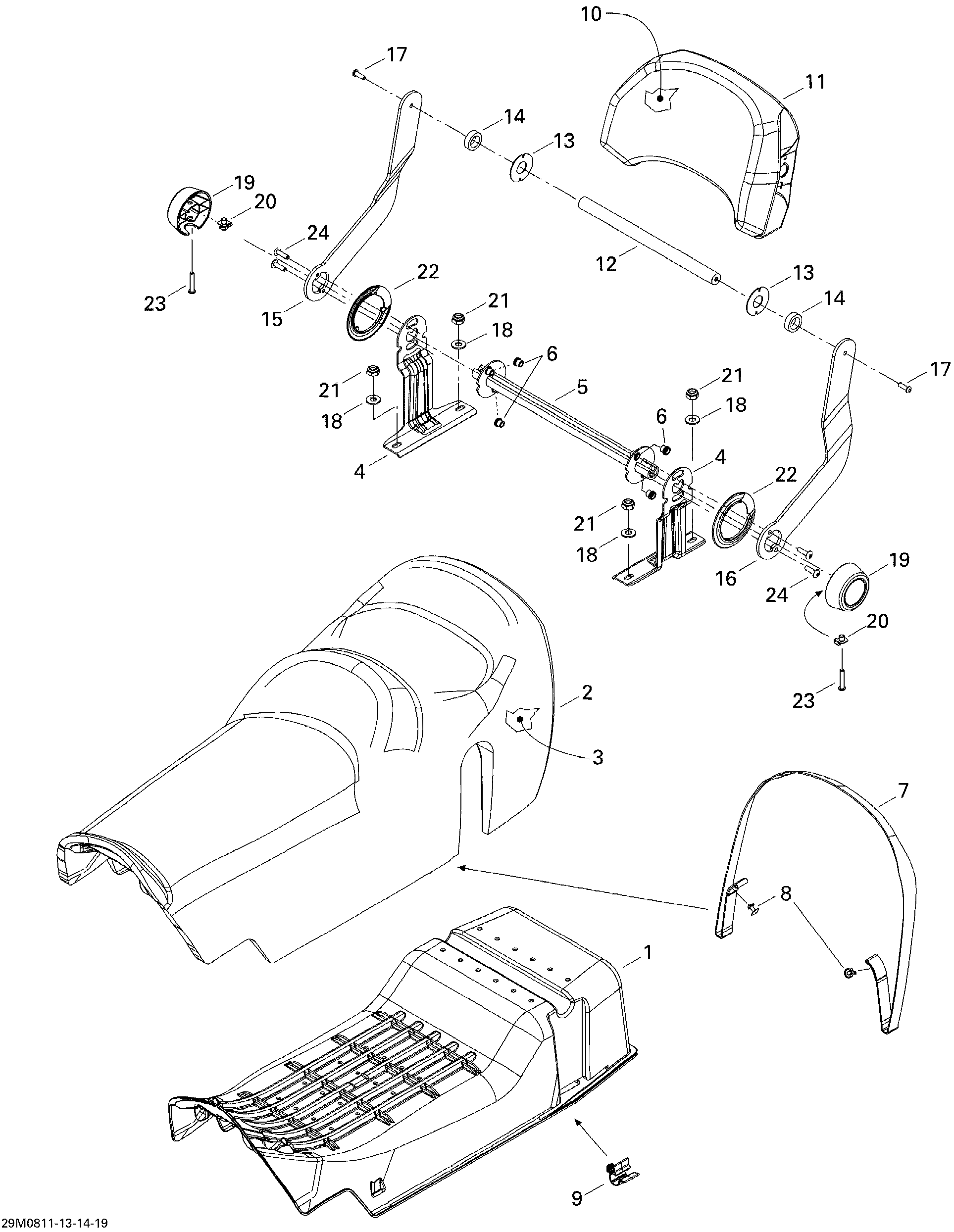

09- Seat для BRP Ski-Doo Skandic Tundra LT 550F - 2008
-
№АртикулНазвание
-
1510004887 Seat BaseSeat Base
-
2510004669 Seat CoverSeat Cover
-
3510004670 FoamFoam
-
4510004662 T PlateT Plate
-
5510004663 Cross MemberCross Member
-
7510004768 Seat BeltSeat Belt
-
8293150067 RivetRivet
-
9275500528 Hose RetainerHose Retainer
-
10510004365 Backrest FoamBackrest Foam
-
11510004761 Backress CoverBackress Cover
-
12510004377 Upper Backrest AxleUpper Backrest Axle
-
13510004379 WasherWasher
-
14510004378 Rubber ShimRubber Shim
-
15510004373 RH Arm, BlackRH Arm, Black
-
16510004375 LH Arm, BlackLH Arm, Black
-
17205982586 Socket Head Screw S.grip, M8x1.25x25Socket Head Screw S.grip, M8x1.25x25
-
18234082410 Flat Washer 8 mmFlat Washer 8 mm
-
19510004481 CapCap
-
20250100053 J-nutJ-nut
-
21232581414 Hex. Elastic Nut M8Hex. Elastic Nut M8
-
22510004713 SpacerSpacer
-
23250000220 Socket Head Screw M8x45Socket Head Screw M8x45
-
24250000197 Torx Truss Screw M8 X 30Torx Truss Screw M8 X 30
