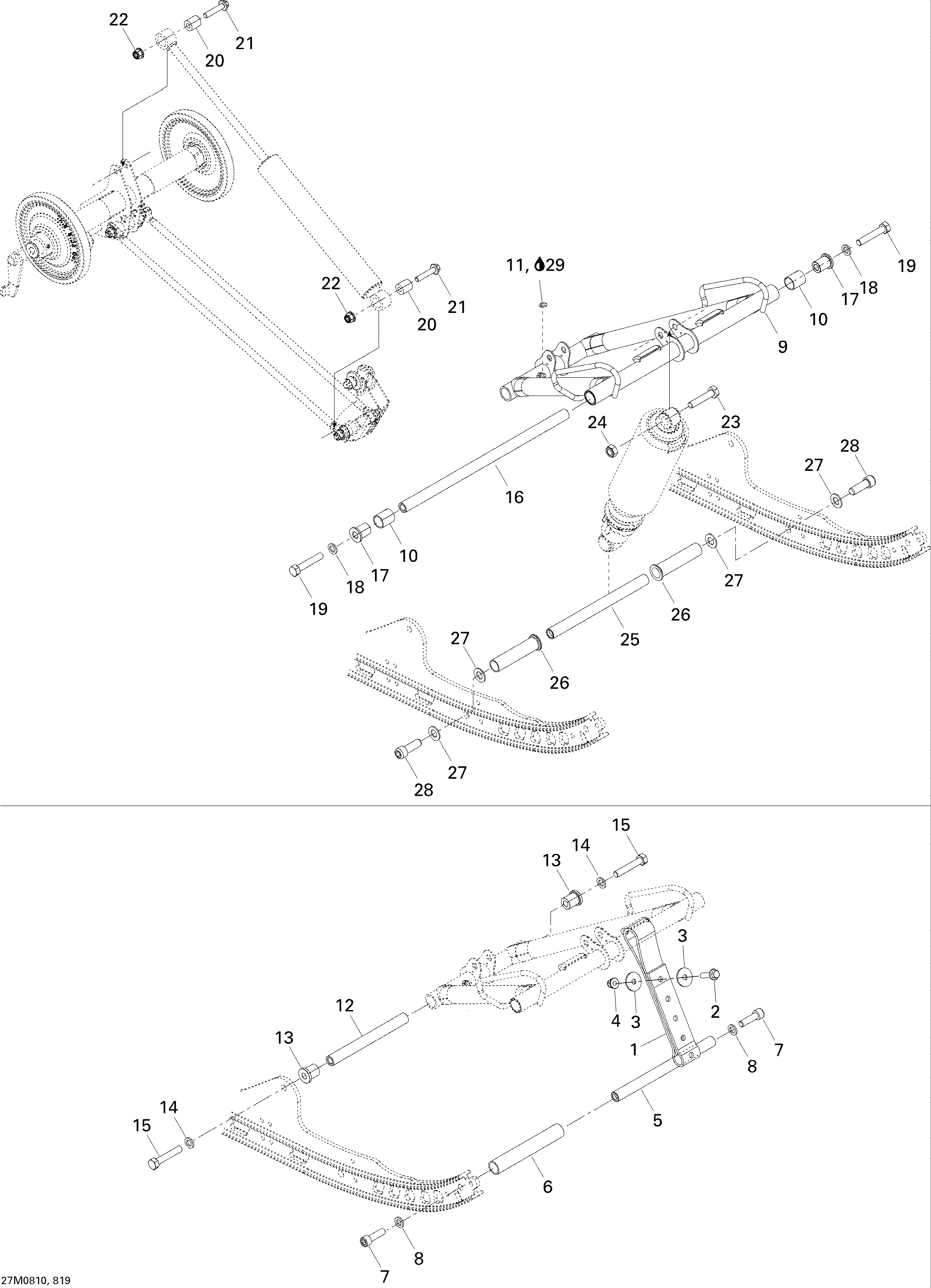

08- Front Arm для BRP Ski-Doo Skandic Tundra LT 550F - 2008
-
№АртикулНазвание
-
1503191365 Stopper StrapStopper Strap
-
2207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
3224081301 Flat WasherFlat Washer
-
4233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
5503191260 Axle StrapAxle Strap
-
6503191448 SpacerSpacer
-
7205503544 Socket Head Screw M10 X 35, Scotch GripSocket Head Screw M10 X 35, Scotch Grip
-
8503189564 WasherWasher
-
9503191752 Welded Front ArmWelded Front Arm
-
10503191556 Extended BushingExtended Bushing
-
11408200700 Grease FittingGrease Fitting
-
12503191279 Lower ShaftLower Shaft
-
13503189324 CushionCushion
-
14503189564 WasherWasher
-
15207205586 Hex. Screw Scotch GripHex. Screw Scotch Grip
-
16503191215 Upper ShaftUpper Shaft
-
17503191262 BushingBushing
-
18503189564 WasherWasher
-
19207205586 Hex. Screw Scotch GripHex. Screw Scotch Grip
-
20414936000 CushionCushion
-
21207684044 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
22233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
23207005044 Hex. Screw M10 X 50Hex. Screw M10 X 50
-
24232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
25503191258 Center Shock ShaftCenter Shock Shaft
-
26503191259 Center BushingCenter Bushing
-
27503189276 WasherWasher
-
28205523544 Socket Head Screw M12 X 35, Scotch GripSocket Head Screw M12 X 35, Scotch Grip
-
29219700417 Synthetic Grease, 400 gSynthetic Grease, 400 g
