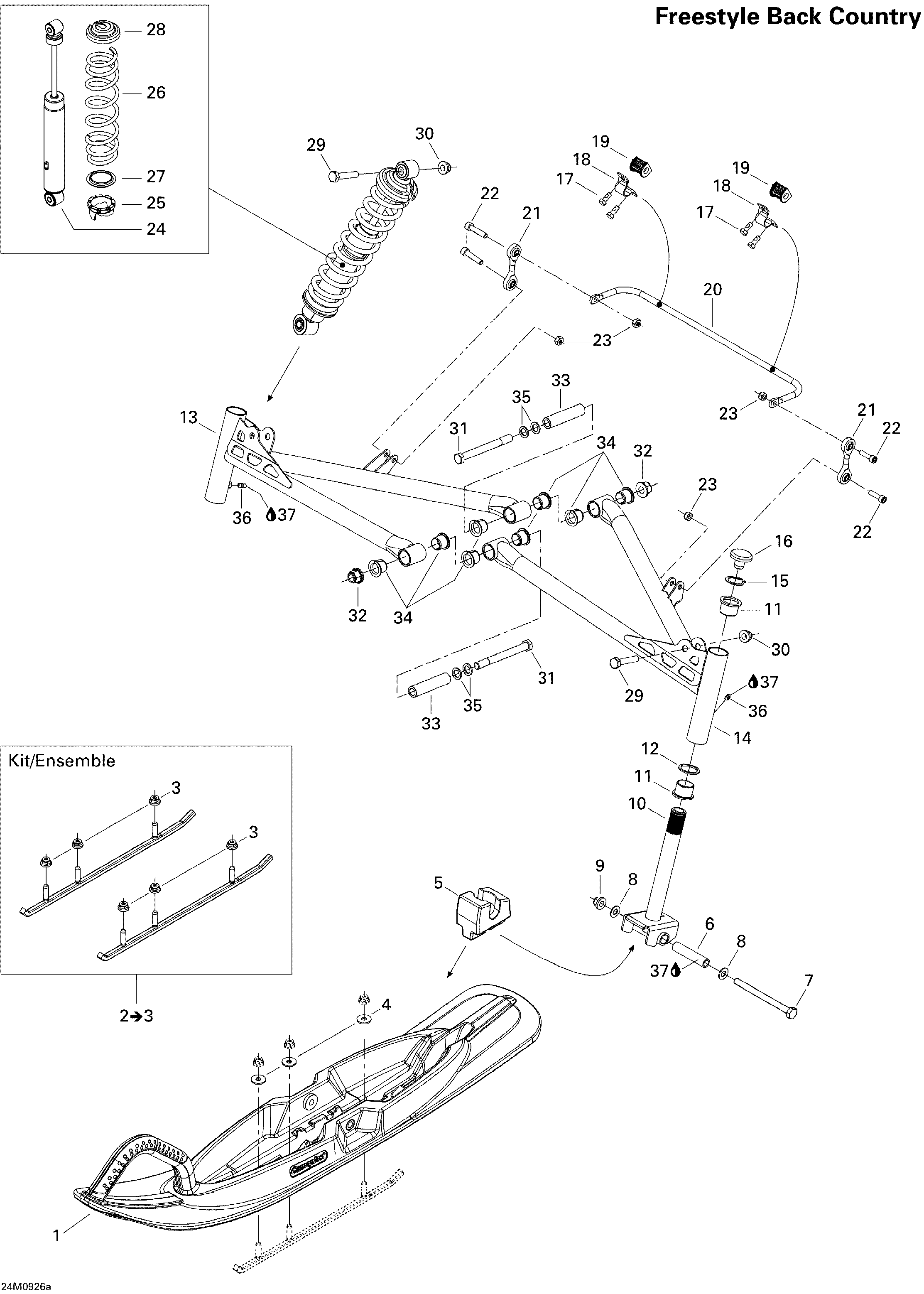

07- Front Suspension And Ski CU для BRP Ski-Doo Freestyle Back Country - 2009
-
№АртикулНазвание
-
1505072020 Large ''Blow Mold'' SkiLarge ''Blow Mold'' Ski
-
2860512100 Carbide Runner Kit. Includes 2 to 3Carbide Runner Kit. Includes 2 to 3
-
3233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
4234082410 Flat Washer 8 mmFlat Washer 8 mm
-
5505072018 Ski StopperSki Stopper
-
6506133300 SpacerSpacer
-
7230003044 Hex. Screw M10 X 130Hex. Screw M10 X 130
-
8224002251 Flat WasherFlat Washer
-
9232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
10505072001 Ski LegSki Leg
-
11505070003 CushionCushion
-
12505070004 WasherWasher
-
13505071739 RH Lower ArmRH Lower Arm
-
14505071740 LH Lower ArmLH Lower Arm
-
15371910400 CirclipCirclip
-
16572091300 CapCap
-
17250000281 Hexagonal Cap ScrewHexagonal Cap Screw
-
18506095800 ClampClamp
-
19505072225 Torsion BushingTorsion Bushing
-
20505072226 StabilisatorStabilisator
-
21505071479 Ball JointBall Joint
-
22205083544 Socket Head Screw M8 X 35Socket Head Screw M8 X 35
-
23232581414 Hex. Elastic Nut M8Hex. Elastic Nut M8
-
24505072191 Front ShockFront Shock
-
25505070150 Adjustment CamAdjustment Cam
-
26505071833 SpringSpring
-
27503191872 Spring GuideSpring Guide
-
28706200881 Spring StopperSpring Stopper
-
29207005544 Hex. Screw M10 X 55Hex. Screw M10 X 55
-
30233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
31230022044 Hex. Screw M12 X 120Hex. Screw M12 X 120
-
32233221414 Hex. Flanged Elastic Nut M12Hex. Flanged Elastic Nut M12
-
33505071366 BushingBushing
-
34505072094 BushingBushing
-
35503189276 WasherWasher
-
36408200700 Grease FittingGrease Fitting
-
37219700417 Synthetic Grease, 400 gSynthetic Grease, 400 g
