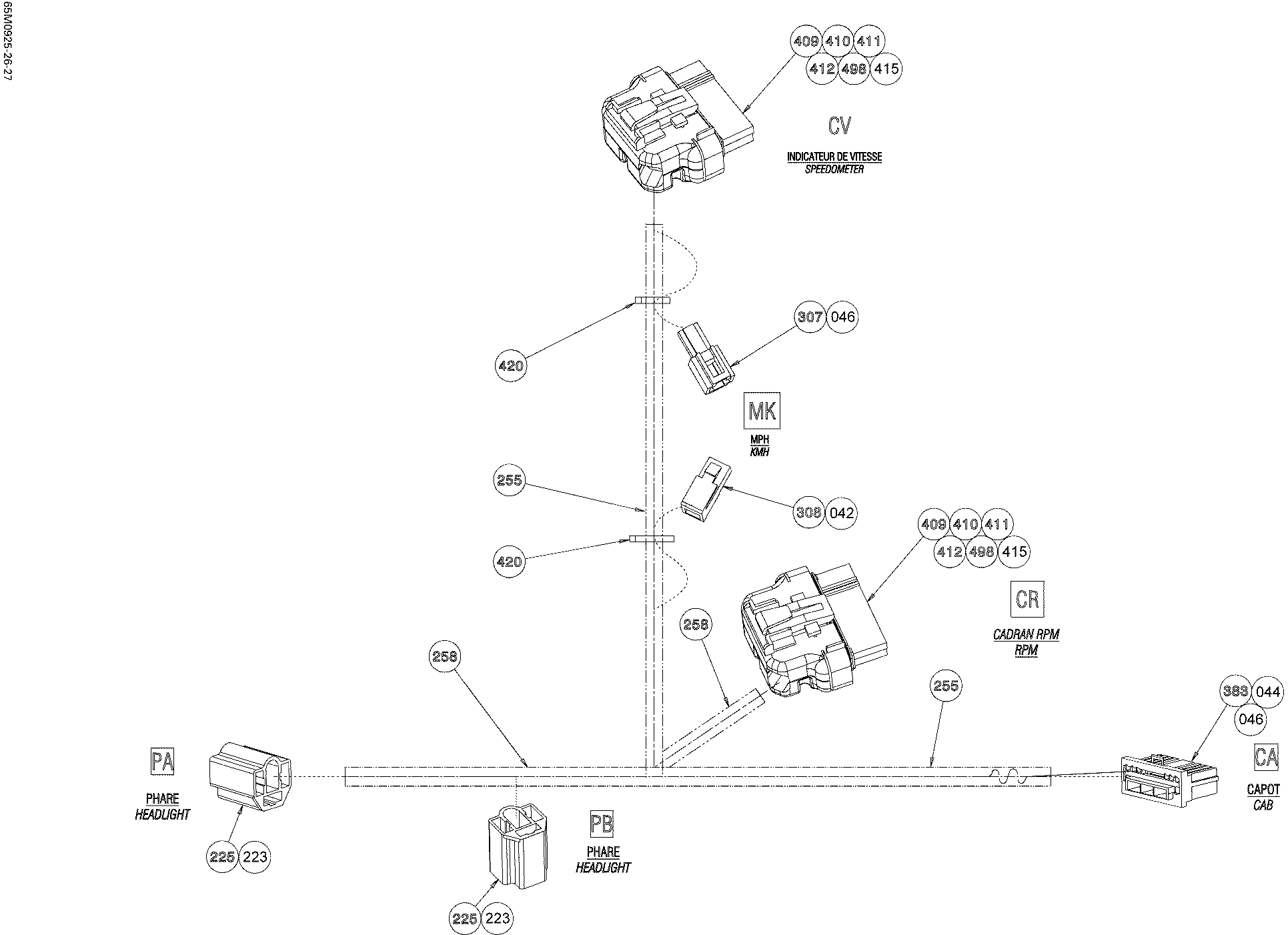

10- Electrical Harness, Hood для BRP Ski-Doo Freestyle Back Country - 2009
-
№АртикулНазвание
-
1515176437 Wiring Harness. Includes 1 to 498Wiring Harness. Includes 1 to 498
-
42515175273 Male TerminalMale Terminal
-
44515175231 Female TerminalFemale Terminal
-
46515175282 Female TerminalFemale Terminal
-
223515175320 Female TerminalFemale Terminal
-
225409202700 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
255409901800 Tubing 13 mmTubing 13 mm
-
258415079900 Tubing 10 mmTubing 10 mm
-
307515175509 Male Terminal Housing, 1 CircuitMale Terminal Housing, 1 Circuit
-
308515175510 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
383515175719 Female Terminal Housing, 11 CircuitsFemale Terminal Housing, 11 Circuits
-
409515175812 PlugPlug
-
410515175801 Female Housing, 24 CircuitsFemale Housing, 24 Circuits
-
411515175802 Retainer BlockRetainer Block
-
412515175803 Wire SealWire Seal
-
415515175806 Female TerminalFemale Terminal
-
420414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
498710000399 Female HousingFemale Housing
