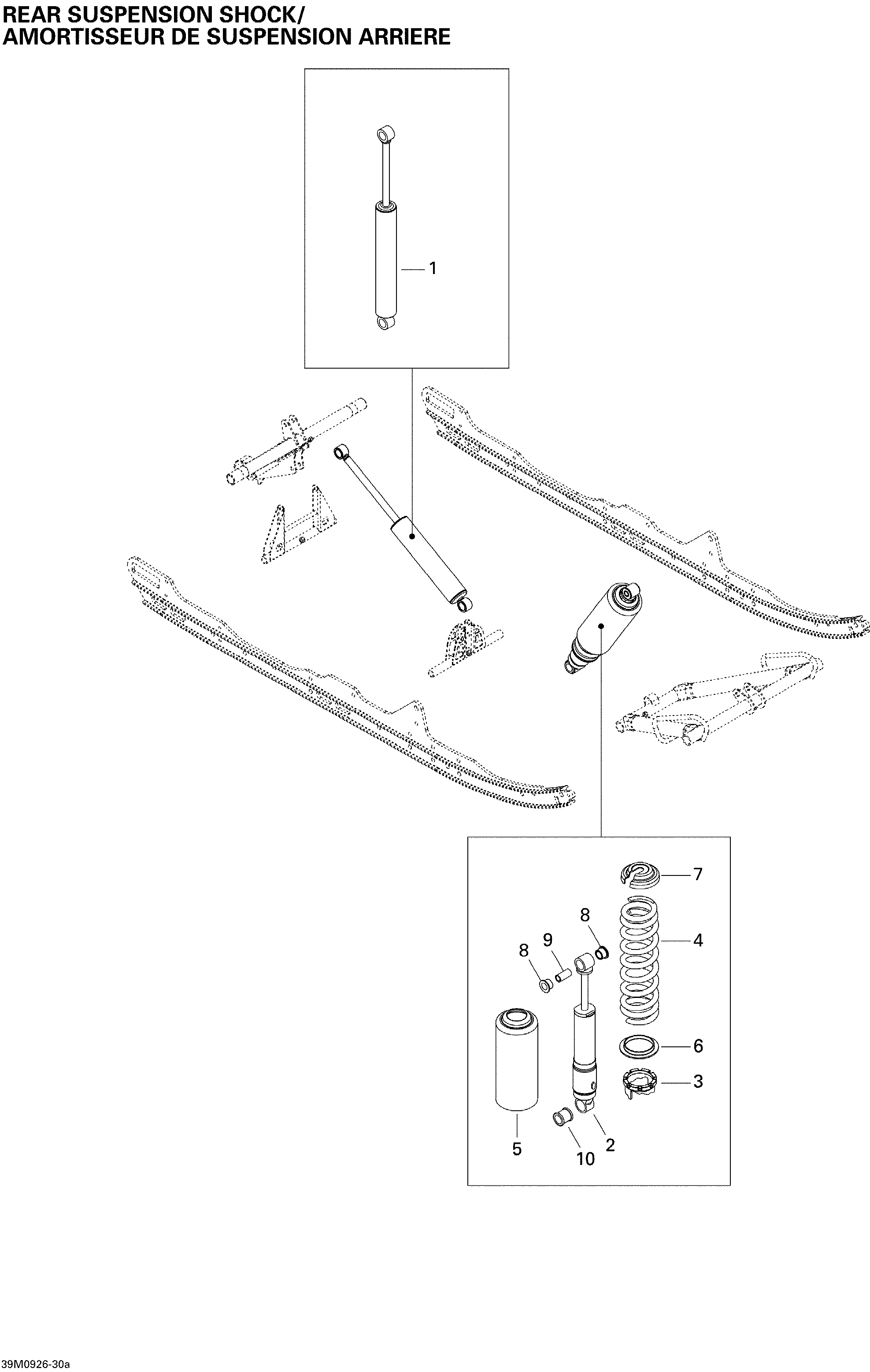

08- Rear Suspension Shocks для BRP Ski-Doo Freestyle Back Country - 2009
-
№АртикулНазвание
-
1503191228 Rear Shock. Except EuropeRear Shock. Except Europe
-
1503191229 Rear Shock. EuropeRear Shock. Europe
-
2503190664 Center ShockCenter Shock
-
3505070150 Adjustment CamAdjustment Cam
-
4503191356 Spring. Except EuropeSpring. Except Europe
-
4503191135 Spring. EuropeSpring. Europe
-
5503191126 ProtectorProtector
-
6503191872 Spring GuideSpring Guide
-
7706200881 Spring StopperSpring Stopper
-
8503189117 CushionCushion
-
9503189282 BushingBushing
-
10503189271 CushionCushion
