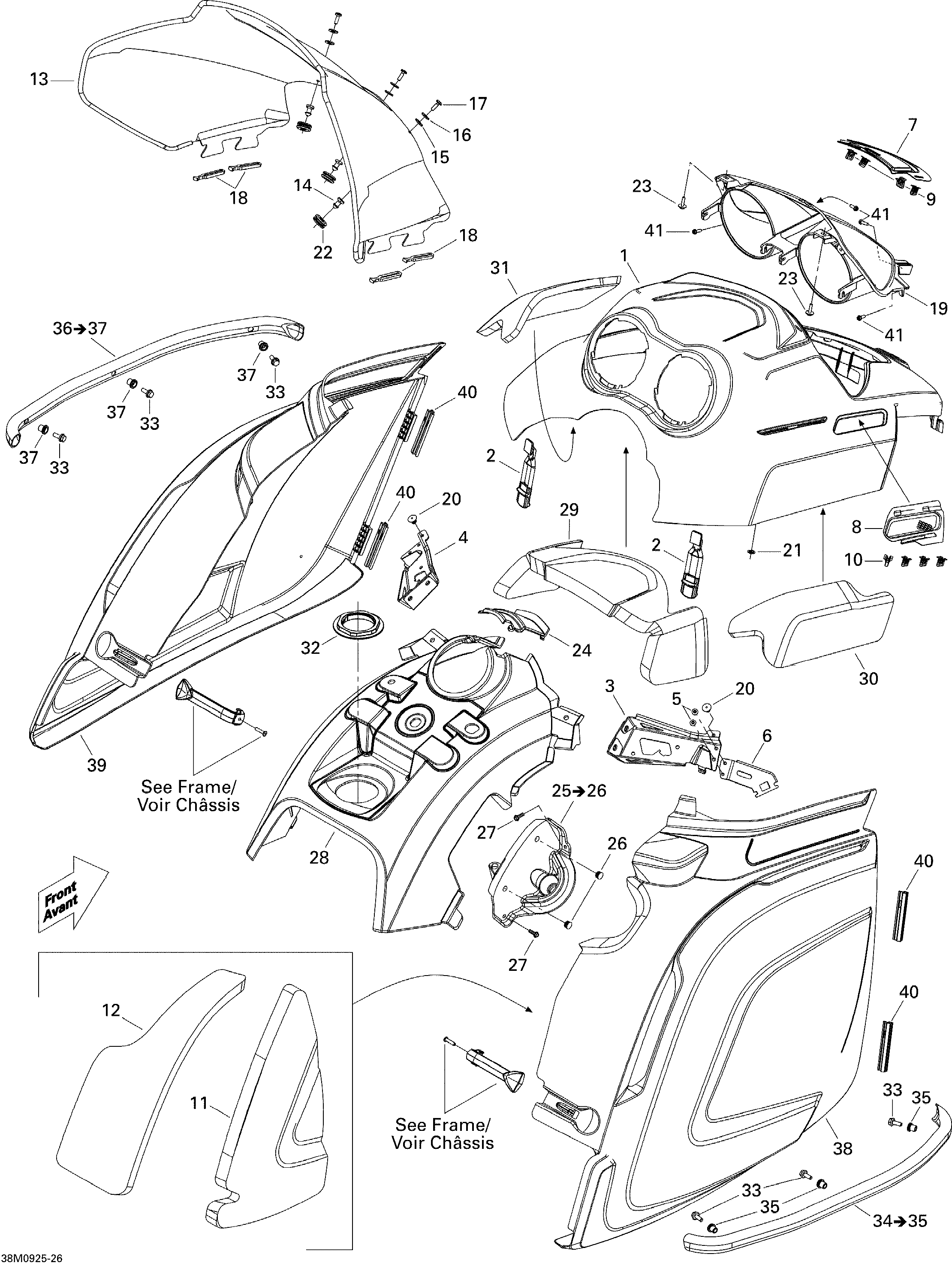

09- Hood для BRP Ski-Doo Freestyle Back Country - 2009
-
№АртикулНазвание
-
1517303585 HoodHood
-
2517303518 LatchLatch
-
3517303662 RH BracketRH Bracket
-
4517303663 LH BracketLH Bracket
-
5390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
6517303517 BracketBracket
-
7517303331 Center Hood GrillCenter Hood Grill
-
8517303586 RH Hood GrillRH Hood Grill
-
9517302785 ClipClip
-
10517302785 ClipClip
-
11517303456 RH Panel Foam, FrontRH Panel Foam, Front
-
12517303457 RH Panel Foam, RearRH Panel Foam, Rear
-
13517303348 Windshield, MediumWindshield, Medium
-
14517303439 KnobKnob
-
15250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
16250200025 Washer M5Washer M5
-
17250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
18570023800 Windshield LatchWindshield Latch
-
19517303692 MouldingMoulding
-
20293150103 Pop RivetPop Rivet
-
21732610072 Push NutPush Nut
-
22517302841 GrommetGrommet
-
23250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
24517303458 Console CapConsole Cap
-
25517303482 RH Console. Includes 25 to 26RH Console. Includes 25 to 26
-
26275500241 Cap, BlackCap, Black
-
27241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
28517303349 Center ConsoleCenter Console
-
29517303664 Hood FoamHood Foam
-
30517303486 RH Hood FoamRH Hood Foam
-
31517303487 LH Hood FoamLH Hood Foam
-
32517302575 Console NutConsole Nut
-
33207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
38517303644 RH PanelRH Panel
-
39517303540 LH PanelLH Panel
-
40517302823 Hinge LockHinge Lock
-
41250000068 Hex. Tapping Screw #8 X 5/8''Hex. Tapping Screw #8 X 5/8''
