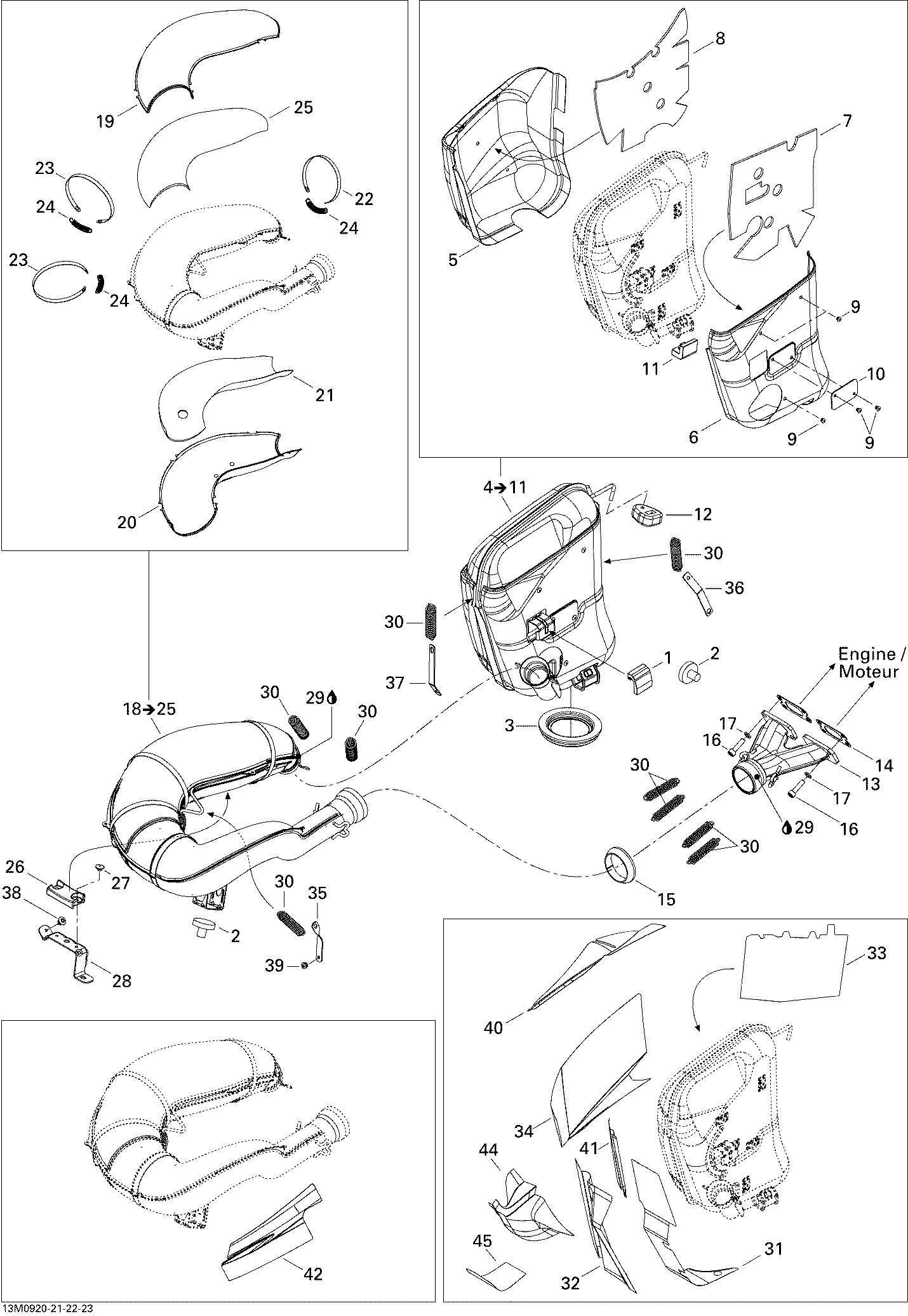

01- Exhaust System для BRP Ski-Doo GSX Fan - 2009
-
№АртикулНазвание
-
1514053372 Upper StopperUpper Stopper
-
2514053654 Rubber BumperRubber Bumper
-
3514054240 Exhaust GrommetExhaust Grommet
-
4514054099 Muffler Ass'y. Includes 4 to 11Muffler Ass'y. Includes 4 to 11
-
5514054100 RH DeflectorRH Deflector
-
6514053843 Heat Deflector LHHeat Deflector LH
-
7514053844 Insulating Wool LHInsulating Wool LH
-
8514053947 Insulating Wool RHInsulating Wool RH
-
9390910000 Pop Rivet 3/16''Pop Rivet 3/16''
-
10514053429 ReinforcementReinforcement
-
11514054223 Lower StopperLower Stopper
-
12514052704 Rubber BumperRubber Bumper
-
13420673065 Exhaust ManifoldExhaust Manifold
-
14420831849 Gasket 1.0 mmGasket 1.0 mm
-
15514053644 Exhaust GasketExhaust Gasket
-
16205083044 Socket Head Screw M8 X 30Socket Head Screw M8 X 30
-
17514053837 WasherWasher
-
18514053848 Tuned Pipe Ass'y. Includes 18 to 25Tuned Pipe Ass'y. Includes 18 to 25
-
19514053852 Rear Upper Half-enveloppeRear Upper Half-enveloppe
-
20514053853 Rear Lower Half-enveloppeRear Lower Half-enveloppe
-
21514053854 Lower Insulating WoolLower Insulating Wool
-
22514053501 Retaining StrapRetaining Strap
-
23514053512 Retaining StrapRetaining Strap
-
24514053643 SpringSpring
-
25514053987 Upper Insulating WoolUpper Insulating Wool
-
26514053352 BumperBumper
-
27293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
28514054039 Bumper SupportBumper Support
-
29293800090 Sealant, Loctite, 80 mlSealant, Loctite, 80 ml
-
30415107100 SpringSpring
-
31514053560 Reflective SheetReflective Sheet
-
33514054350 Reflective SheetReflective Sheet
-
34514053562 Reflective SheetReflective Sheet
-
35514053955 Spring BracketSpring Bracket
-
36514053725 Spring BracketSpring Bracket
-
37514053393 Spring BracketSpring Bracket
-
38293150103 Pop RivetPop Rivet
-
39390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
40514053673 Reflective SheetReflective Sheet
-
41514054012 Reflective SheetReflective Sheet
-
42514054013 Reflective SheetReflective Sheet
