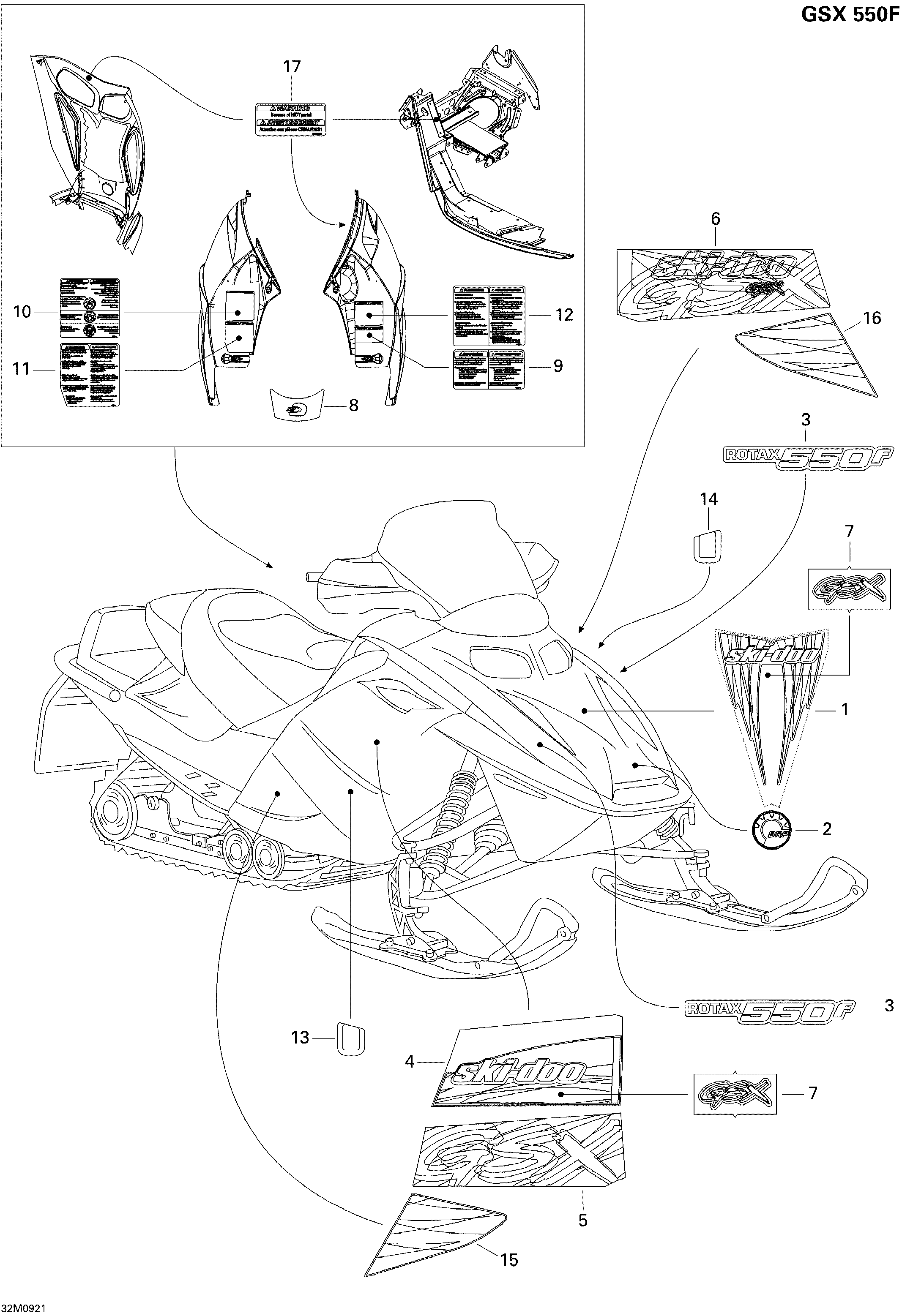

09- Decals для BRP Ski-Doo GSX Fan - 2009
-
№АртикулНазвание
-
1516003373 Hood DecalHood Decal
-
2219902468 BRP Logo, 48 mmBRP Logo, 48 mm
-
3516003410 Hood Decal, Rotax 550FHood Decal, Rotax 550F
-
4516003128 RH Side DecalRH Side Decal
-
5516003130 RH Lower Side DecalRH Lower Side Decal
-
6516003217 LH Lower Side DecalLH Lower Side Decal
-
7516003490 RH Hood Decal, GSXRH Hood Decal, GSX
-
8516001775 Visor DecalVisor Decal
-
9516003026 Security Label, Passenger NumberSecurity Label, Passenger Number
-
10516002908 Security Label, GeneralSecurity Label, General
-
11516003029 Security Label, FamiliarizationSecurity Label, Familiarization
-
12516003024 Security Label, StartingSecurity Label, Starting
-
13516001910 RH Protector DecalRH Protector Decal
-
14516001911 LH Protector DecalLH Protector Decal
-
15516003133 RH Rear Lower DecalRH Rear Lower Decal
-
16516003132 LH Rear Lower DecalLH Rear Lower Decal
-
17516002965 Warning Decal, Hot PartsWarning Decal, Hot Parts
