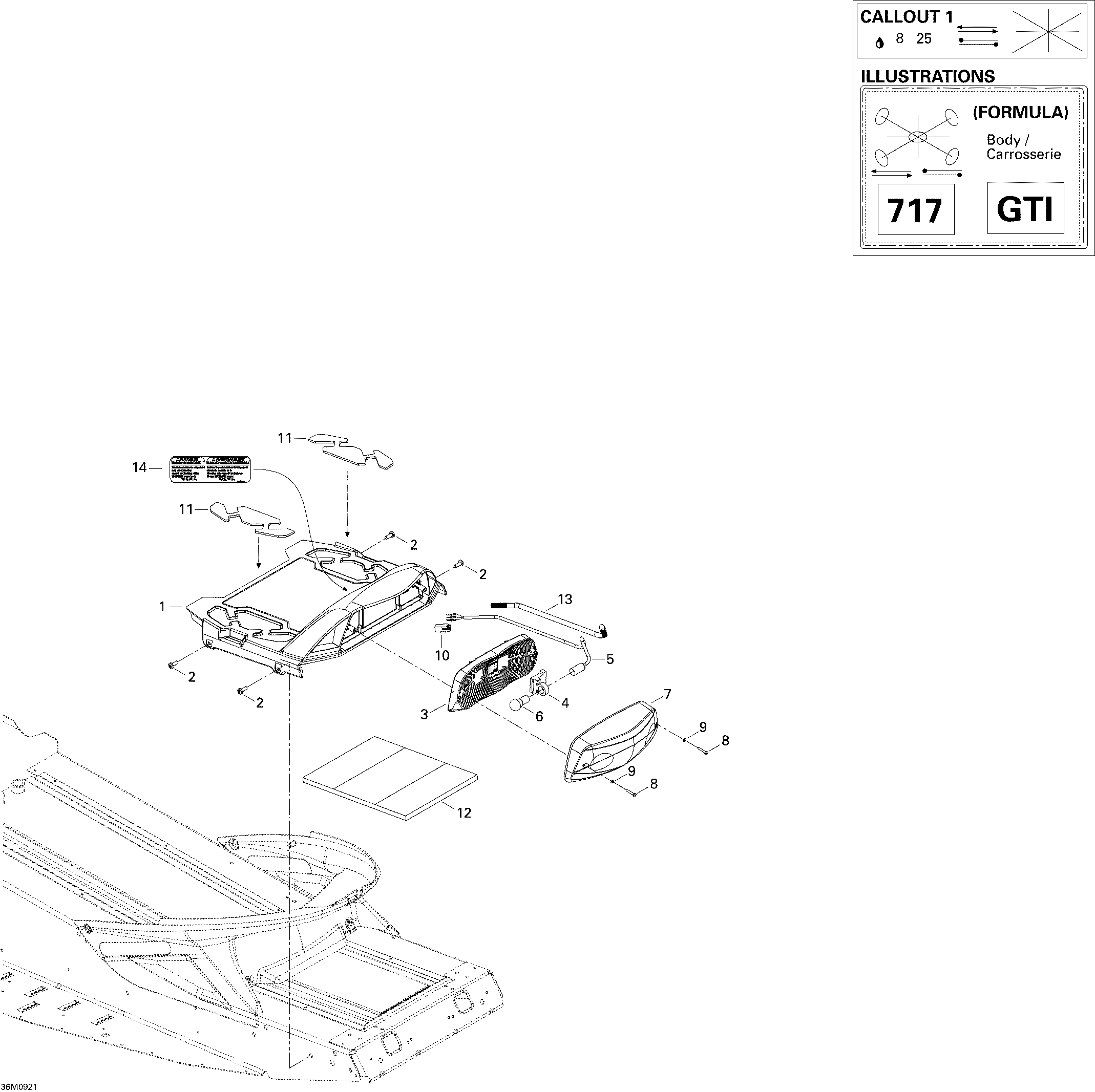

09- Luggage Rack для BRP Ski-Doo GSX Fan - 2009
-
№АртикулНазвание
-
1511000434 Luggage RackLuggage Rack
-
2250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
3510004442 ReflectorReflector
-
4511000431 Bulb SupportBulb Support
-
5511000465 Bulb SocketBulb Socket
-
6520000758 BulbBulb
-
7511000315 LensLens
-
8209632580 Phillips Tapping Screw 3.9 X 25Phillips Tapping Screw 3.9 X 25
-
9414516400 WasherWasher
-
10515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
11520000481 Rear CarpetRear Carpet
-
12511000359 Radiator Cover Shim 121''Radiator Cover Shim 121''
-
13515175442 Tubing 6 mmTubing 6 mm
-
14516002960 Warning Label, Maximum Cargo LoadWarning Label, Maximum Cargo Load
