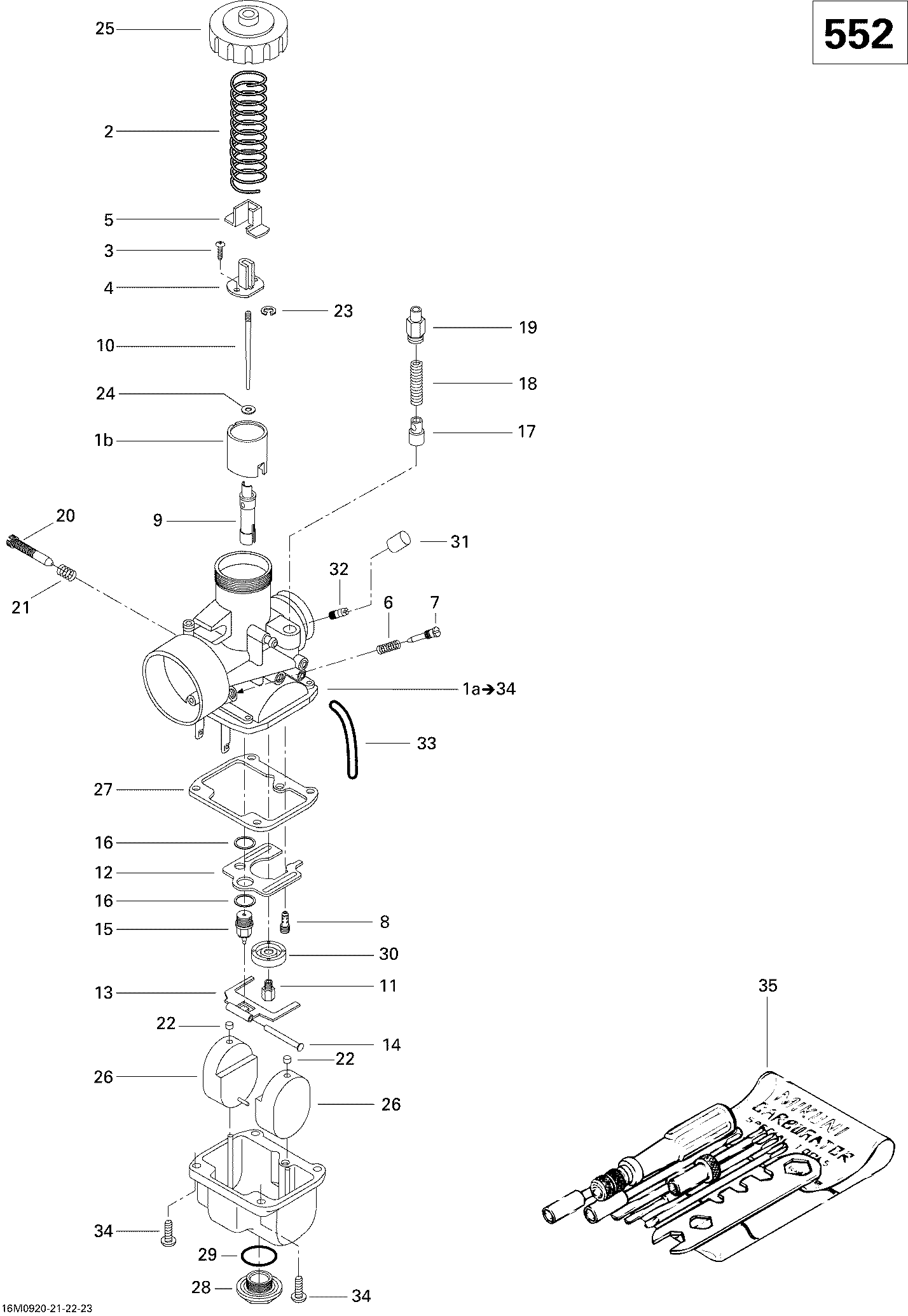

02- Carburetor для BRP Ski-Doo GSX Fan - 2009
-
№АртикулНазвание
-
1a403138772 Carburetor VM34-617. Includes 1a to 34Carburetor VM34-617. Includes 1a to 34
-
1b404128400 Piston Valve 2.5Piston Valve 2.5
-
2404154800 SpringSpring
-
3404121300 Screw With WasherScrew With Washer
-
4404161987 PackingPacking
-
5404122100 CoverCover
-
6404139800 SpringSpring
-
7404149000 Air ScrewAir Screw
-
8404109400 Pilot Jet 45Pilot Jet 45
-
9404162072 Needle Jet 159-P-7Needle Jet 159-P-7
-
10404162032 Needle J8-6BCY40Needle J8-6BCY40
-
11404100600 Main Jet 260Main Jet 260
-
12404109600 BaffleBaffle
-
13404107600 Float LeverFloat Lever
-
14404103300 Lever PinLever Pin
-
15404147500 Needle Valve 1.2Needle Valve 1.2
-
16404101600 Seat WasherSeat Washer
-
17404161986 Plunger Ass'yPlunger Ass'y
-
18404127400 SpringSpring
-
19404161100 Guide HolderGuide Holder
-
20404125200 Throttle ScrewThrottle Screw
-
21404101700 SpringSpring
-
22404105800 CapCap
-
23404152400 E-RingE-Ring
-
24404117000 PackingPacking
-
25404103700 CoverCover
-
27404104200 GasketGasket
-
28404107400 Drain Plug ScrewDrain Plug Screw
-
29404107300 O-RingO-Ring
-
30404110900 Baffle RingBaffle Ring
-
31404156600 CapCap
-
32404153400 NippleNipple
-
33404161888 HoseHose
-
34404102000 Screw With Lock WasherScrew With Lock Washer
-
35404112000 Tool KitTool Kit
