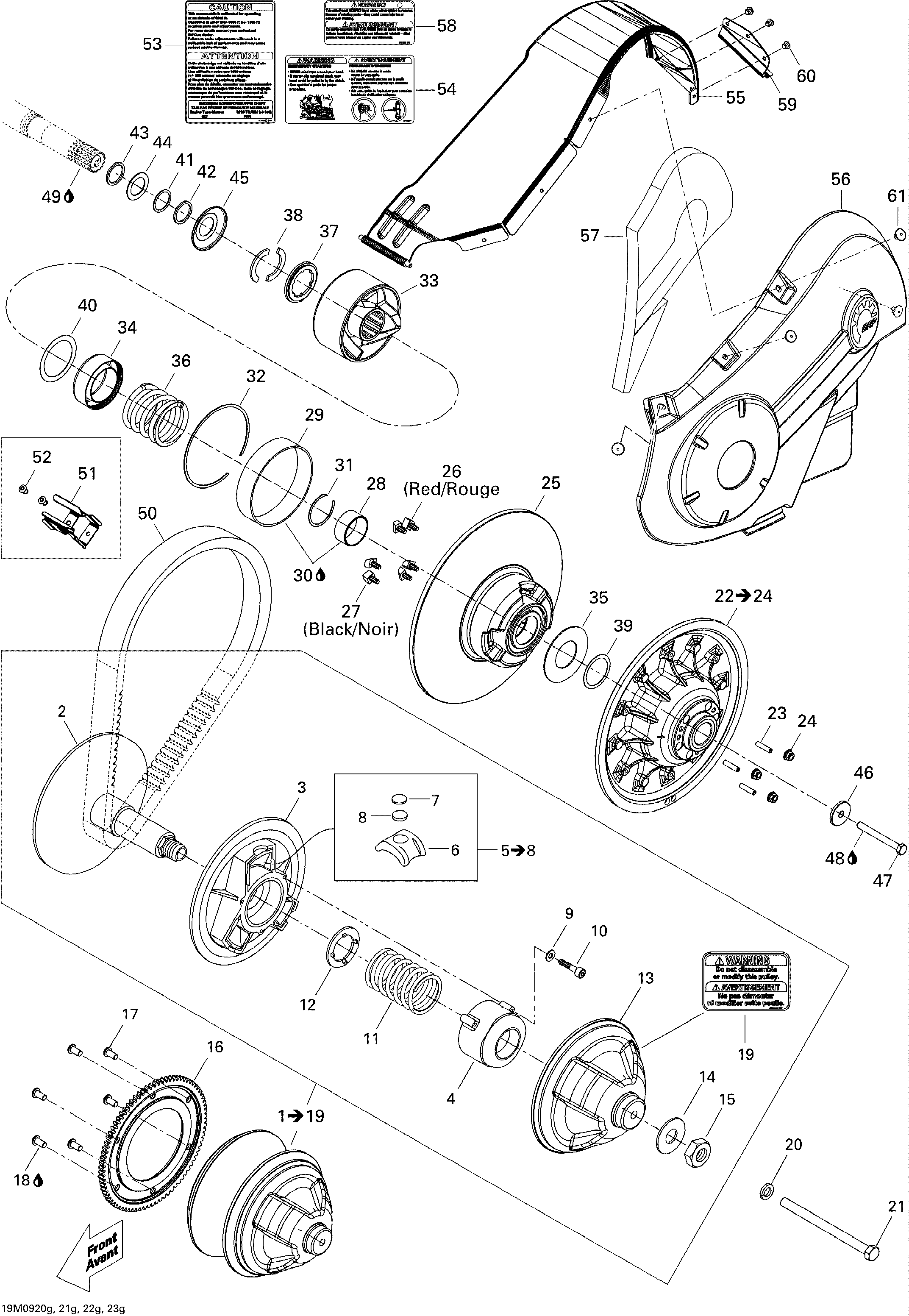

05- Pulley System для BRP Ski-Doo GTX Fan - 2009
-
№АртикулНазвание
-
2415128975 Inner FlangeInner Flange
-
3417126692 Sliding FlangeSliding Flange
-
4415128602 Spring CoverSpring Cover
-
5415128932 Unit. Includes 5 to 8Unit. Includes 5 to 8
-
6417118100 Centrifuge BlockCentrifuge Block
-
7417120400 Adjustment WeighAdjustment Weigh
-
7417114400 Adjustment WeighAdjustment Weigh
-
8417114500 CapsuleCapsule
-
9420245370 WasherWasher
-
10415128606 Socket Head Screw M6 X 35Socket Head Screw M6 X 35
-
11415128933 Spring, blue / OrangeSpring, blue / Orange
-
12417126694 Spring SeatSpring Seat
-
13415128609 CapCap
-
14415128610 WasherWasher
-
15417118300 NutNut
-
16417222833 Ring GearRing Gear
-
17236281684 Hex. Screw M8 X 16Hex. Screw M8 X 16
-
18293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
19516001726 Security LabelSecurity Label
-
20392002800 Lock Spring WasherLock Spring Washer
-
21417113800 BoltBolt
-
22417127024 Fixed Flanged Ass'y. Includes 22 to 32Fixed Flanged Ass'y. Includes 22 to 32
-
23206262599 Socket Set ScrewSocket Set Screw
-
24233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
25417127026 Sliding Flange Ass'ySliding Flange Ass'y
-
26417126373 Rear Cam Slider Shoe, RedRear Cam Slider Shoe, Red
-
27417126374 Front Cam Slider Shoe, BlackFront Cam Slider Shoe, Black
-
28417126901 BushingBushing
-
29417126902 BushingBushing
-
30413408300 Loctite, Black Max, 3 mlLoctite, Black Max, 3 ml
-
31371911200 CirclipCirclip
-
32417126878 CirclipCirclip
-
33417126830 Cam Ass'yCam Ass'y
-
34417126381 GuardGuard
-
35504099600 Stopper WasherStopper Washer
-
36417127061 SpringSpring
-
37417126733 SpacerSpacer
-
38417126734 Half KeyHalf Key
-
39504112300 ShimShim
-
40417126322 Swivel AbutmentSwivel Abutment
-
41417300252 SpacerSpacer
-
42417300265 SpacerSpacer
-
43417300252 SpacerSpacer
-
44504112000 ShimShim
-
45417300238 ProtectorProtector
-
46517302322 Strength WasherStrength Washer
-
47207087544 Hex. Screw M8 X 75Hex. Screw M8 X 75
-
48293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
49293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
50415060600 Drive BeltDrive Belt
-
51517281905 BracketBracket
-
52390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
54516002674 Emergency Starting LabelEmergency Starting Label
-
55417300269 Belt GuardBelt Guard
-
56417300301 Side Protector Ass'y. Includes 56 to 57Side Protector Ass'y. Includes 56 to 57
-
57417300246 FoamFoam
-
58516002670 Security Label, Belt GuardSecurity Label, Belt Guard
-
59417300216 Belt Guard BracketBelt Guard Bracket
-
60390909200 Avex RivetAvex Rivet
-
61293150103 Pop RivetPop Rivet
