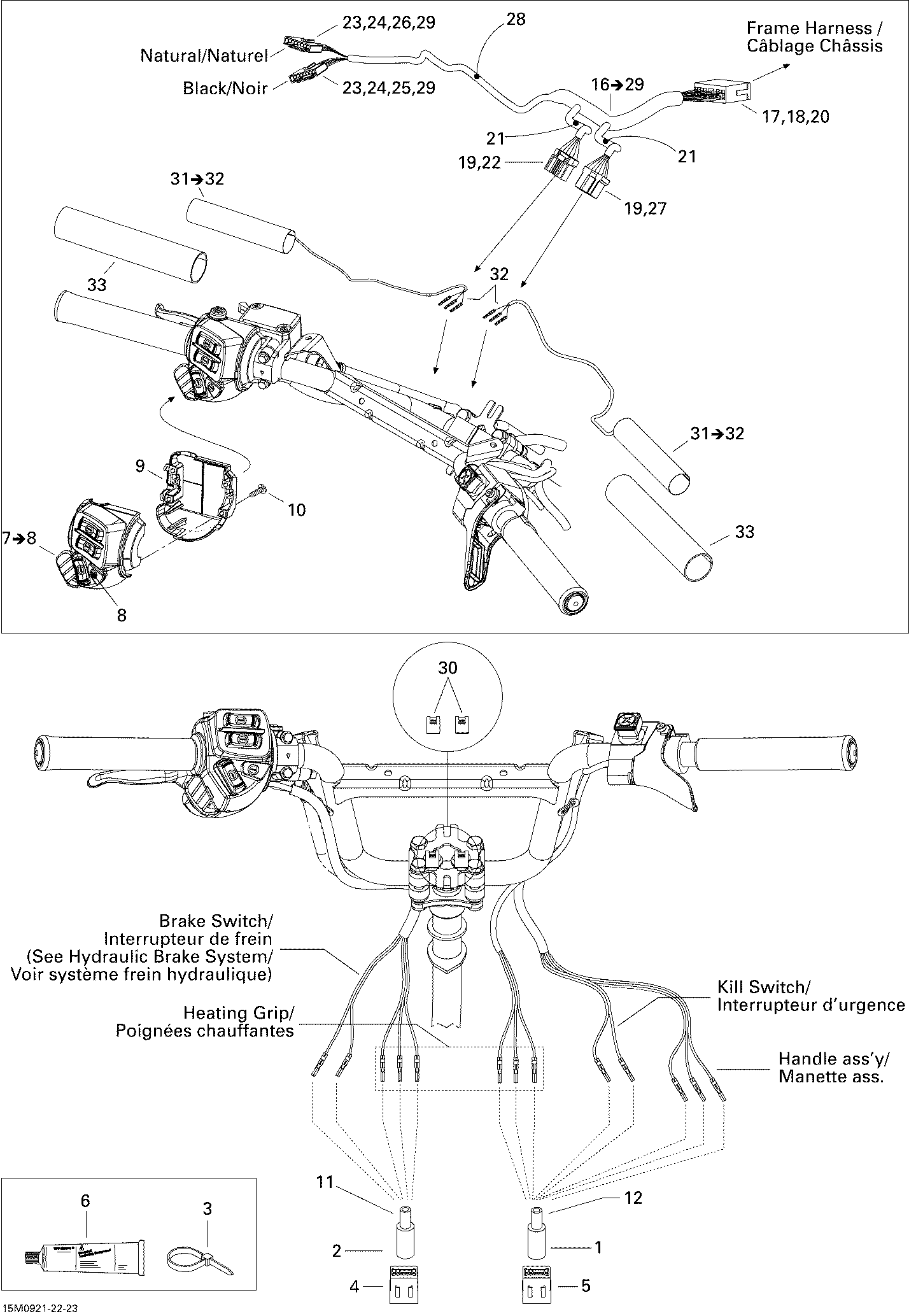

10- Steering Wiring Harness для BRP Ski-Doo GTX Fan - 2009
-
№АртикулНазвание
-
1515175830 Low Temperature Tubing 1/2''Low Temperature Tubing 1/2''
-
2515175830 Low Temperature Tubing 1/2''Low Temperature Tubing 1/2''
-
3414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
3293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
3293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
3293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
4515175662 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
5515175817 Male Terminal Housing, 8 CircuitsMale Terminal Housing, 8 Circuits
-
6293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
7515176187 LH Switch Housing. Includes 7 to 8LH Switch Housing. Includes 7 to 8
-
8515176088 Start/RER ButtonStart/RER Button
-
9515175926 Housing Switch PlateHousing Switch Plate
-
10250000263 Torx Screw #8-18Torx Screw #8-18
-
11409902200 Tubing 25 mmTubing 25 mm
-
12409902200 Tubing 25 mmTubing 25 mm
-
16515176309 Steering Wiring Harness. Includes 16 to 29Steering Wiring Harness. Includes 16 to 29
-
17515175232 Male TerminalMale Terminal
-
18515175273 Male TerminalMale Terminal
-
19515175231 Female TerminalFemale Terminal
-
20515175352 Male Terminal Housing, 13 CircuitsMale Terminal Housing, 13 Circuits
-
21415079900 Tubing 10 mmTubing 10 mm
-
22515175543 Female Terminal Housing, 6 CircuitsFemale Terminal Housing, 6 Circuits
-
23515175808 Female TerminalFemale Terminal
-
24515175809 Femelle Lock, 8 CircuitsFemelle Lock, 8 Circuits
-
25515175807 Female Terminal Housing 8 Circuits BlackFemale Terminal Housing 8 Circuits Black
-
26515175810 Female Terminal Housing, 8 CircuitsFemale Terminal Housing, 8 Circuits
-
27515175819 Female Terminal Housing, 8 CircuitsFemale Terminal Housing, 8 Circuits
-
28515175830 Low Temperature Tubing 1/2''Low Temperature Tubing 1/2''
-
29515175941 Female TerminalFemale Terminal
-
30515175944 Housing SupportHousing Support
-
31506152422 Heating Element. Includes 31 to 32Heating Element. Includes 31 to 32
-
32515175232 Male TerminalMale Terminal
-
33506152423 InsulantInsulant
