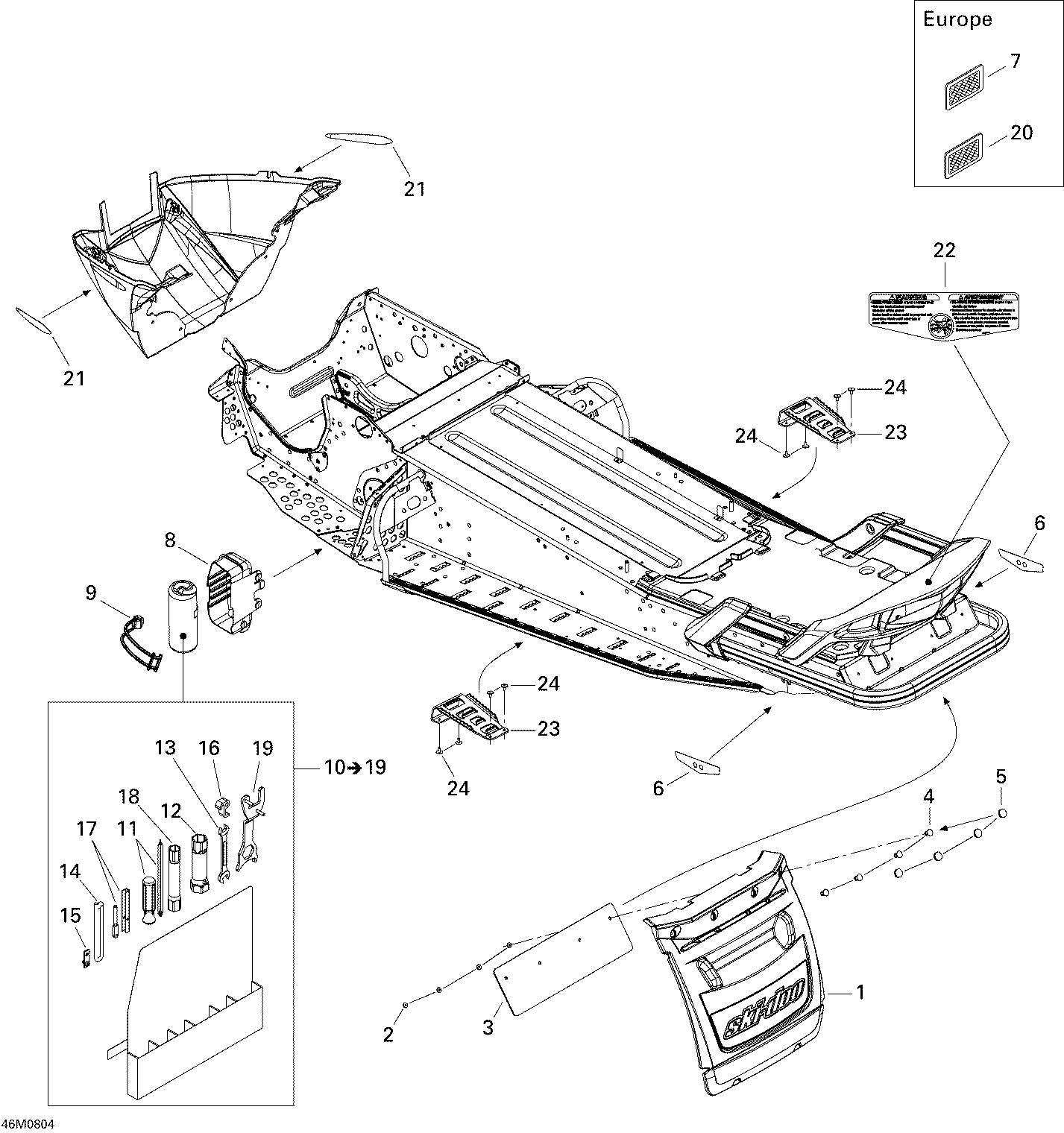

09- Utilities для BRP Ski-Doo GTX Fan - 2009
-
№АртикулНазвание
-
1520000502 Snow GuardSnow Guard
-
2517225900 Flat WasherFlat Washer
-
3520000423 Snow Guard ReinforcementSnow Guard Reinforcement
-
4293150087 Pop Rivet 3/16''Pop Rivet 3/16''
-
5277000203 Cap, BlackCap, Black
-
6520000382 Rear Reflector. Except EuropeRear Reflector. Except Europe
-
6520000383 Rear Reflector. EuropeRear Reflector. Europe
-
7520000271 Reflector, Amber. EuropeReflector, Amber. Europe
-
8520000322 TrunkTrunk
-
9520000528 LatchLatch
-
10529000041 Tool Kit. Includes 10 to 19Tool Kit. Includes 10 to 19
-
11529000004 Driver ScrewDriver Screw
-
12529014800 Socket Wrench 21/26 mmSocket Wrench 21/26 mm
-
13529000002 Fork Wrench 10/13 mmFork Wrench 10/13 mm
-
14412500200 Starter Rope 2200 mm, MeterStarter Rope 2200 mm, Meter
-
15529024400 Rope AdaptorRope Adaptor
-
16390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
17529019400 Starter GripStarter Grip
-
18529035501 Spacing ToolSpacing Tool
-
19520000721 WrenchWrench
-
20415037900 Reflector, White. EuropeReflector, White. Europe
-
21516001336 Front ReflectorFront Reflector
-
22516003034 Warning Label, Track SecurityWarning Label, Track Security
-
23520000492 FootrestFootrest
-
24390406500 Pop Rivet 3/16''Pop Rivet 3/16''
