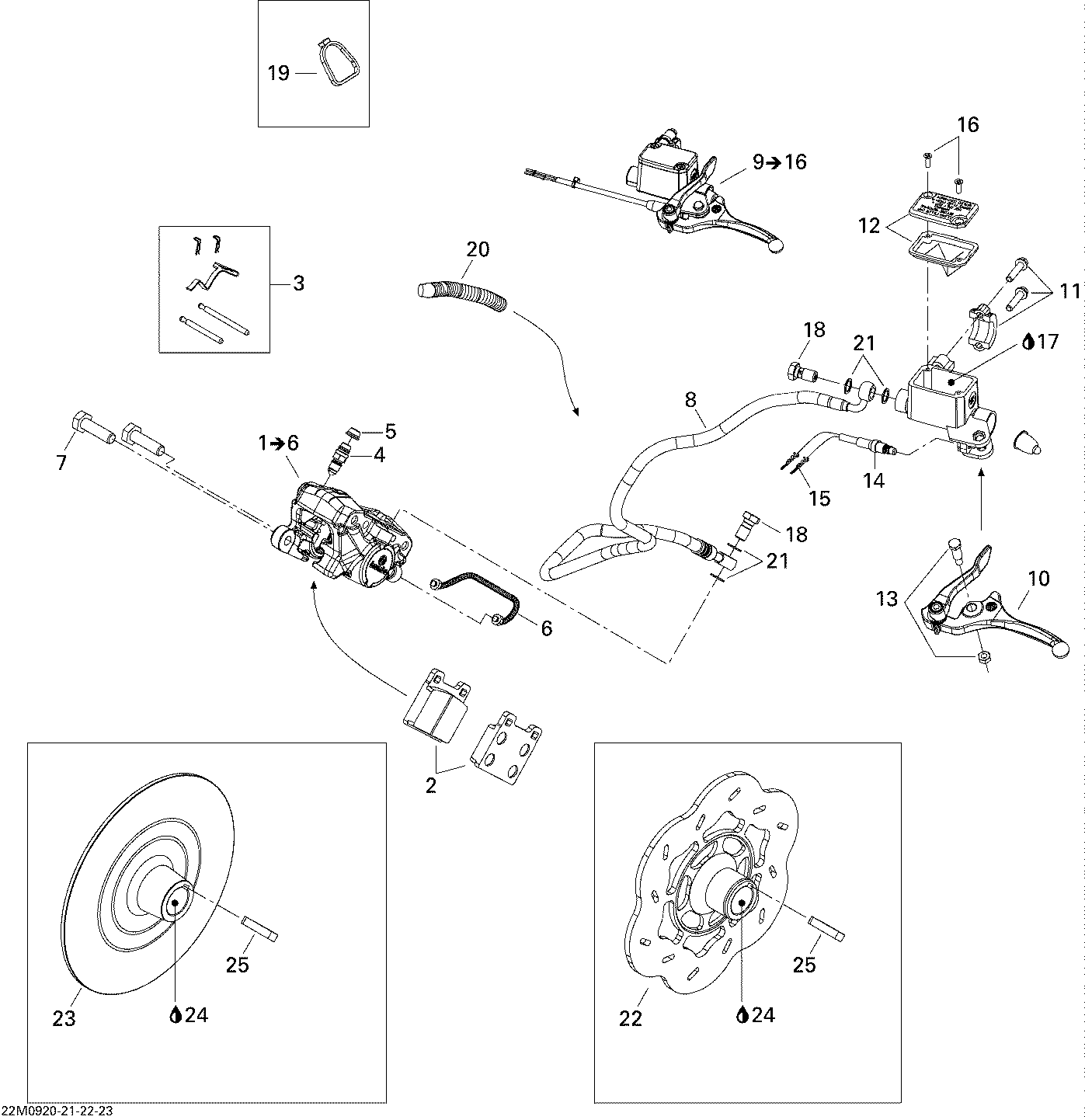

06- Hydraulic Brakes для BRP Ski-Doo GTX Fan - 2009
-
№АртикулНазвание
-
1507032448 Brake Caliper Ass'y. Includes 1 to 6Brake Caliper Ass'y. Includes 1 to 6
-
2415129172 Brake Pad KitBrake Pad Kit
-
3415128865 Kit, Pins, Retainers, SpringKit, Pins, Retainers, Spring
-
4414989800 Bleeder ScrewBleeder Screw
-
5414989700 BootBoot
-
6414989900 Rigid TubingRigid Tubing
-
7205503544 Socket Head Screw M10 X 35, Scotch GripSocket Head Screw M10 X 35, Scotch Grip
-
8507032398 Brake HoseBrake Hose
-
9507032465 Master CylinderMaster Cylinder
-
10415129216 LeverLever
-
11415029800 Clamp Ass'yClamp Ass'y
-
12415029900 CapCap
-
13415030000 Pin Ass'yPin Ass'y
-
14507032366 MicroswitchMicroswitch
-
15515175232 Male TerminalMale Terminal
-
16216141260 Screw M4 X 12Screw M4 X 12
-
17293600062 Brake Fluid, GTLMA, DOT 4 12 X 354 mlBrake Fluid, GTLMA, DOT 4 12 X 354 ml
-
18414920500 Banjo BoltBanjo Bolt
-
19293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
19414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
20415079900 Tubing 10 mmTubing 10 mm
-
21414920600 WasherWasher
-
23507032458 Brake DiskBrake Disk
-
24293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
25507021300 KeyKey
