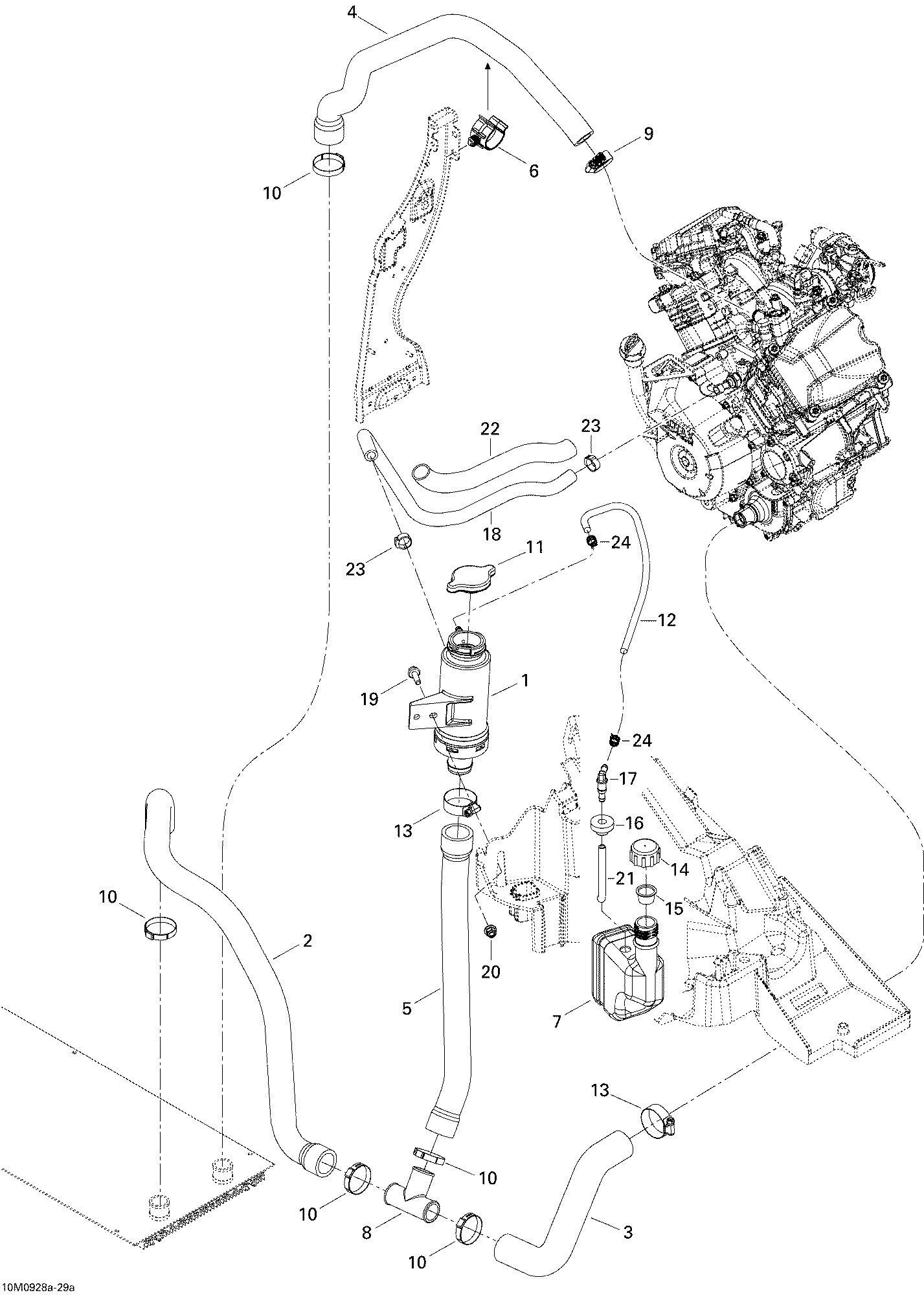

01- Cooling System CU для BRP Ski-Doo Legend Touring - 2009
-
№АртикулНазвание
-
1509000176 Filler Neck Ass'yFiller Neck Ass'y
-
2509000364 T-Fitting HoseT-Fitting Hose
-
3509000365 Pump Inlet HosePump Inlet Hose
-
4509000366 Rear Radiator HoseRear Radiator Hose
-
5509000367 Coolant Tank HoseCoolant Tank Hose
-
6275500526 RetainerRetainer
-
7709200099 Coolant TankCoolant Tank
-
8509000219 T-FittingT-Fitting
-
9293650019 Tridon ClampTridon Clamp
-
10509000045 Oetiker Gear ClampOetiker Gear Clamp
-
11509000187 Pressure CapPressure Cap
-
12415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
13408800400 Tridon Gear ClampTridon Gear Clamp
-
14709200009 Tank CapTank Cap
-
15709200205 Protection CapProtection Cap
-
16570135100 GrommetGrommet
-
17414580600 Elbow Male ConnectorElbow Male Connector
-
18509000407 Hose 8 mmHose 8 mm
-
19207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
20233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
21415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
22415080000 Tubing 16 mmTubing 16 mm
-
23293650140 Oetiker ClampOetiker Clamp
-
24414554800 Spring ClampSpring Clamp
