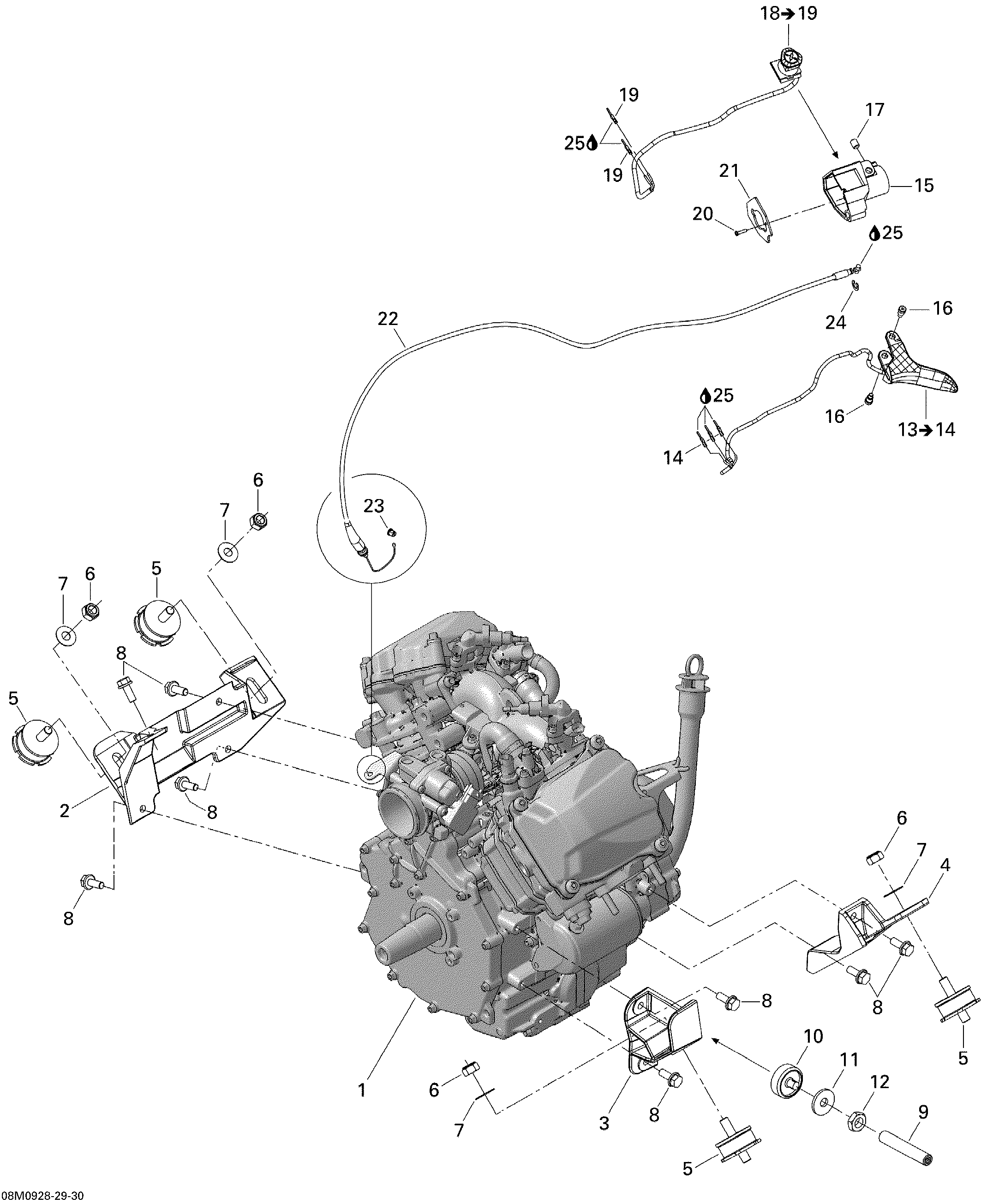

01- Engine And Engine Support для BRP Ski-Doo Legend Touring - 2009
-
№АртикулНазвание
-
1400800319 Engine, V-810 4-TECEngine, V-810 4-TEC
-
2512060076 Front Engine SupportFront Engine Support
-
3512060077 Engine Support, PTO SideEngine Support, PTO Side
-
4512060078 Engine Support, Magneto SideEngine Support, Magneto Side
-
5512059960 Rubber MountRubber Mount
-
6232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
7250200032 WasherWasher
-
8207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
9250500007 Stopper ScrewStopper Screw
-
10512059610 StopperStopper
-
11512059057 WasherWasher
-
12232170411 Hex. Jam Nut M14Hex. Jam Nut M14
-
13512060484 Throttle Handle Ass'y. Includes 13 to 14Throttle Handle Ass'y. Includes 13 to 14
-
14515175232 Male TerminalMale Terminal
-
15512060200 Throttle Handle HousingThrottle Handle Housing
-
16732601143 Flanged ScrewFlanged Screw
-
17414440800 Set Screw M8 X 10Set Screw M8 X 10
-
18515176718 Kill Switch Ass'y. Includes 18 to 19Kill Switch Ass'y. Includes 18 to 19
-
19515175232 Male TerminalMale Terminal
-
20250000265 Torx Screw M2.9 X 12Torx Screw M2.9 X 12
-
21512060390 PlatePlate
-
22512060125 Throttle CableThrottle Cable
-
23707000434 Cable GuideCable Guide
-
24414274500 CirclipCirclip
-
25293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
