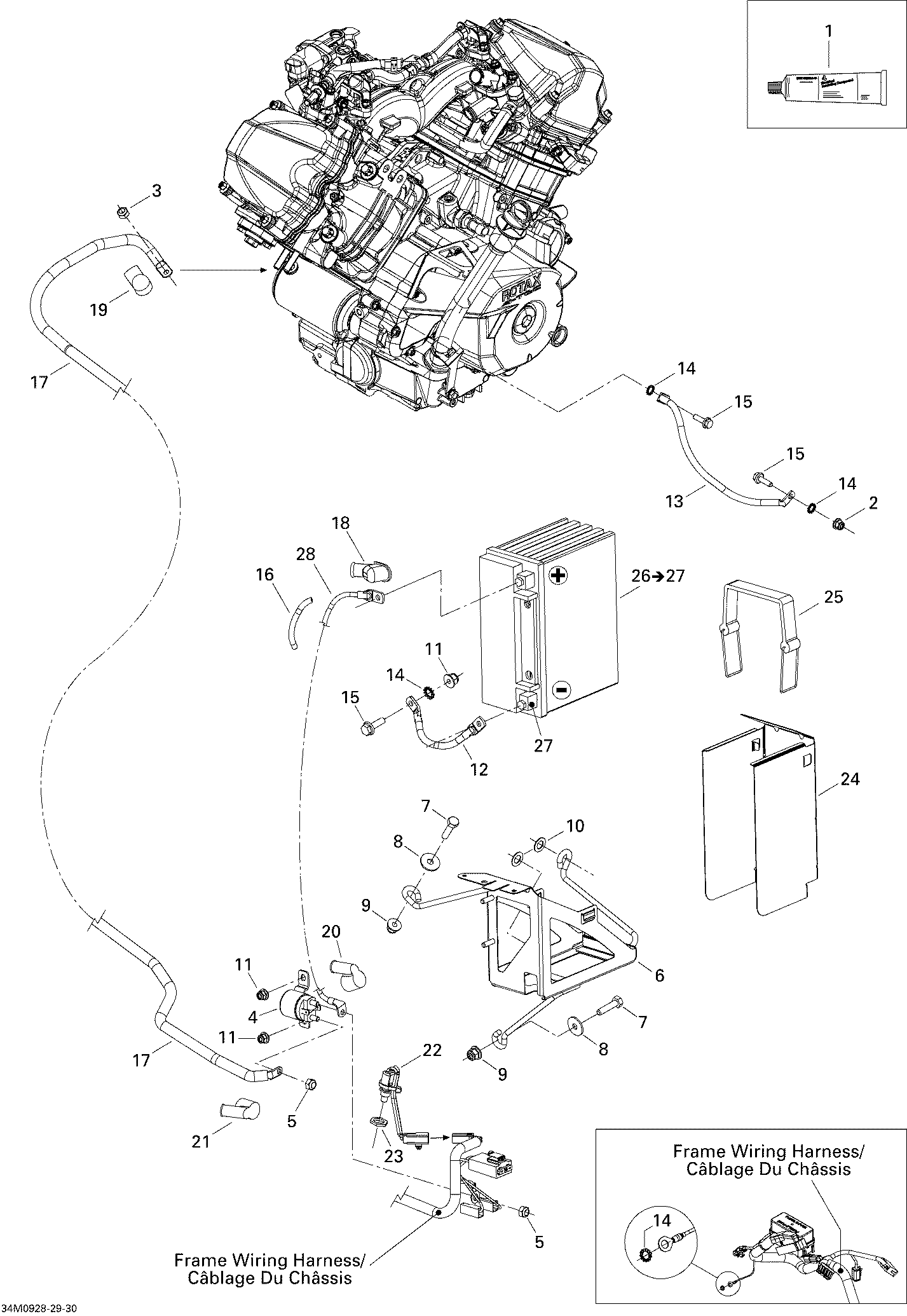

10- Battery And Starter для BRP Ski-Doo Legend Touring - 2009
-
№АртикулНазвание
-
1293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
2233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
3232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
4515176011 Starter RelayStarter Relay
-
5232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
6515176401 Battery SupportBattery Support
-
7207162544 Hex. Screw M6 X 25Hex. Screw M6 X 25
-
8224061201 Flat WasherFlat Washer
-
9233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
10503175800 WasherWasher
-
11233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
12515175749 Ground WireGround Wire
-
13515176407 Ground WireGround Wire
-
14234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
15207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
16409901700 Tubing 9 mmTubing 9 mm
-
17515176392 Battery WireBattery Wire
-
18710000495 Protector CapProtector Cap
-
19278001771 Protector CapProtector Cap
-
20570064200 Protection CapProtection Cap
-
21570064200 Protection CapProtection Cap
-
22515176472 Switch Ass'ySwitch Ass'y
-
23250000373 Brass NutBrass Nut
-
24515175616 DeflectorDeflector
-
25515175955 Battery StrapBattery Strap
-
26410922962 Battery, 12 Volts, 21 Amperes. Includes 26 to 27Battery, 12 Volts, 21 Amperes. Includes 26 to 27
-
27295500849 Battery Fastener KitBattery Fastener Kit
-
28515175904 Battery WireBattery Wire
