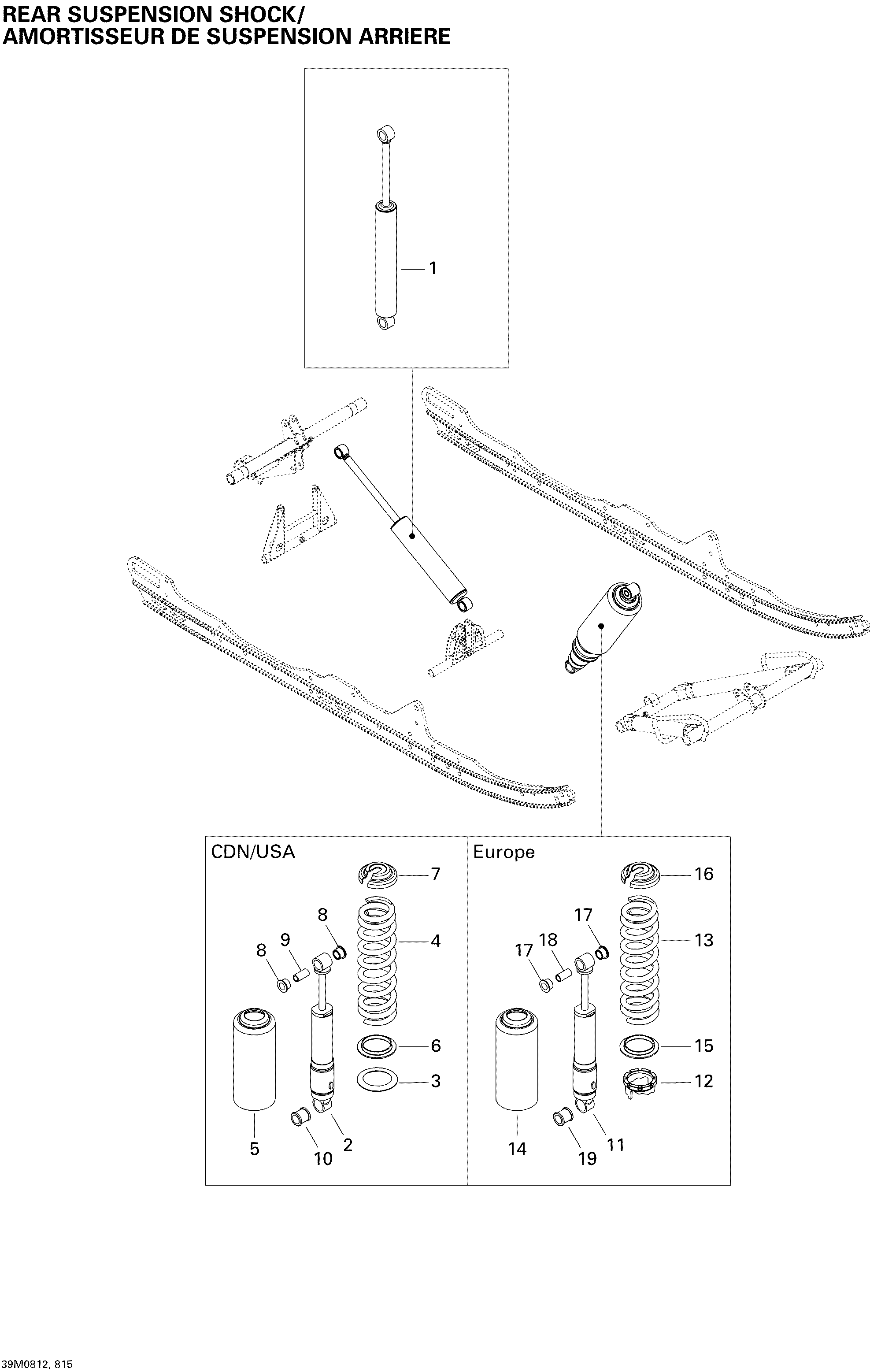

08- Rear Suspension Shocks для BRP Ski-Doo Legend Touring - 2009
-
№АртикулНазвание
-
1503191487 Rear ShockRear Shock
-
2503190992 Center Shock. Except EuropeCenter Shock. Except Europe
-
3505070401 Washer. Except EuropeWasher. Except Europe
-
4503189325 Spring. Except EuropeSpring. Except Europe
-
5503191126 Protector. Except EuropeProtector. Except Europe
-
6503187500 Spring Guide. Except EuropeSpring Guide. Except Europe
-
7706200881 Spring Stopper. Except EuropeSpring Stopper. Except Europe
-
8503189117 Cushion. Except EuropeCushion. Except Europe
-
9503189282 Bushing. Except EuropeBushing. Except Europe
-
10503189271 Cushion. Except EuropeCushion. Except Europe
-
11503191468 Center Shock. EuropeCenter Shock. Europe
-
12505070150 Adjustment Cam. EuropeAdjustment Cam. Europe
-
13503189325 Spring. EuropeSpring. Europe
-
14503191126 Protector. EuropeProtector. Europe
-
15503191872 Spring Guide. EuropeSpring Guide. Europe
-
16706200881 Spring Stopper. EuropeSpring Stopper. Europe
-
17503189117 Cushion. EuropeCushion. Europe
-
18503189282 Bushing. EuropeBushing. Europe
-
19503189271 Cushion. EuropeCushion. Europe
