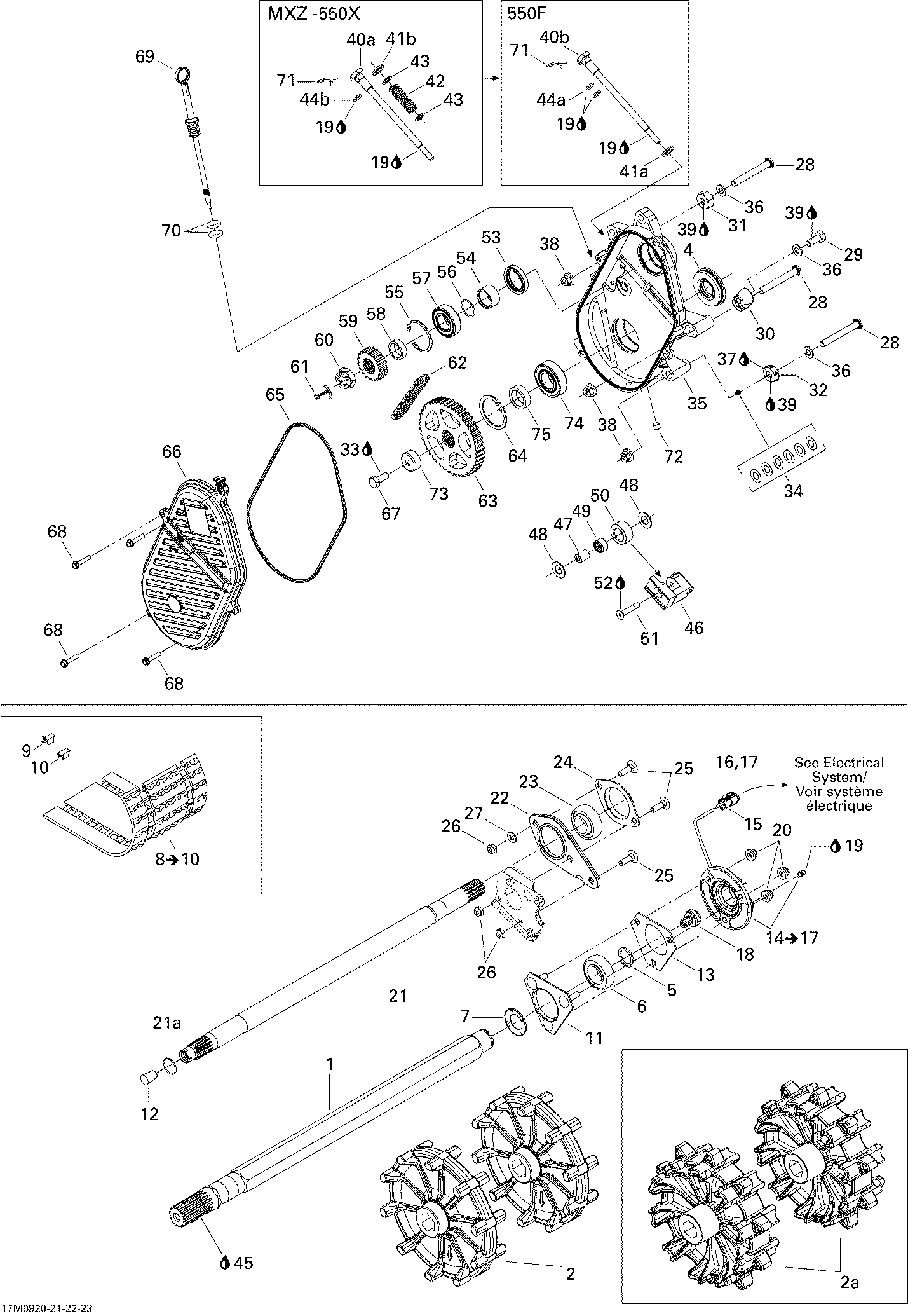

05- Drive System для BRP Ski-Doo Summit Fan - 2009
-
№АртикулНазвание
-
1501027400 Drive AxleDrive Axle
-
2504151781 Sprocket, 9 TeethSprocket, 9 Teeth
-
4504151918 Oil Seal Ass'yOil Seal Ass'y
-
5371910200 CirclipCirclip
-
6293350060 Ball BearingBall Bearing
-
7501017400 Bearing ProtectorBearing Protector
-
8504152644 Track 16'' X 136'' X 1.75'' Ass'y. Includes 8 to 10Track 16'' X 136'' X 1.75'' Ass'y. Includes 8 to 10
-
9504152410 GuideGuide
-
11504151860 Bearing HousingBearing Housing
-
13501025000 FlangeFlange
-
14504152345 Rotation Sensor. Includes 14 to 17Rotation Sensor. Includes 14 to 17
-
15515175671 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
16278000632 Female TerminalFemale Terminal
-
17515175676 Female Lock, 3 CircuitsFemale Lock, 3 Circuits
-
18504152040 Magnetic AdaptorMagnetic Adaptor
-
19219700417 Synthetic Grease, 400 gSynthetic Grease, 400 g
-
20233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
21504152292 Counter ShaftCounter Shaft
-
21a371910000 CirclipCirclip
-
22504151968 SpacerSpacer
-
23504152535 Ball BearingBall Bearing
-
24501026900 FlangeFlange
-
25207782544 Carriage Bolt, M8 X 25Carriage Bolt, M8 X 25
-
26232581414 Hex. Elastic Nut M8Hex. Elastic Nut M8
-
27234081410 Flat Washer 8 mmFlat Washer 8 mm
-
28250000151 Hex. Screw M10 X 80Hex. Screw M10 X 80
-
29207102544 Hex. Screw M10 X 25Hex. Screw M10 X 25
-
30504152252 SpacerSpacer
-
31504083800 SpacerSpacer
-
32504152237 SpacerSpacer
-
33293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
34504073700 WasherWasher
-
35504152312 ChaincaseChaincase
-
36503175800 WasherWasher
-
37293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
38233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
39293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
40b732601314 Adjustment ScrewAdjustment Screw
-
41a234001410 Flat Washer 10 mmFlat Washer 10 mm
-
44a414484400 O-RingO-Ring
-
45219700417 Synthetic Grease, 400 gSynthetic Grease, 400 g
-
46504151951 Chain TensionerChain Tensioner
-
47504080200 SpacerSpacer
-
48504080300 WasherWasher
-
49405403000 Needle BearingNeedle Bearing
-
50414531300 RollerRoller
-
51732601144 ScrewScrew
-
52293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
53504151927 SealSeal
-
55371901700 CirclipCirclip
-
57293350055 Ball BearingBall Bearing
-
58504152587 ShimShim
-
59504152031 Sprocket, 19 TeethSprocket, 19 Teeth
-
60250000012 Hex. Castle Nut M20 X 1.5Hex. Castle Nut M20 X 1.5
-
61371006300 Pin CotterPin Cotter
-
62504151857 Drive Chain, 74 LinksDrive Chain, 74 Links
-
63504152238 45 Tooth Sprocket45 Tooth Sprocket
-
64415064300 Circlip, InteriorCirclip, Interior
-
65415046400 O-RingO-Ring
-
66504152471 Chaincase CoverChaincase Cover
-
67207102544 Hex. Screw M10 X 25Hex. Screw M10 X 25
-
68210263080 Hex. Screw M6 X 30Hex. Screw M6 X 30
-
69504151703 Filler Cap Ass'yFiller Cap Ass'y
-
70414969400 O-RingO-Ring
-
71414575600 Hair PinHair Pin
-
72504151921 Plug 1/8''-27Plug 1/8''-27
-
73504152460 CapCap
-
74504152005 Ball BearingBall Bearing
-
75504152649 ShimShim
