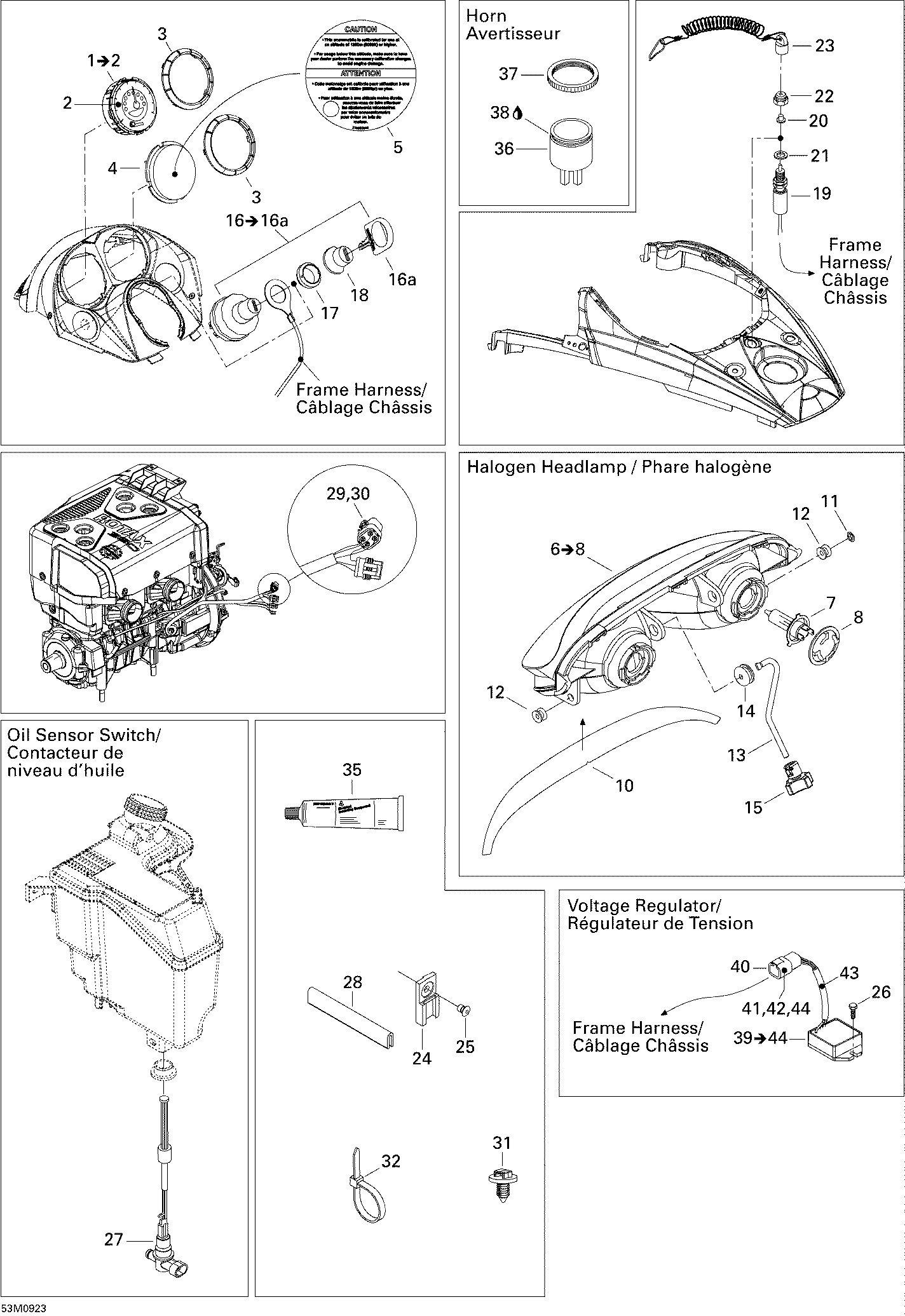

10- Electrical Accessories для BRP Ski-Doo Summit Fan - 2009
-
№АртикулНазвание
-
1515176476 Speedometer. Includes 1 to 2Speedometer. Includes 1 to 2
-
2415129319 LensLens
-
3515176242 Gauge RingGauge Ring
-
4515175901 Bottom Ring. Includes 4 to 5Bottom Ring. Includes 4 to 5
-
5516003040 Altitude DecalAltitude Decal
-
6515176311 Halogen Headlamp Ass'y. Includes 6 to 8Halogen Headlamp Ass'y. Includes 6 to 8
-
7515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
8515176385 Bulb HolderBulb Holder
-
10516001328 Headlamp DecalHeadlamp Decal
-
11732610072 Push NutPush Nut
-
12515175760 Headlamp BushingHeadlamp Bushing
-
13515175521 Adjuster RodAdjuster Rod
-
14415100800 GrommetGrommet
-
15515175975 HandleHandle
-
16515176548 Ignition Switch. Includes 16 to 16aIgnition Switch. Includes 16 to 16a
-
16a415129350 Blank KeyBlank Key
-
17410112100 Face NutFace Nut
-
18570013700 Switch BootSwitch Boot
-
19515175653 Brake SwitchBrake Switch
-
20570151100 Plunger CapPlunger Cap
-
21503183500 WasherWasher
-
22515145900 Switch NutSwitch Nut
-
23515176463 Cap Ass'yCap Ass'y
-
24515175917 ClipClip
-
25293150037 Avdel Rivet 3/16''Avdel Rivet 3/16''
-
26210261280 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
27515176327 Oil Level SensorOil Level Sensor
-
28509000263 TrimTrim
-
29278001473 Female Terminal Housing, 4 CircuitsFemale Terminal Housing, 4 Circuits
-
30278001474 Female Lock, 4 CircuitsFemale Lock, 4 Circuits
-
31293730018 Mount DartMount Dart
-
32414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
32293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
32293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
32293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
35293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
36515176035 HornHorn
-
37414805101 Plastic NutPlastic Nut
-
38296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
39515176188 Voltage Regulator. Includes 39 to 44Voltage Regulator. Includes 39 to 44
-
40278001477 Female Housing, 4 CircuitsFemale Housing, 4 Circuits
-
41515175568 Male TerminalMale Terminal
-
42278001478 (Female) Secondary Lock (4 Circuits) (Deutsch)(Female) Secondary Lock (4 Circuits) (Deutsch)
-
43710000497 Protector Tube, 9 mmProtector Tube, 9 mm
-
44293000052 Sealing CapSealing Cap
