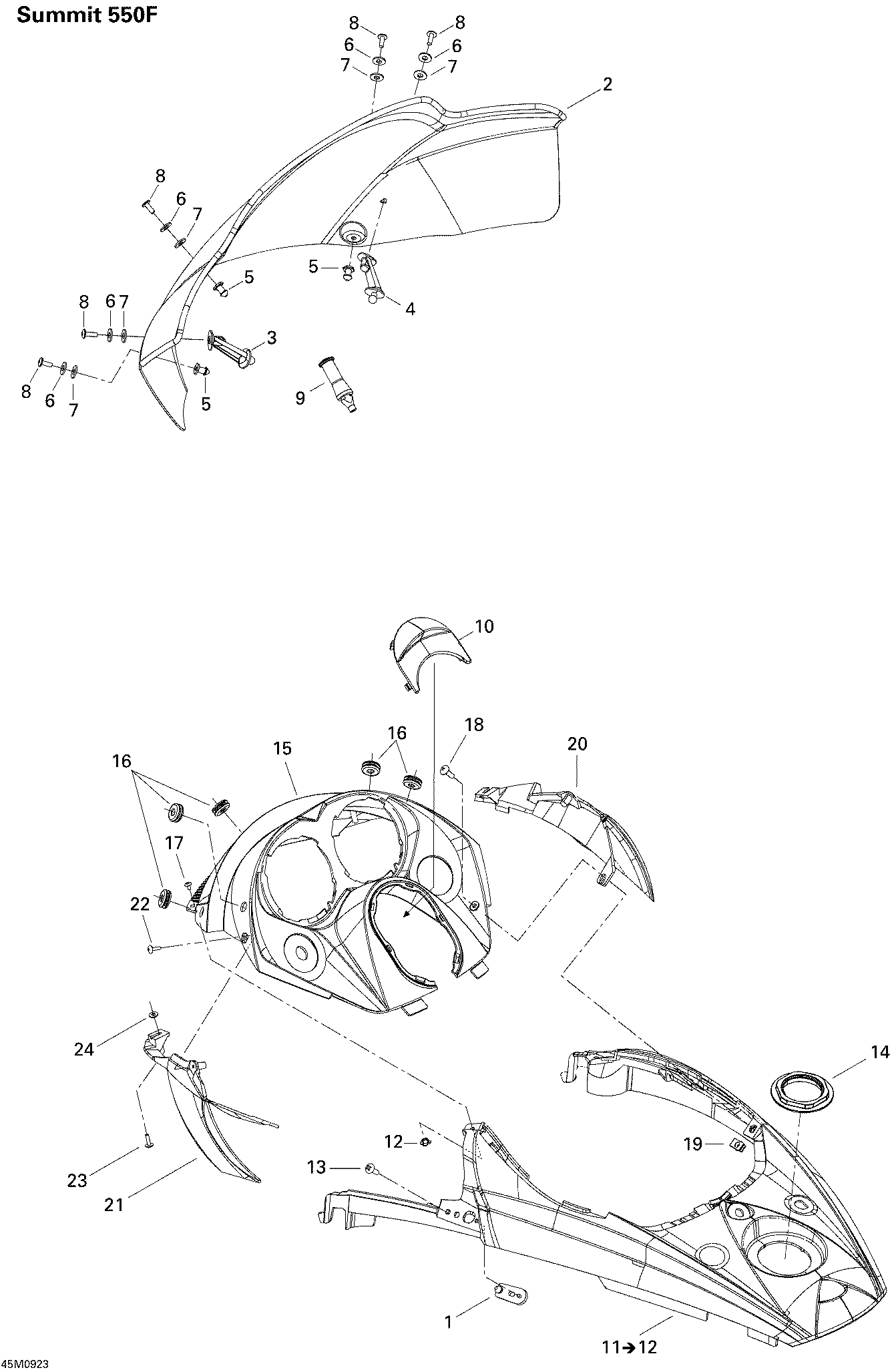

09- Windshield And Console для BRP Ski-Doo Summit Fan - 2009
-
№АртикулНазвание
-
1517302616 Hood LatchHood Latch
-
2517303174 Medium WindshieldMedium Windshield
-
3517303214 LH Windshield SupportLH Windshield Support
-
4517303215 RH Windshield SupportRH Windshield Support
-
5517303439 KnobKnob
-
6250200025 Washer M5Washer M5
-
7250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
8250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
9517303197 Windshield SupportWindshield Support
-
10517302592 Console CapConsole Cap
-
11517303354 Center Console, Black. Includes 11 to 12Center Console, Black. Includes 11 to 12
-
12250100030 T-Nut, M4T-Nut, M4
-
13250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
14517302575 Console NutConsole Nut
-
15517303397 Indicator SupportIndicator Support
-
16517302841 GrommetGrommet
-
17250000127 Torx Screw M4 X 8Torx Screw M4 X 8
-
18250000130 Torx Screw M5 X 20Torx Screw M5 X 20
-
19250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
20517302546 RH Air DeflectorRH Air Deflector
-
21517302547 LH Air DeflectorLH Air Deflector
-
22250000294 Torx ScrewTorx Screw
-
23250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
24234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
