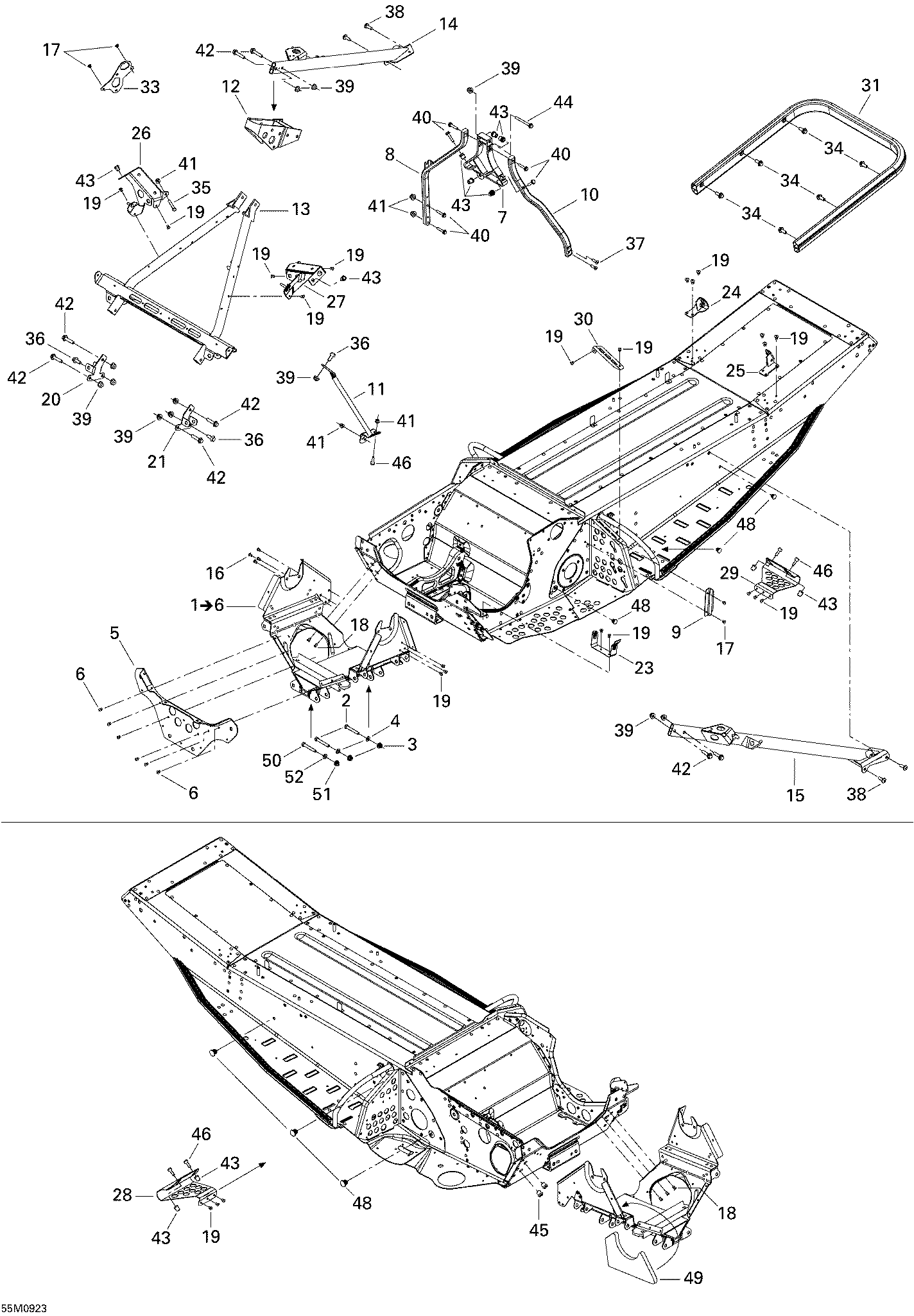

09- Frame and Components для BRP Ski-Doo Summit Fan - 2009
-
№АртикулНазвание
-
1518325423 Cross Member. Includes 1 to 6Cross Member. Includes 1 to 6
-
2207085544 Hex. Screw M8 X 55Hex. Screw M8 X 55
-
3233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
4234081410 Flat Washer 8 mmFlat Washer 8 mm
-
5518325422 Front PlateFront Plate
-
6390909100 Avex RivetAvex Rivet
-
7518324377 Center StiffenerCenter Stiffener
-
8518324397 RH Handle SupportRH Handle Support
-
9518317504 Cable ProtectorCable Protector
-
10518324376 LH Handle SupportLH Handle Support
-
11518323472 Brace, BlackBrace, Black
-
12518323854 Bracket BlockBracket Block
-
13518324739 Upper Cross MemberUpper Cross Member
-
14518323352 RH MemberRH Member
-
15518323354 LH MemberLH Member
-
16293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
17390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
18390909100 Avex RivetAvex Rivet
-
19390909200 Avex RivetAvex Rivet
-
20518322461 RH Shock BracketRH Shock Bracket
-
21518322462 LH Shock BracketLH Shock Bracket
-
23518322726 Guard Belt Bracket, BlackGuard Belt Bracket, Black
-
24518323769 RH Bracket, BlackRH Bracket, Black
-
25518323770 LH Bracket, BlackLH Bracket, Black
-
26518324513 RH Console SupportRH Console Support
-
27518322962 LH Console SupportLH Console Support
-
28518324391 RH Toe HoldRH Toe Hold
-
29518324392 LH Toe HoldLH Toe Hold
-
30518323105 Plate, BlackPlate, Black
-
31518325218 Rear Bumper. Except EuropeRear Bumper. Except Europe
-
31518325219 Rear Bumper. EuropeRear Bumper. Europe
-
33518324315 PlatePlate
-
34236282084 Hex. Screw M8 X 20Hex. Screw M8 X 20
-
35207063544 Hex. Flanged Screw M6 X 35Hex. Flanged Screw M6 X 35
-
36207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
37205862044 Socket Head Screw M6 X 20, Scotch GripSocket Head Screw M6 X 20, Scotch Grip
-
38250000154 Torx Screw M8 X 13Torx Screw M8 X 13
-
39233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
40250000253 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
41233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
42207683544 Hex. Flanged Screw M8 X 35Hex. Flanged Screw M8 X 35
-
43415107300 InsertInsert
-
44207687044 Hex. Flanged Screw M8 X 70Hex. Flanged Screw M8 X 70
-
45293450166 InsertInsert
-
46207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
48518321954 Fastener PanelFastener Panel
-
49518323453 RH Front FoamRH Front Foam
-
50207085544 Hex. Screw M8 X 55Hex. Screw M8 X 55
-
51233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
52234081410 Flat Washer 8 mmFlat Washer 8 mm
