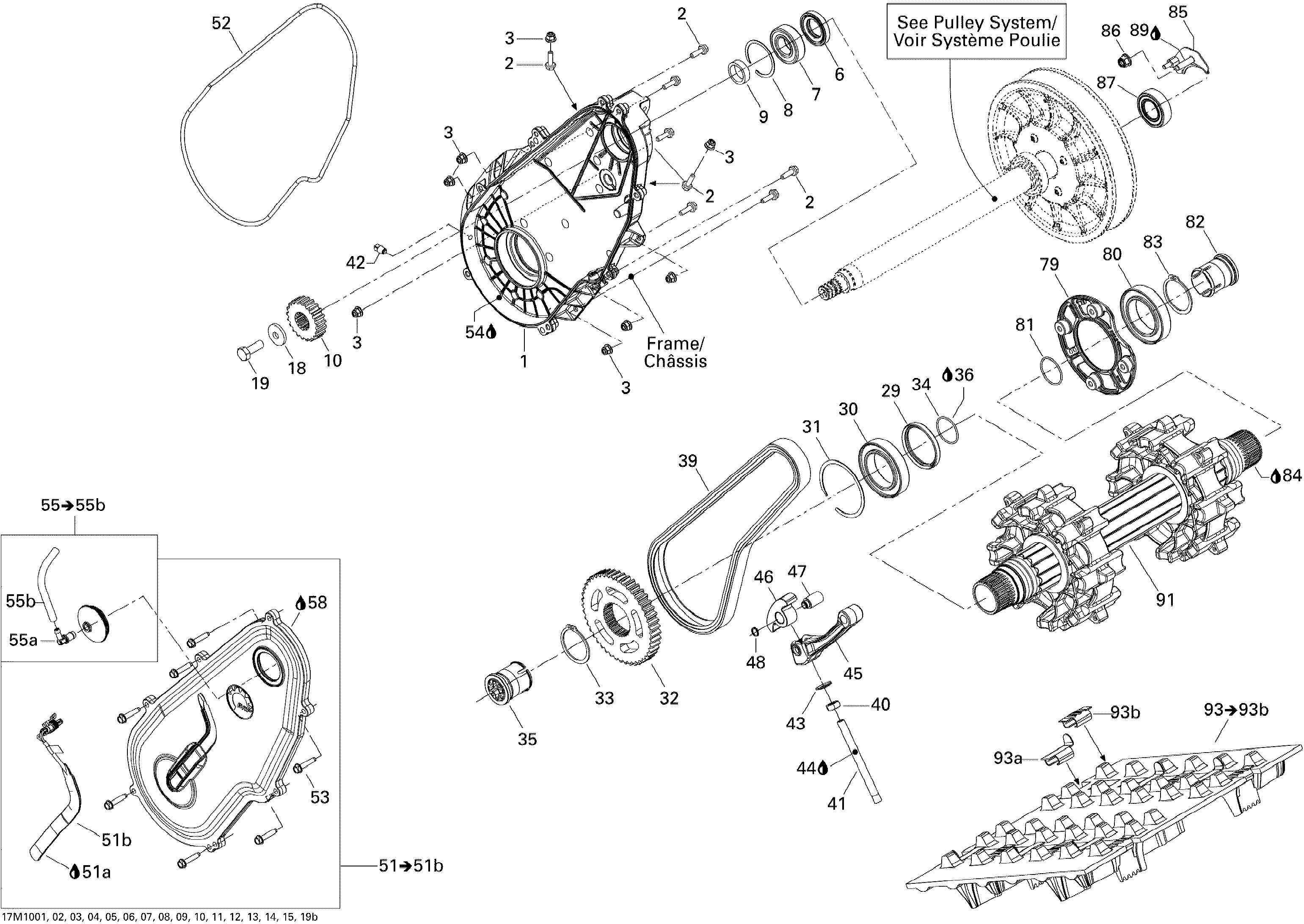

05- Drive System 600HO ETEC для BRP Ski-Doo Grand-Touring LE 600HO ETEC - 2010

-
№АртикулНазвание
-
1504152942 Chaincase. LE 600HOEChaincase. LE 600HOE
-
2207662034 Hex. Flanged Screw. 600HOEHex. Flanged Screw. 600HOE
-
3233261434 Flanged Elastic Nut M6. 600HOEFlanged Elastic Nut M6. 600HOE
-
6415049300 Oil Seal. 600HOEOil Seal. 600HOE
-
7293350055 Ball BearingBall Bearing
-
8504152576 CirclipCirclip
-
9504152628 Shim. 600HOEShim. 600HOE
-
10504091000 Sprocket, 23 Teeth. 23D 600HOESprocket, 23 Teeth. 23D 600HOE
-
18504152784 Spring Washer M10. 600HOESpring Washer M10. 600HOE
-
19207103044 Hex. Screw M10 X 30. 600HOEHex. Screw M10 X 30. 600HOE
-
29504152571 SealSeal
-
30504152573 Ball BearingBall Bearing
-
31504152582 CirclipCirclip
-
32504152593 Sprocket, 45 Teeth. 45DSprocket, 45 Teeth. 45D
-
33504152572 CirclipCirclip
-
34293300122 O-RingO-Ring
-
35504152619 Magnetic CapMagnetic Cap
-
36293550033 Suspension Grease, 10 X 400 GSuspension Grease, 10 X 400 G
-
39504152629 Drive Chain, 104 Links. 104MDrive Chain, 104 Links. 104M
-
40232006414 Hex. Nut M10Hex. Nut M10
-
41504152602 Adjustment ScrewAdjustment Screw
-
42504152636 Magnetic Plug. LEMagnetic Plug. LE
-
43250200100 Bonded WasherBonded Washer
-
44413803300 Synthetic Chaincase Oil, 12 X 355 mlSynthetic Chaincase Oil, 12 X 355 ml
-
45504152685 Chain Tensioner. 600HOEChain Tensioner. 600HOE
-
46504152739 Slider ChainSlider Chain
-
47504152841 Tensionner AxleTensionner Axle
-
48504152282 CirclipCirclip
-
51504152922 Chaincase Cover Ass'y. LE 600HOEChaincase Cover Ass'y. LE 600HOE
-
51a293800066 Sealant, Loctite 5900, 300 mlSealant, Loctite 5900, 300 ml
-
51b504152896 SensorSensor
-
52293300130 O-RingO-Ring
-
53250000360 Flanged Hex. Screw M6 X 30. LEFlanged Hex. Screw M6 X 30. LE
-
54413803300 Synthetic Chaincase Oil, 12 X 355 mlSynthetic Chaincase Oil, 12 X 355 ml
-
55504152860 CapCap
-
55a414580700 Male ConnectorMale Connector
-
55b415080200 Hose, PolyurethaneHose, Polyurethane
-
58413803300 Synthetic Chaincase Oil, 12 X 355 mlSynthetic Chaincase Oil, 12 X 355 ml
-
79504152949 Housing BearingHousing Bearing
-
80293350059 Ball BearingBall Bearing
-
81293300122 O-RingO-Ring
-
82504152619 Magnetic CapMagnetic Cap
-
83504152572 CirclipCirclip
-
84293550033 Suspension Grease, 10 X 400 GSuspension Grease, 10 X 400 G
-
85504152974 Bearing HousingBearing Housing
-
86233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
89293800070 Loctite 767, Antiseize Lubricant, 8 ozLoctite 767, Antiseize Lubricant, 8 oz
-
91415129446 Drive Axle Ass'yDrive Axle Ass'y
-
93504152755 Track Ass'y 15X137X1.0. TR15X137X1.0BTrack Ass'y 15X137X1.0. TR15X137X1.0B
-
93a504152410 GuideGuide
-
93b504152651 CleatCleat
