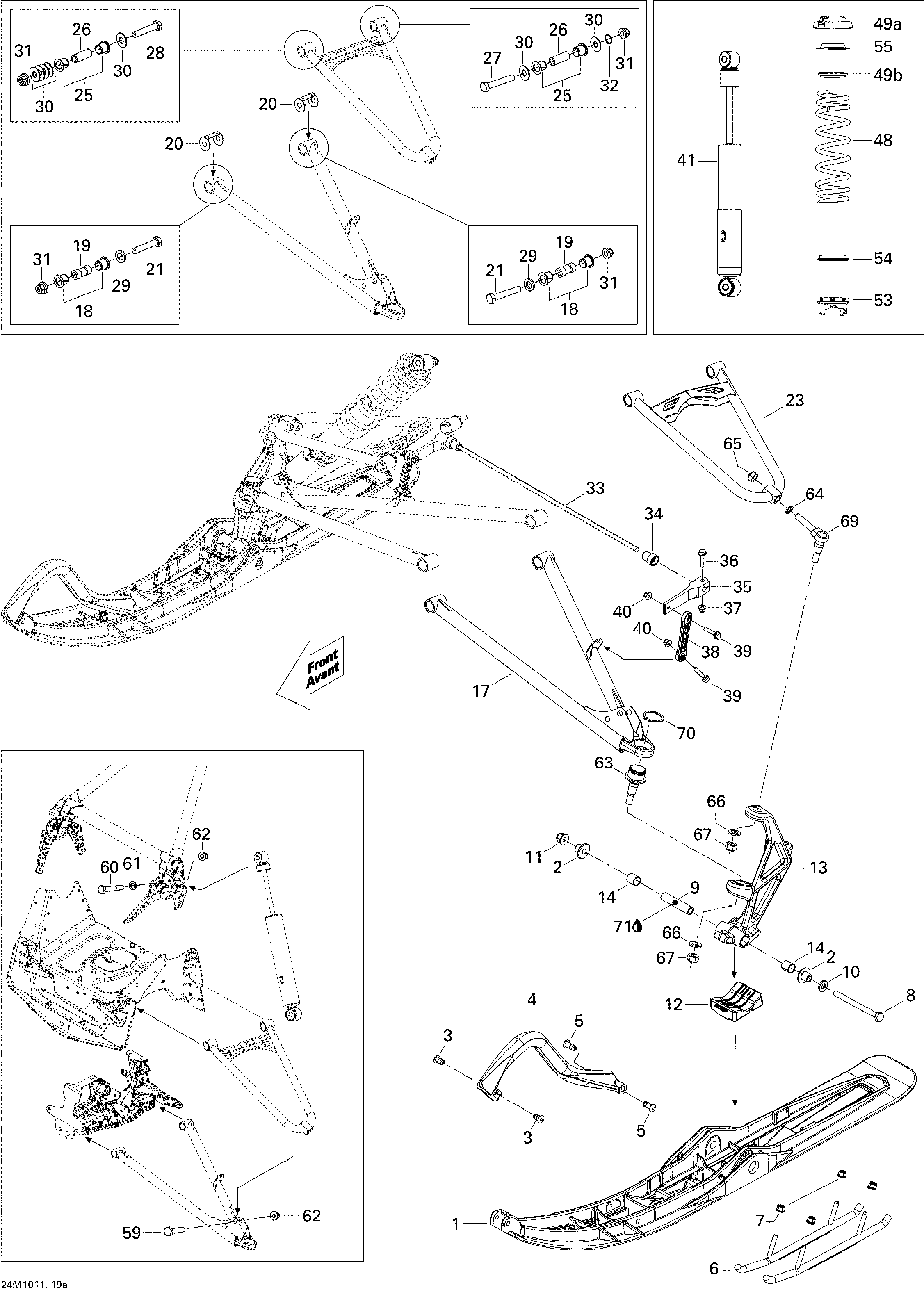

07- Front Suspension And Ski LE 600HO ETEC, North America для BRP Ski-Doo Grand-Touring LE 600HO ETEC - 2010
-
№АртикулНазвание
-
1505072548 Pilot Ski Ass'y. Includes 1 to 2Pilot Ski Ass'y. Includes 1 to 2
-
2505071781 CushionCushion
-
3505071812 RetainerRetainer
-
4505071556 Handle, Full MoonHandle, Full Moon
-
5505072133 RetainerRetainer
-
6505072223 Carbide RunnerCarbide Runner
-
7233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
8230003044 Hex. Screw M10 X 130Hex. Screw M10 X 130
-
9506133300 SpacerSpacer
-
10732900049 WasherWasher
-
11233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
12505071779 Ski StopperSki Stopper
-
13505072717 LH Ski LegLH Ski Leg
-
13505072718 RH Ski LegRH Ski Leg
-
14505072690 Leg CushionLeg Cushion
-
17505072522 RH Lower ArmRH Lower Arm
-
17505072523 LH Lower ArmLH Lower Arm
-
18505072208 BushingBushing
-
19505072393 BushingBushing
-
20505072634 Wear PlateWear Plate
-
21250000291 Screw Hex. M10 X 70Screw Hex. M10 X 70
-
23505072389 Upper ArmUpper Arm
-
25505072250 BushingBushing
-
26505072143 BushingBushing
-
27250000290 Screw Hex. M10 X 60Screw Hex. M10 X 60
-
28250000289 Screw Hex. M10 X 50Screw Hex. M10 X 50
-
29503189564 WasherWasher
-
30505072392 WasherWasher
-
31250100088 Hex. Elastic Hex. Nut M10Hex. Elastic Hex. Nut M10
-
32505072448 O-RingO-Ring
-
36207663046 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
37233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
38505072204 Double Ball Joint LinkDouble Ball Joint Link
-
39207663046 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
40233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
41505072261 Front Shock. LE 600HOEFront Shock. LE 600HOE
-
48505071842 Spring. LE 600HOESpring. LE 600HOE
-
49a706200881 Spring StopperSpring Stopper
-
49b503192029 Spring StopperSpring Stopper
-
53505070150 Adjustment CamAdjustment Cam
-
54503191872 Spring GuideSpring Guide
-
55706200785 CapCap
-
59207005544 Hex. Screw M10 X 55Hex. Screw M10 X 55
-
60207006544 Hex. Screw M10 X 65Hex. Screw M10 X 65
-
61503189564 WasherWasher
-
62233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
63505072682 Lower Ball JointLower Ball Joint
-
64503189276 WasherWasher
-
65250100089 Hex. Elastic Hex. Nut M12Hex. Elastic Hex. Nut M12
-
66234021410 Flat Washer 12 mmFlat Washer 12 mm
-
67250100089 Hex. Elastic Hex. Nut M12Hex. Elastic Hex. Nut M12
-
69505072257 Upper Ball JointUpper Ball Joint
-
70293370035 CirclipCirclip
-
71293550033 Suspension Grease, 10 X 400 GSuspension Grease, 10 X 400 G
