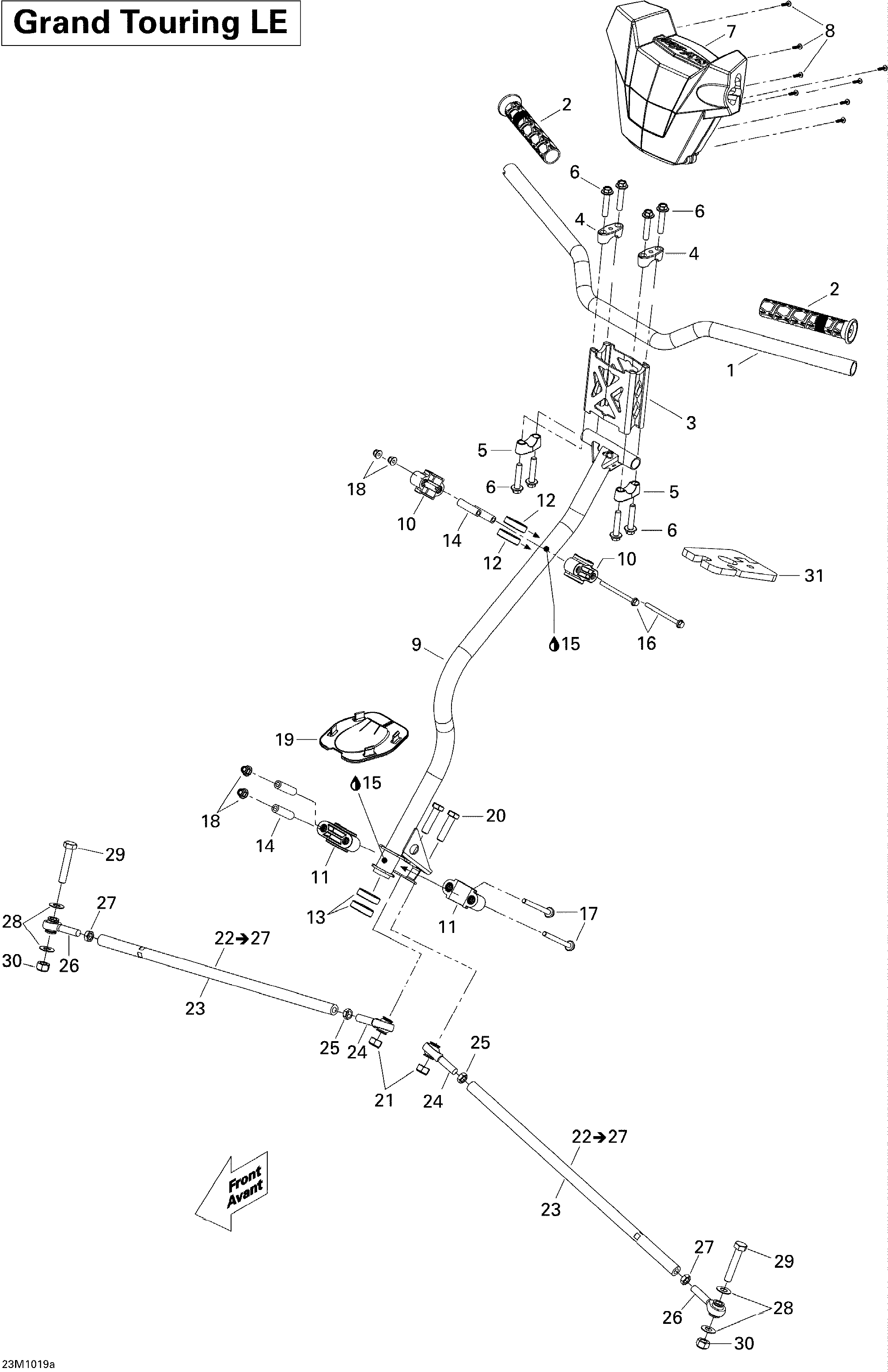

07- Steering LE для BRP Ski-Doo Grand-Touring LE 600HO ETEC - 2010
-
№АртикулНазвание
-
1506152304 Handle BarHandle Bar
-
2506152424 Handle GripHandle Grip
-
3860200268 Handlebar ExtensionHandlebar Extension
-
4506152394 Upper Steering SupportUpper Steering Support
-
5506152395 Lower Steering SupportLower Steering Support
-
6250000352 Hex. Flange Screw M8 X 40Hex. Flange Screw M8 X 40
-
7506152307 Steering PadSteering Pad
-
8250000400 Torx Screw K50 X 20Torx Screw K50 X 20
-
9506152469 Main TubeMain Tube
-
10506152219 Upper Half HousingUpper Half Housing
-
11506152217 Lower Half HousingLower Half Housing
-
12506152292 Upper Vibration RingUpper Vibration Ring
-
13506152218 Lower Vibration RingLower Vibration Ring
-
14506152297 Housing BushingHousing Bushing
-
15293550033 Suspension Grease, 10 X 400 GSuspension Grease, 10 X 400 G
-
16207667086 Hex. Flanged Screw M6 x 70Hex. Flanged Screw M6 x 70
-
17207667044 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
18233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
19506152163 PlatePlate
-
20207004034 Hex. Screw M10 X 40Hex. Screw M10 X 40
-
21232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
23506152095 Tie RodTie Rod
-
24506152081 LH Thread Ball JointLH Thread Ball Joint
-
25250100016 LH Hex. Jam Nut M10LH Hex. Jam Nut M10
-
26506152019 RH Thread Ball JointRH Thread Ball Joint
-
27732610010 RH Hex. Jam Nut M10RH Hex. Jam Nut M10
-
28506152194 WasherWasher
-
29207006044 Hex. Screw M10 X 60Hex. Screw M10 X 60
-
30232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
31506152407 CushionCushion
