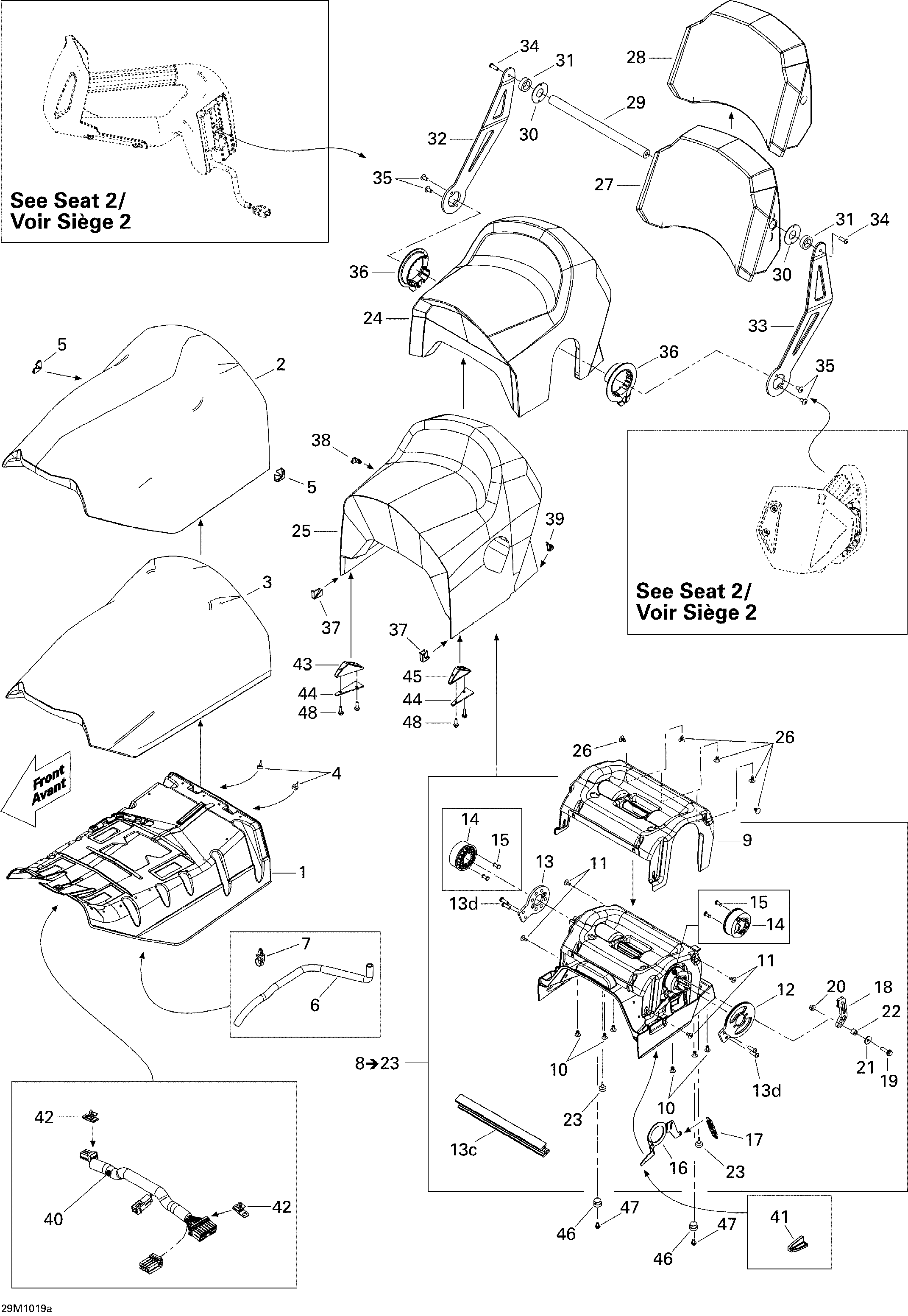

09- Seat 1, LE для BRP Ski-Doo Grand-Touring LE 600HO ETEC - 2010
-
№АртикулНазвание
-
1510004775 Front Seat BaseFront Seat Base
-
2510005266 Front Seat Cover. LEFront Seat Cover. LE
-
3510004777 Front Seat FoamFront Seat Foam
-
4708000759 Rubber StopperRubber Stopper
-
5510004971 Seat CornerSeat Corner
-
5510004963 Seat CornerSeat Corner
-
6515175442 Tubing 6 mmTubing 6 mm
-
7515175220 Tie RapTie Rap
-
8510004779 Rear Seat Base Ass'y. Includes 8 to 23Rear Seat Base Ass'y. Includes 8 to 23
-
9510004423 Foam SupportFoam Support
-
10293150104 Pop Rivet 3/16'', BlackPop Rivet 3/16'', Black
-
11293150100 Pop Rivet 3/16''Pop Rivet 3/16''
-
12510004391 SprocketSprocket
-
13510004393 Link PlateLink Plate
-
13c510004394 Link TubeLink Tube
-
13d205982586 Socket Head Screw S.grip, M8x1.25x25Socket Head Screw S.grip, M8x1.25x25
-
14510004390 SpacerSpacer
-
15293150129 Steel RivetSteel Rivet
-
16510004385 Handle, BlackHandle, Black
-
17514053643 SpringSpring
-
18510004392 Adjustement PivotAdjustement Pivot
-
19207663044 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
20233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
21224061201 Flat WasherFlat Washer
-
22510004425 BushingBushing
-
23708000759 Rubber StopperRubber Stopper
-
24510005225 Rear Seat Cover. LERear Seat Cover. LE
-
25510004791 Rear Seat FoamRear Seat Foam
-
26414644300 DartDart
-
27510004782 Backrest FoamBackrest Foam
-
28510005101 Backrest Cover. LEBackrest Cover. LE
-
29510004377 Upper Backrest AxleUpper Backrest Axle
-
30510004379 WasherWasher
-
31510004378 Rubber ShimRubber Shim
-
32510004794 RH Arm, BlackRH Arm, Black
-
33510004796 LH Arm, BlackLH Arm, Black
-
34250000283 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
35250000198 Torx Truss Screw M8 X 16Torx Truss Screw M8 X 16
-
36510004966 SpacerSpacer
-
37510004963 Seat Corner. LESeat Corner. LE
-
38510004964 RH Rear Corner SeatRH Rear Corner Seat
-
39510004965 LH Rear Corner SeatLH Rear Corner Seat
-
40515176766 Seat Harness. LESeat Harness. LE
-
41510004419 GripGrip
-
42515175283 Housing SupportHousing Support
-
43518325710 RH Seat AnchorRH Seat Anchor
-
44510005216 SpacerSpacer
-
45518325709 LH Seat AnchorLH Seat Anchor
-
46510005095 Seat StudSeat Stud
-
47207561044 Hex. Flanged Screw S.grip M6 X 10Hex. Flanged Screw S.grip M6 X 10
-
48207562044 Flanged Screw M6 X 20, Scotch GripFlanged Screw M6 X 20, Scotch Grip
