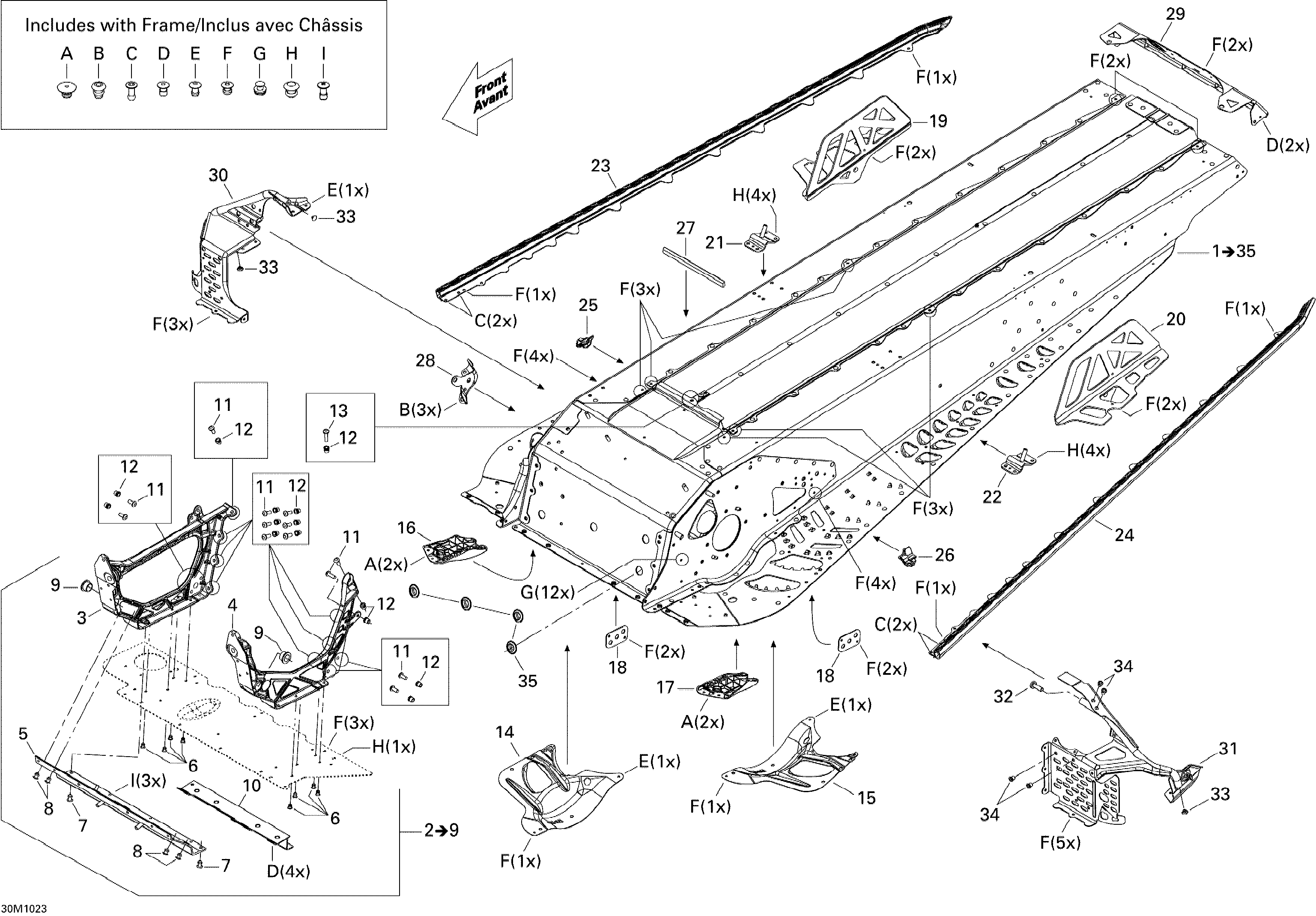

09- Frame для BRP Ski-Doo Grand-Touring Sport 550F - 2010

-
№АртикулНазвание
-
1415129475 Frame Ass'y, 137''. Includes 1 to 35Frame Ass'y, 137''. Includes 1 to 35
-
2518326348 E-Module Ass'y. Includes 2 to 9E-Module Ass'y. Includes 2 to 9
-
3518325922 RH MemberRH Member
-
4518325558 LH MemberLH Member
-
5518325818 Front MemberFront Member
-
6293150144 Stavex RivetStavex Rivet
-
7293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
8293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
9505070954 CushionCushion
-
10518326120 Engine SupportEngine Support
-
11207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
12233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
13207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
14518324874 RH ReinforcementRH Reinforcement
-
15518324875 LH ReinforcementLH Reinforcement
-
16518325782 RH DeflectorRH Deflector
-
17518325783 LH DeflectorLH Deflector
-
18518201321 Reinforcement PlateReinforcement Plate
-
19518326136 RH Slide BracketRH Slide Bracket
-
20518326137 LH Slide BracketLH Slide Bracket
-
21518325973 RH Rear BaseRH Rear Base
-
22518325974 LH Rear BaseLH Rear Base
-
23518325377 RH RollerRH Roller
-
24518325378 LH RollerLH Roller
-
25518325653 RH SealRH Seal
-
26518325654 LH SealLH Seal
-
27293200105 Neoprene SealNeoprene Seal
-
28518325559 RH Engine SupportRH Engine Support
-
29518325421 Rear CapRear Cap
-
30518326216 RH StirupRH Stirup
-
31518326239 LH StirupLH Stirup
-
32250000248 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
33293730042 DartDart
-
34293450268 InsertInsert
-
35293730052 Plug, BlackPlug, Black
-
A293150104 Pop Rivet 3/16'', BlackPop Rivet 3/16'', Black
-
B293150096 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
C390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
D390909200 Avex RivetAvex Rivet
-
E390909100 Avex RivetAvex Rivet
-
F293150144 Stavex RivetStavex Rivet
-
G293150146 Henrob RivetHenrob Rivet
-
H293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
I293150175 Monobolt RivetMonobolt Rivet
