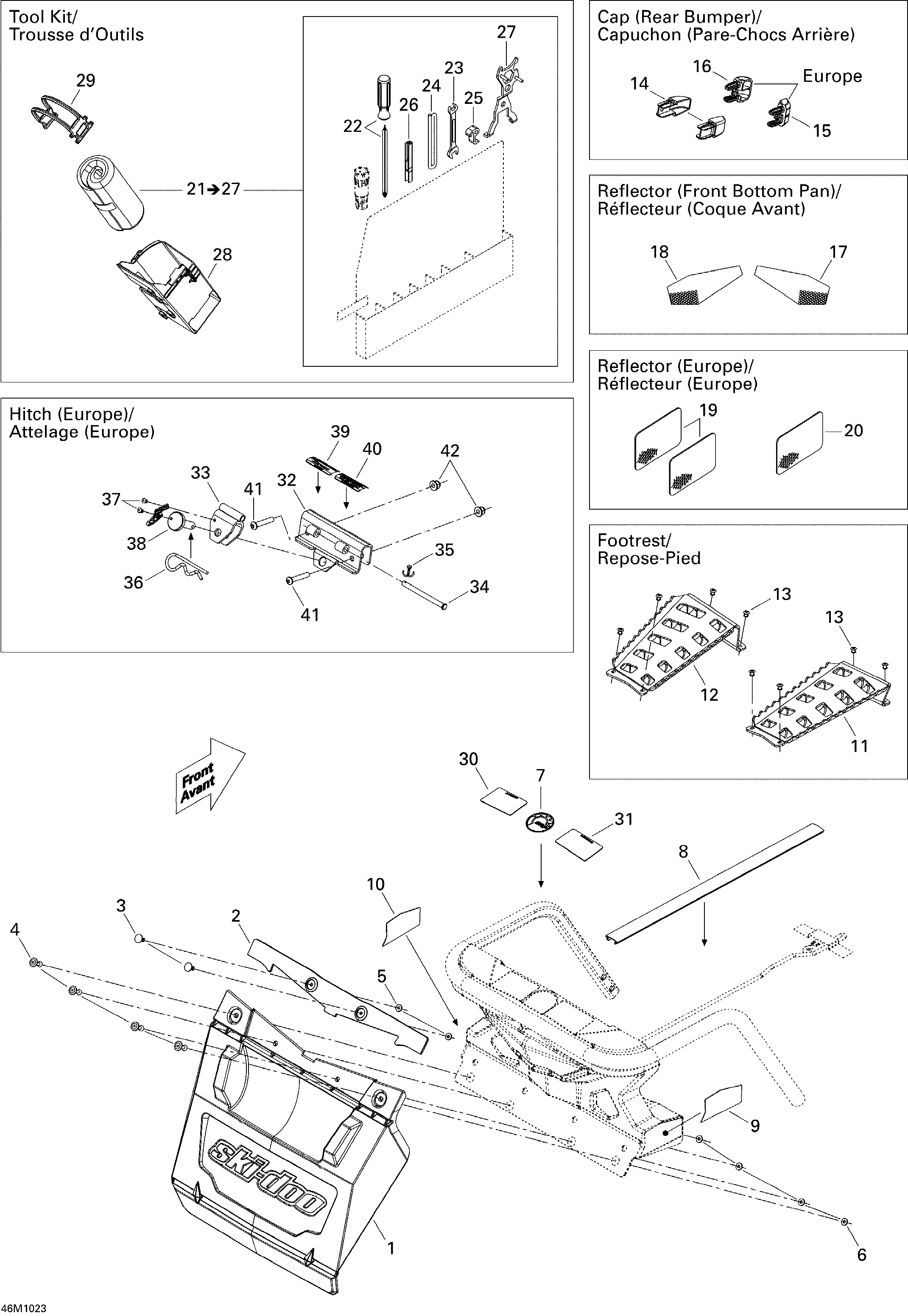

09- Utilities для BRP Ski-Doo Grand-Touring Sport 550F - 2010
-
№АртикулНазвание
-
1520000659 Snow GuardSnow Guard
-
2520000953 Esthetic PlateEsthetic Plate
-
3293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
4293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
5517124300 WasherWasher
-
6517124300 WasherWasher
-
7219902544 BRP Logo, 48 mmBRP Logo, 48 mm
-
8520000829 Radiator TrimRadiator Trim
-
9520000881 RH ReflectorRH Reflector
-
9520000883 RH Reflector. EuropeRH Reflector. Europe
-
10520000880 LH ReflectorLH Reflector
-
10520000882 LH Reflector. EuropeLH Reflector. Europe
-
11520000887 RH FootrestRH Footrest
-
12520000888 LH FootrestLH Footrest
-
13390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
14520000567 CapCap
-
15520000711 RH Cap. EuropeRH Cap. Europe
-
16520000712 LH Cap. EuropeLH Cap. Europe
-
17520000718 RH Front ReflectorRH Front Reflector
-
18520000719 LH Front ReflectorLH Front Reflector
-
19520000271 Reflector, Amber. EuropeReflector, Amber. Europe
-
20415037900 Reflector, White. EuropeReflector, White. Europe
-
21529000045 Tool Kit. Includes 21 to 27Tool Kit. Includes 21 to 27
-
22529000004 Screw DriverScrew Driver
-
23529000002 Fork Wrench 10/13 mmFork Wrench 10/13 mm
-
24412500200 Starter Rope, MeterStarter Rope, Meter
-
25529019400 Starter GripStarter Grip
-
26529035501 Spacing ToolSpacing Tool
-
27520000956 Wrench SuspensionWrench Suspension
-
28520000894 Tool Kit RackTool Kit Rack
-
29520000528 LatchLatch
-
30516003934 Warning Decal-Security-EnglishWarning Decal-Security-English
-
31516004298 Warning Decal-Security-EnglishWarning Decal-Security-English
-
31516004293 Warning Decal-Security-English. EuropeWarning Decal-Security-English. Europe
-
32511000554 Support. EuropeSupport. Europe
-
33511000588 Hitch Plate. EuropeHitch Plate. Europe
-
34511000520 Clevis Pin. EuropeClevis Pin. Europe
-
35371800200 Cotter Pin. EuropeCotter Pin. Europe
-
36114045200 Hair Pin. EuropeHair Pin. Europe
-
37390404300 Pop Rivet 5/32''. EuropePop Rivet 5/32''. Europe
-
38511000555 Pin. EuropePin. Europe
-
39516003037 Warning Decal-Security-English. EuropeWarning Decal-Security-English. Europe
-
40516003038 Warning Decal-Security-French. EuropeWarning Decal-Security-French. Europe
-
41205484546 Socket Head Screw M8 X 45. EuropeSocket Head Screw M8 X 45. Europe
-
42233281414 Hex. Flanged Elastic Nut M8. EuropeHex. Flanged Elastic Nut M8. Europe
