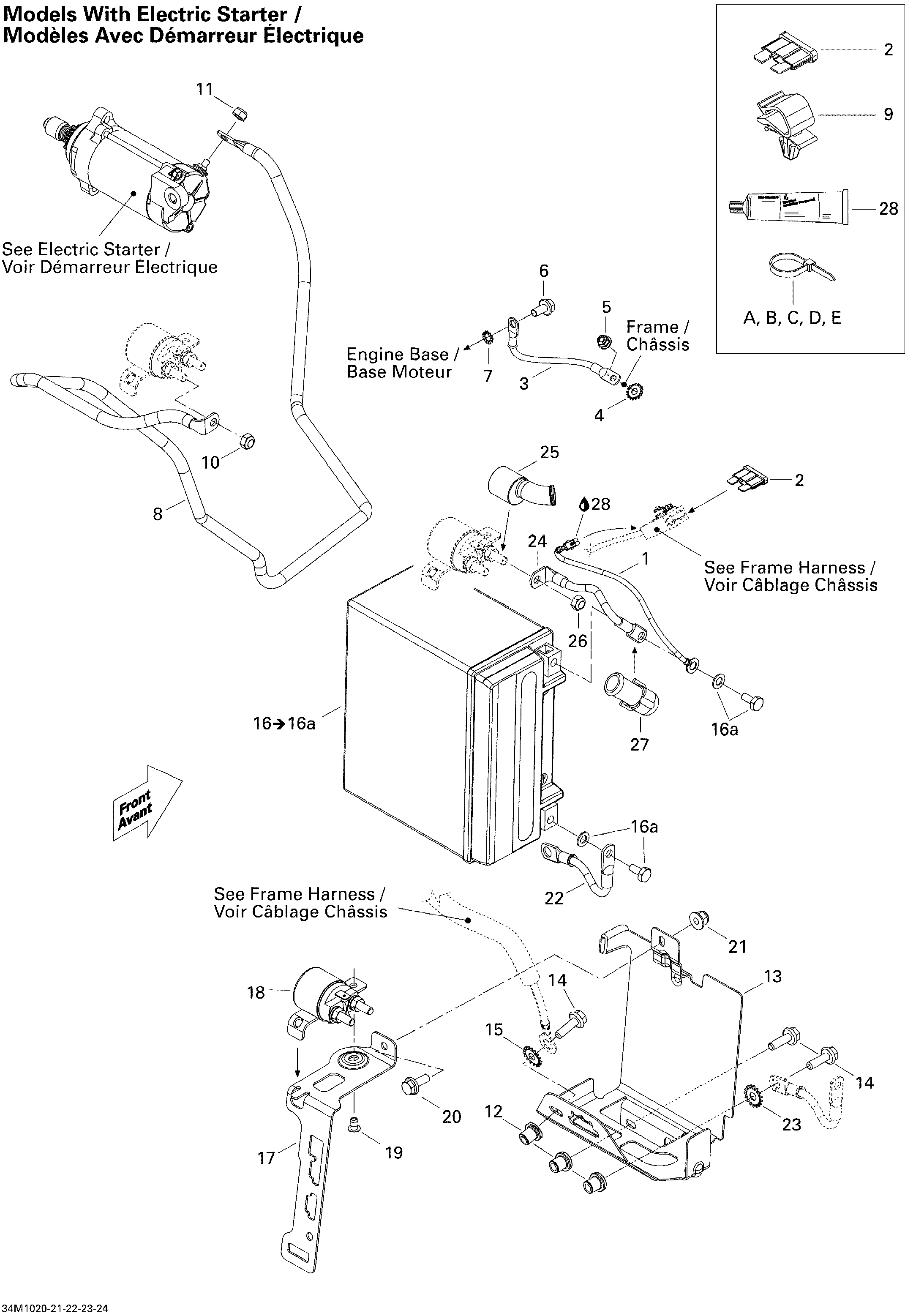

10- Battery And Starter для BRP Ski-Doo Grand-Touring Sport 550F - 2010
-
№АртикулНазвание
-
1515176744 Fuse Battery Wire. With Electric StarterFuse Battery Wire. With Electric Starter
-
2410917200 Fuse, 30 Amperes. With Electric StarterFuse, 30 Amperes. With Electric Starter
-
3515176745 Ground WireGround Wire
-
4250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
5233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
6207581646 Hex. Flanged Screw M8 X 16, Scotch GripHex. Flanged Screw M8 X 16, Scotch Grip
-
7234481608 Serrated Lock Washer 8 mmSerrated Lock Washer 8 mm
-
8515175905 Battery Wire. With Electric StarterBattery Wire. With Electric Starter
-
9515176795 ClipClip
-
10232561414 Elastic Stop Nut M6. With Electric StarterElastic Stop Nut M6. With Electric Starter
-
11232561414 Elastic Stop Nut M6. With Electric StarterElastic Stop Nut M6. With Electric Starter
-
12415107300 InsertInsert
-
12415107300 Insert. With Electric StarterInsert. With Electric Starter
-
13515176886 Battery Support Ass'y. With Electric StarterBattery Support Ass'y. With Electric Starter
-
14207662044 Hex. Flanged Screw M6 X 20. With Electric StarterHex. Flanged Screw M6 X 20. With Electric Starter
-
14207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
15250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
16410301203 Battery, 18 Amperes. Includes 16 to 16aBattery, 18 Amperes. Includes 16 to 16a
-
16a295500849 Battery Fastener KitBattery Fastener Kit
-
17515176368 Battery Strip. With Electric StarterBattery Strip. With Electric Starter
-
18515176501 Starter Relay. With Electric StarterStarter Relay. With Electric Starter
-
19390402200 Pop Rivet 3/16''. With Electric StarterPop Rivet 3/16''. With Electric Starter
-
20207661644 Hex. Flanged Screw M6 X 16. With Electric StarterHex. Flanged Screw M6 X 16. With Electric Starter
-
21233261414 Hex. Flanged Elastic Nut M6. With Electric StarterHex. Flanged Elastic Nut M6. With Electric Starter
-
22515176358 Ground Wire. With Electric StarterGround Wire. With Electric Starter
-
23250200041 Lock Washer Serrated M6. With Electric StarterLock Washer Serrated M6. With Electric Starter
-
24515176556 Battery Wire. With Electric StarterBattery Wire. With Electric Starter
-
25515175919 Protector Cap. With Electric StarterProtector Cap. With Electric Starter
-
26232561414 Elastic Stop Nut M6. With Electric StarterElastic Stop Nut M6. With Electric Starter
-
27710000495 Protector Cap. With Electric StarterProtector Cap. With Electric Starter
-
28293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
A414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
B293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
C293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
D293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
E293750009 Tie-Rap 173 mmTie-Rap 173 mm
