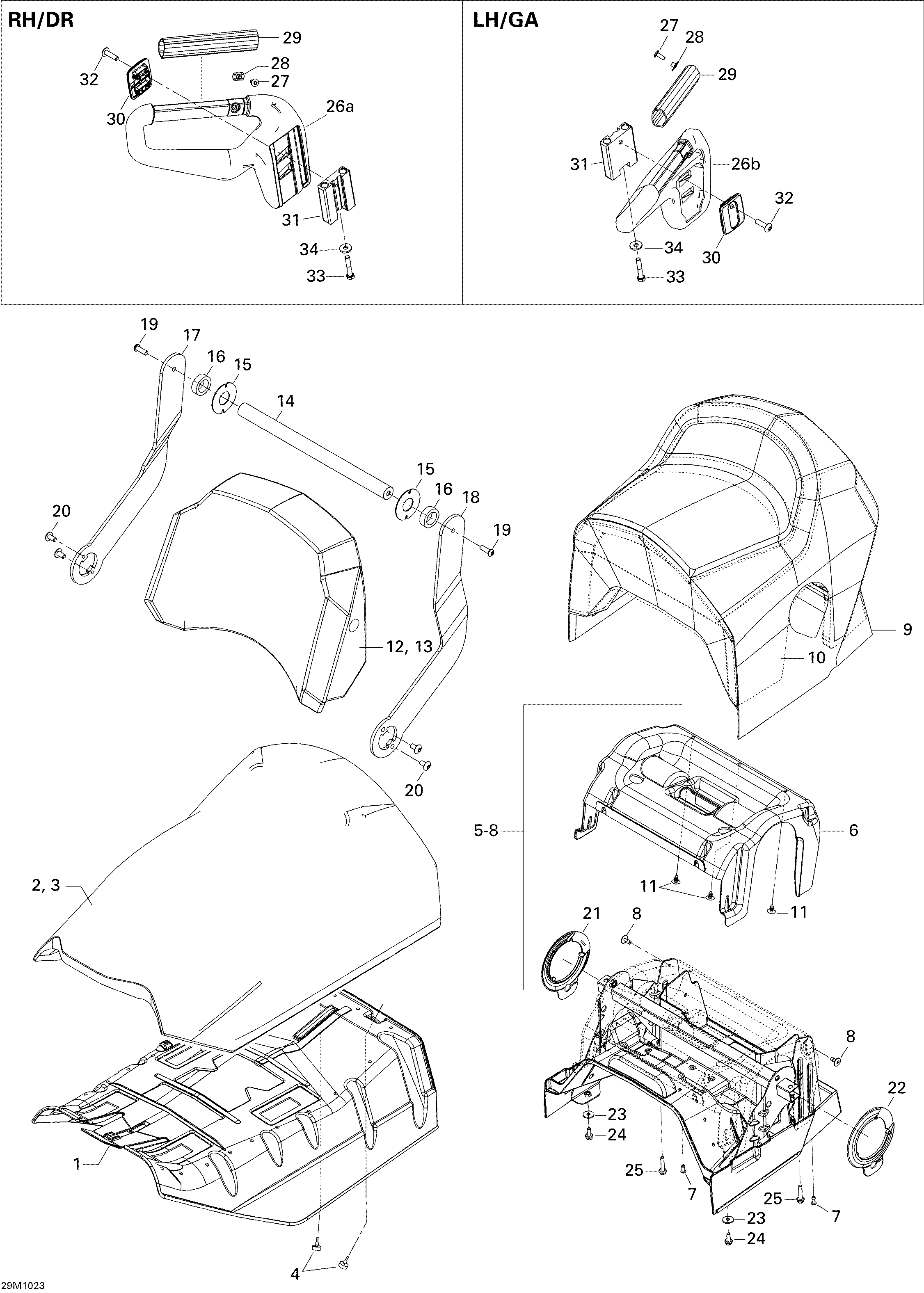

09- Seat для BRP Ski-Doo Grand-Touring Sport 550F - 2010
-
№АртикулНазвание
-
1510004775 Front Seat BaseFront Seat Base
-
2510005181 Seat CoverSeat Cover
-
3510004777 Front Seat FoamFront Seat Foam
-
4708000759 Rubber StopperRubber Stopper
-
5510005182 Seat Base Ass'y. Includes 5 to 8Seat Base Ass'y. Includes 5 to 8
-
6510004423 Foam SupportFoam Support
-
7390410100 Pop Rivet 3/16''Pop Rivet 3/16''
-
8293150100 Pop Rivet 3/16''Pop Rivet 3/16''
-
9510005187 Seat CoverSeat Cover
-
10510004791 Rear Seat FoamRear Seat Foam
-
11414644300 DartDart
-
12510004782 Backrest FoamBackrest Foam
-
13510005309 Backrest CoverBackrest Cover
-
14510004377 Upper Backrest AxleUpper Backrest Axle
-
15510004379 WasherWasher
-
16510004378 Rubber ShimRubber Shim
-
17510004373 RH Arm, BlackRH Arm, Black
-
18510004375 LH Arm, BlackLH Arm, Black
-
19250000283 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
20250000198 Torx Truss Screw M8 X 16Torx Truss Screw M8 X 16
-
21510004883 Spacer RHSpacer RH
-
22510004884 Spacer LHSpacer LH
-
23224061201 Flat WasherFlat Washer
-
24207361644 Hex. Screw M6 X 16, Scotch GripHex. Screw M6 X 16, Scotch Grip
-
25207563044 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
26a510005070 RH Handle Ass'y. Includes 26a to 35RH Handle Ass'y. Includes 26a to 35
-
26b510005071 LH Handle Ass'y. Includes 26b to 35LH Handle Ass'y. Includes 26b to 35
-
27250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
28293100003 Nut M6Nut M6
-
29510004449 Handle GripHandle Grip
-
30510004405 MouldingMoulding
-
31510005218 Handle LinkHandle Link
-
32250000197 Torx Truss Screw M8 X 30Torx Truss Screw M8 X 30
-
33207084544 Hex. Screw M8 X 45Hex. Screw M8 X 45
-
34503183200 Washer, YellowWasher, Yellow
