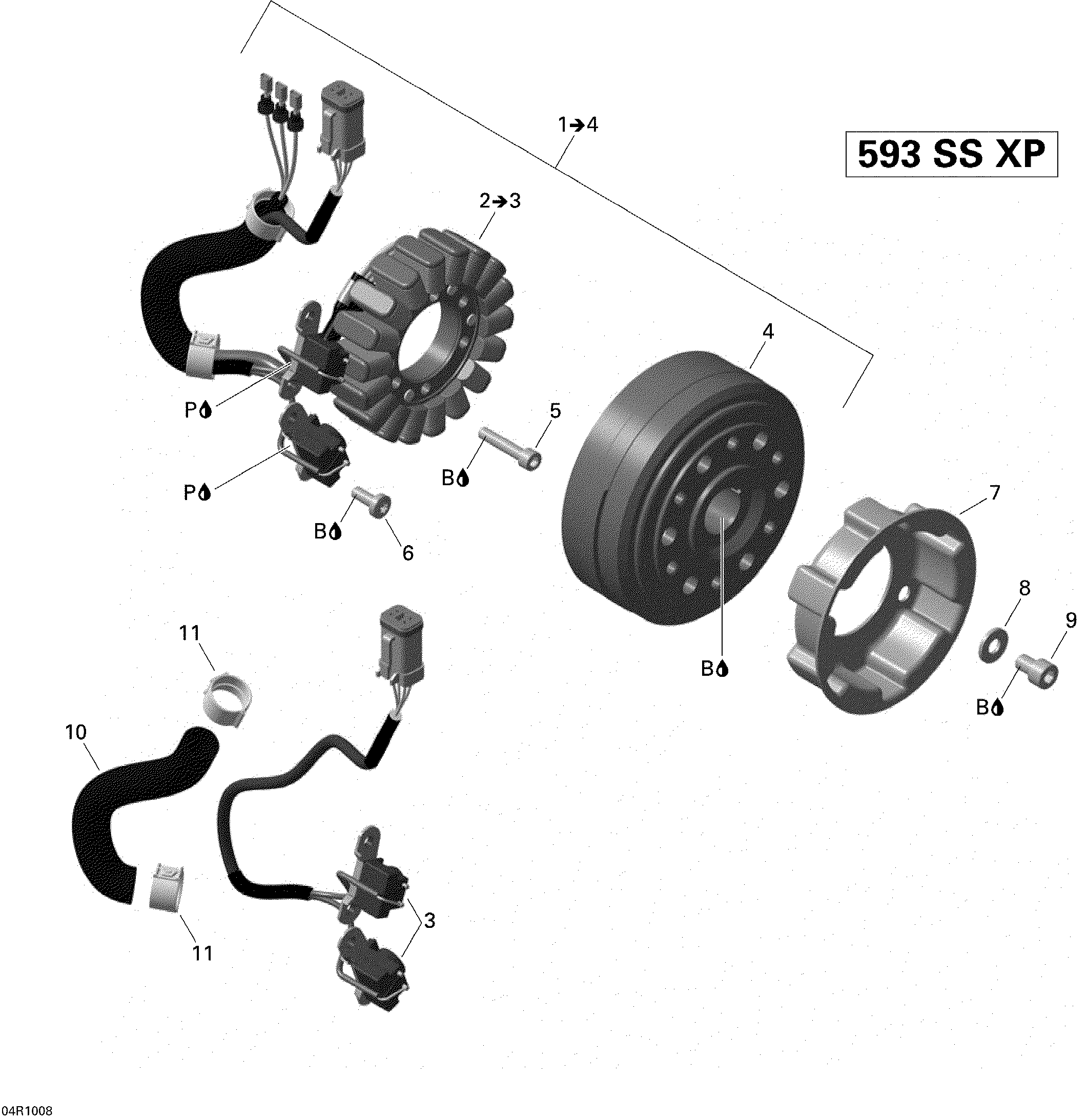

03- Magneto для BRP Ski-Doo MX Z TNT 600 - 2010
-
№АртикулНазвание
-
2420889909 Stator Plate. Includes 2 to 3Stator Plate. Includes 2 to 3
-
3420966804 Pickup Ass'yPickup Ass'y
-
4420665722 FlywheelFlywheel
-
5205063044 Socket Head Screw M6 X 30Socket Head Screw M6 X 30
-
6420640321 Hex. Taptite Screw M6 X 16Hex. Taptite Screw M6 X 16
-
7420852590 Starting PulleyStarting Pulley
-
8420827405 Flat WasherFlat Washer
-
9420841520 Socket Head Screw M8 X 12Socket Head Screw M8 X 12
-
10420460871 TubeTube
-
11420960896 Conduit ClipConduit Clip
-
B293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
P293800081 Loctite 5910, 300 mlLoctite 5910, 300 ml
