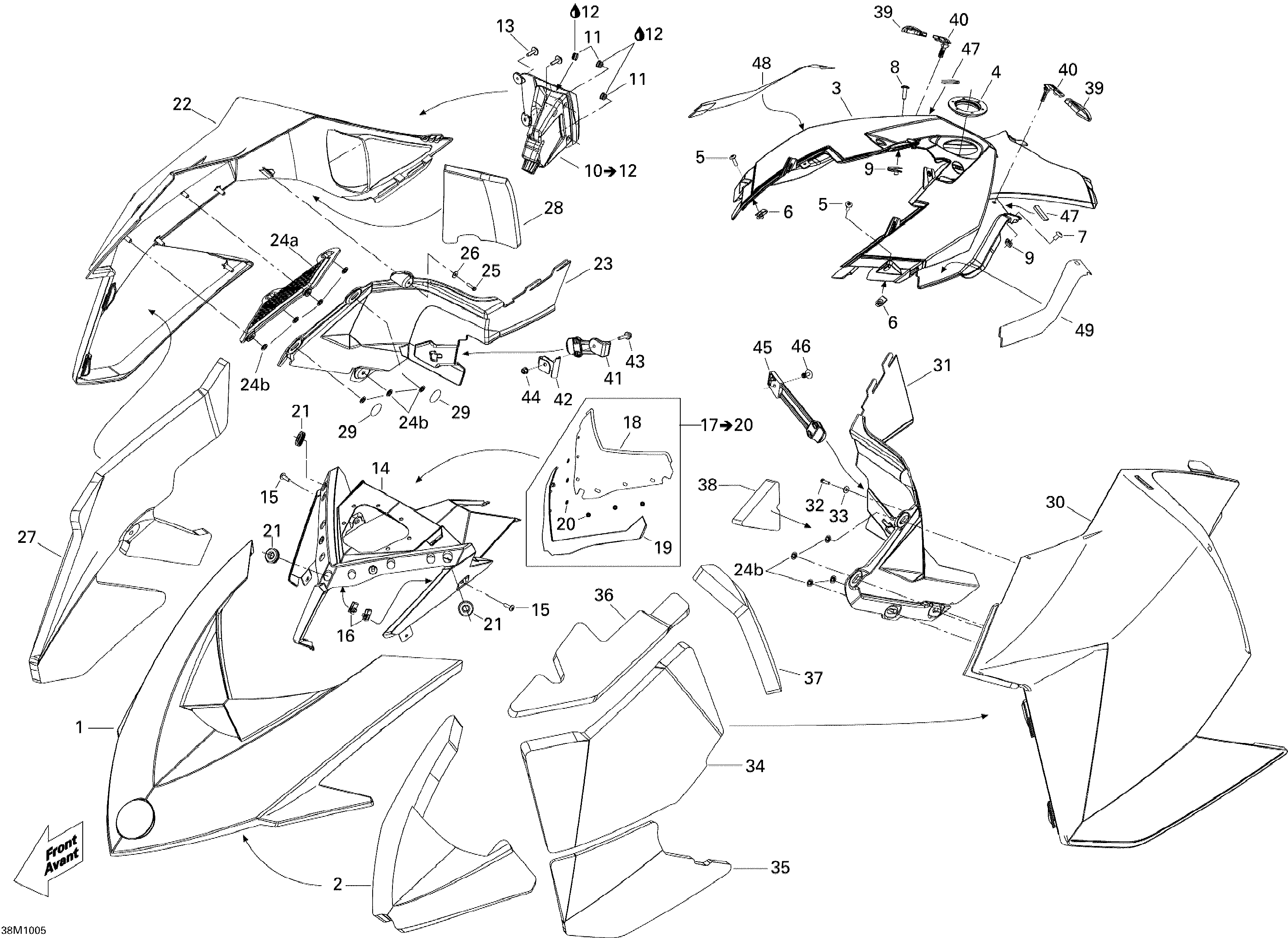

09- Hood для BRP Ski-Doo MX Z TNT 600 - 2010
-
№АртикулНазвание
-
1517304492 HoodHood
-
2517303990 Hood FoamHood Foam
-
3517304493 ConsoleConsole
-
4517304518 Console NutConsole Nut
-
5250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
6250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
7250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
8250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
9250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
10517304322 RH Console. Includes 10 to 12RH Console. Includes 10 to 12
-
11275500241 Cap, BlackCap, Black
-
12413408300 Loctite, Black Max, 3 mlLoctite, Black Max, 3 ml
-
13250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
14517303603 Indicator SupportIndicator Support
-
15250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
16250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
17517304226 Low Windshield Ass'y. Includes 17 to 20Low Windshield Ass'y. Includes 17 to 20
-
19517303757 Windshield SupportWindshield Support
-
20732610072 Push NutPush Nut
-
21517303756 GrommetGrommet
-
22517304422 RH PanelRH Panel
-
23517304420 RH Moulding Panel, Viper RedRH Moulding Panel, Viper Red
-
24a517303622 GrillGrill
-
24b732610072 Push NutPush Nut
-
25241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
26234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
27517304280 RH Center FoamRH Center Foam
-
28517303982 RH Panel Rear FoamRH Panel Rear Foam
-
29518325560 Adhesive PatchAdhesive Patch
-
30517304426 LH PanelLH Panel
-
31517304427 LH Moulding PanelLH Moulding Panel
-
32241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
33234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
34517303983 LH Panel Center FoamLH Panel Center Foam
-
35517303984 LH Panel Lower FoamLH Panel Lower Foam
-
36517303985 LH Panel Upper FoamLH Panel Upper Foam
-
37517303986 LH Panel Rear FoamLH Panel Rear Foam
-
38517303987 FoamFoam
-
39517304435 End Piece LatchEnd Piece Latch
-
40517303981 Panel LatchPanel Latch
-
41517303612 Panel LatchPanel Latch
-
42517304221 Latch SupportLatch Support
-
43207652044 Flanged Hex. Screw M5 X 20Flanged Hex. Screw M5 X 20
-
44233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
45517303808 Panel LatchPanel Latch
-
46293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
47517304105 Console DecalConsole Decal
-
48517304103 RH DecalRH Decal
-
49517304104 LH DecalLH Decal
