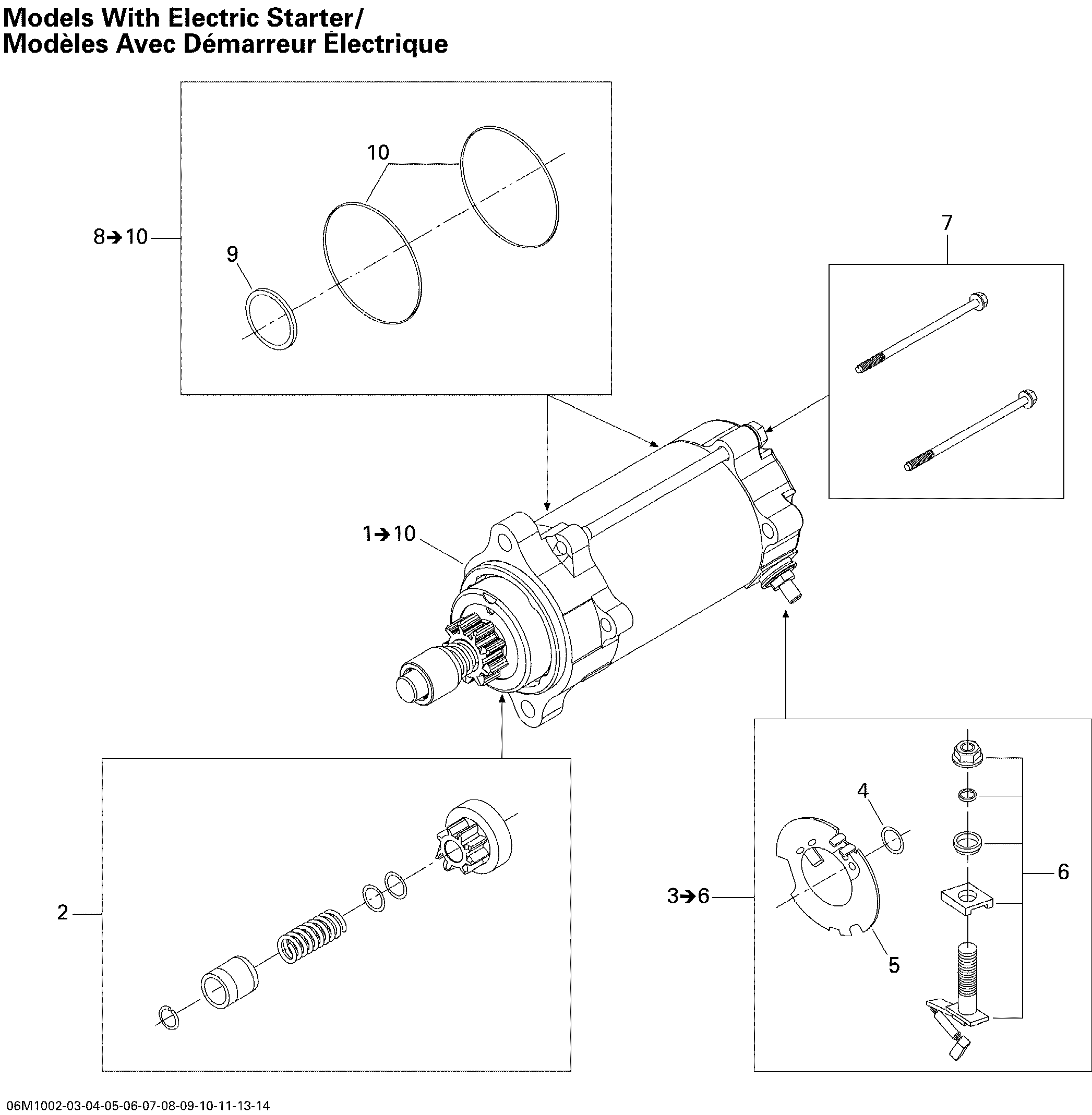

04- Electric Starter для BRP Ski-Doo MX Z TNT 600 - 2010
-
№АртикулНазвание
-
1515176858 Starter. Includes 1 to 10Starter. Includes 1 to 10
-
2415129441 Clutch KitClutch Kit
-
3415129333 Brush Kit. Includes 3 to 6Brush Kit. Includes 3 to 6
-
4410204500 Flat WasherFlat Washer
-
5410922978 Brush HolderBrush Holder
-
6410212100 Brush KitBrush Kit
-
7415129341 Starter BoltStarter Bolt
-
8415129342 O-Ring Kit. Includes 8 to 10O-Ring Kit. Includes 8 to 10
-
9278000696 O-RingO-Ring
-
10278000695 O-RingO-Ring
