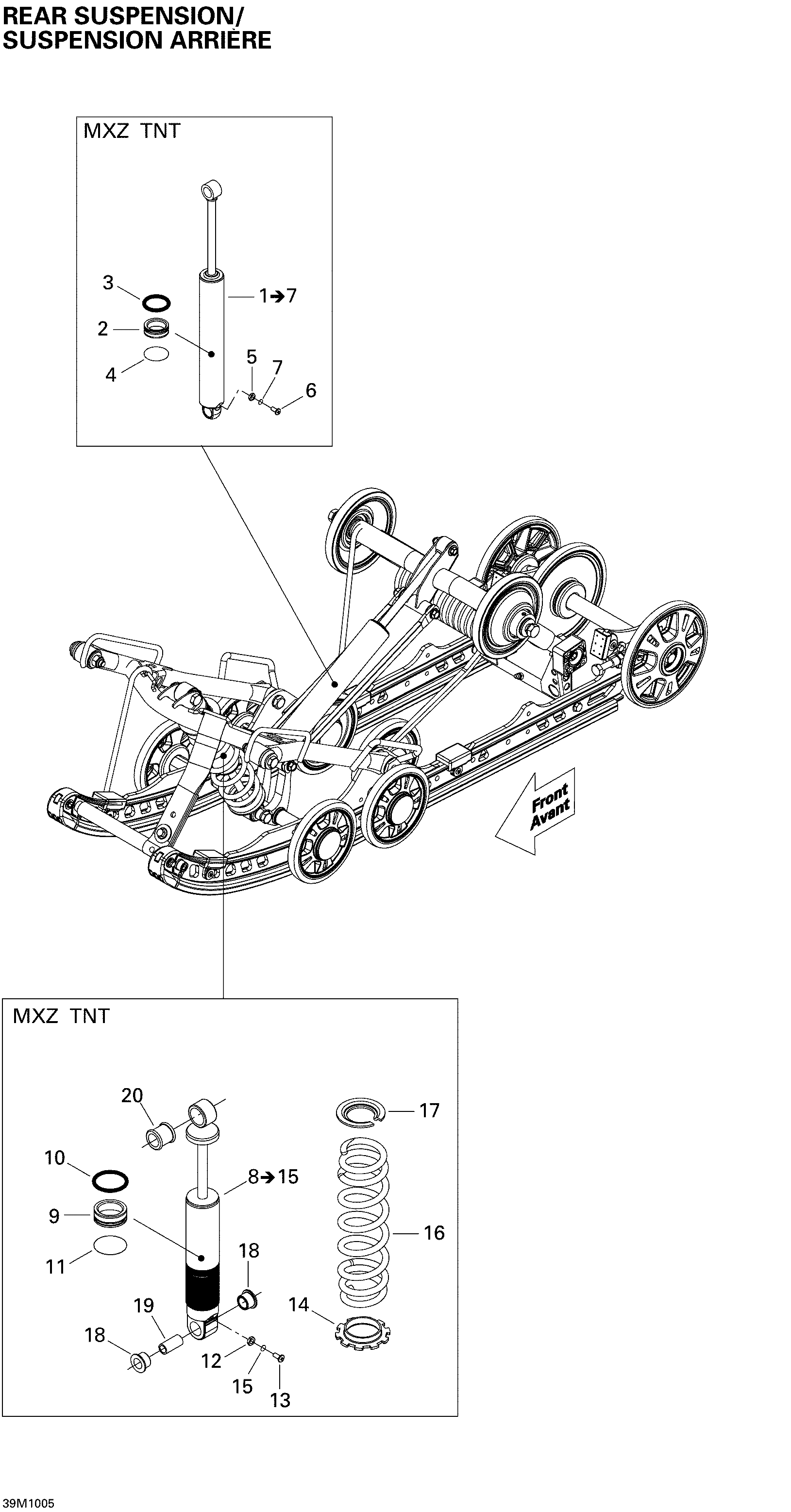

08- Rear Suspension Shocks для BRP Ski-Doo MX Z TNT 600 - 2010
-
№АртикулНазвание
-
1503192023 Rear Shock. Includes 1 to 7Rear Shock. Includes 1 to 7
-
2503189309 Free PistonFree Piston
-
3414888312 O-RingO-Ring
-
4503189308 Piston RingPiston Ring
-
5505070398 Air Valve RingAir Valve Ring
-
6505070399 ScrewScrew
-
7505070400 O-RingO-Ring
-
8503191791 Center Shock. Includes 8 to 15Center Shock. Includes 8 to 15
-
9503189309 Free PistonFree Piston
-
10414888312 O-RingO-Ring
-
11503189308 Piston RingPiston Ring
-
12505070398 Air Valve RingAir Valve Ring
-
13505070399 ScrewScrew
-
14414888316 Spring CollarSpring Collar
-
15505070400 O-RingO-Ring
-
16503191329 SpringSpring
-
17503192029 Spring StopperSpring Stopper
-
18503189117 CushionCushion
-
19503189282 BushingBushing
-
20503189271 CushionCushion
