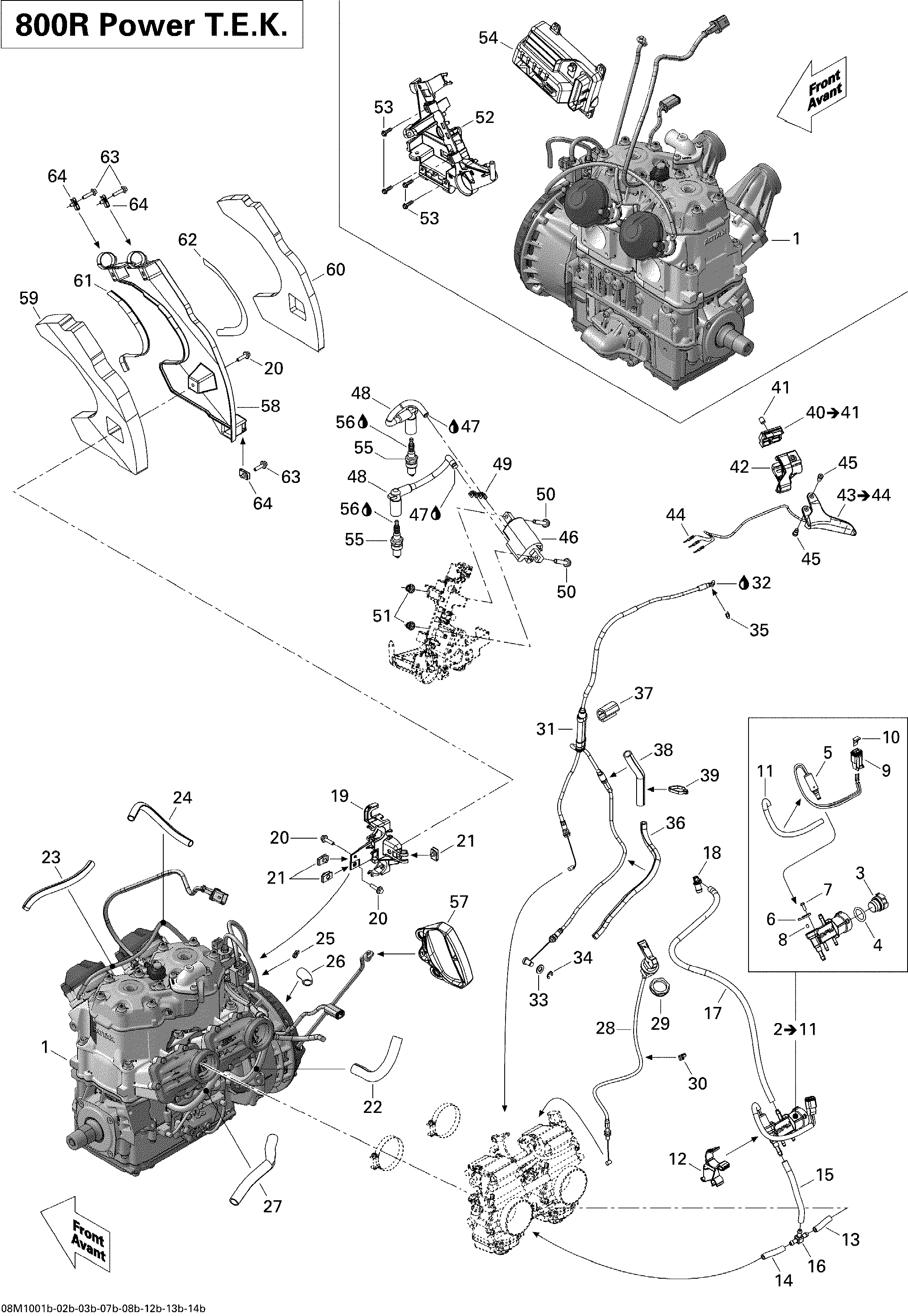

01- Engine And Engine Support 2- 800R PTEK для BRP Ski-Doo Summit HillClimb - 2010
-
№АртикулНазвание
-
1400800322 Engine 800REngine 800R
-
2512060002 Pressure Manifold Ass'y. Includes 2 to 11Pressure Manifold Ass'y. Includes 2 to 11
-
3270600009 CapCap
-
4293300042 O-RingO-Ring
-
5515175701 Solenoid ValveSolenoid Valve
-
6415061600 Solenoid LockSolenoid Lock
-
7241140060 Screw K40 X 10Screw K40 X 10
-
8404161825 Starter JetStarter Jet
-
9515175670 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
10515175675 Female Lock, 2 CircuitsFemale Lock, 2 Circuits
-
11515175332 Vinyl Tubing, Low TemperatureVinyl Tubing, Low Temperature
-
12512060229 DPM SupportDPM Support
-
13415080200 Hose, PolyurethaneHose, Polyurethane
-
14415080200 Hose, PolyurethaneHose, Polyurethane
-
15415080200 Hose, PolyurethaneHose, Polyurethane
-
16414729300 T-FittingT-Fitting
-
17415080200 Hose, PolyurethaneHose, Polyurethane
-
18414580700 Male ConnectorMale Connector
-
19512060298 Solenoid SupportSolenoid Support
-
20207652044 Flanged Hex. Screw M5 X 20Flanged Hex. Screw M5 X 20
-
21250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
22409901800 Tubing 13 mmTubing 13 mm
-
23415079900 Tubing 10 mmTubing 10 mm
-
24415079900 Tubing 10 mmTubing 10 mm
-
25293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
26409901800 Tubing 13 mmTubing 13 mm
-
27409901800 Tubing 13 mmTubing 13 mm
-
28512060153 Choke CableChoke Cable
-
29512060016 Plastic NutPlastic Nut
-
30414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
31512060571 Throttle CableThrottle Cable
-
32293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
33234081100 Flat Washer 8 mmFlat Washer 8 mm
-
34414753500 CirclipCirclip
-
35414274500 CirclipCirclip
-
36515175442 Tubing 6 mmTubing 6 mm
-
37512060313 ProtectorProtector
-
38415079900 Tubing 10 mmTubing 10 mm
-
39414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
40512060198 Upper Housing. Includes 40 to 41Upper Housing. Includes 40 to 41
-
41414440800 Set Screw M8 X 10Set Screw M8 X 10
-
42512060430 Lower HousingLower Housing
-
43512060468 Throttle Handle Ass'y. Includes 43 to 44Throttle Handle Ass'y. Includes 43 to 44
-
44515175232 Male TerminalMale Terminal
-
45732601143 Flanged ScrewFlanged Screw
-
46512059968 Ignition CoilIgnition Coil
-
47293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
48512060291 Cable Ass'yCable Ass'y
-
49410914600 Plastic Clip, Spark Plug WirePlastic Clip, Spark Plug Wire
-
50207663044 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
51233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
52512060278 Coil SupportCoil Support
-
53241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
54512060530 Calibrated Module 800RCalibrated Module 800R
-
55415128524 Spark Plug, NGK BR9ECS, 0.8 mmSpark Plug, NGK BR9ECS, 0.8 mm
-
56293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
57512060136 Starter GripStarter Grip
-
58512060338 Noise ShieldNoise Shield
-
59512060341 Inner Noise FoamInner Noise Foam
-
60512060342 Outer Noise FoamOuter Noise Foam
-
61512060574 Heat ShieldHeat Shield
-
62512060575 Heat ShieldHeat Shield
-
63207652044 Flanged Hex. Screw M5 X 20Flanged Hex. Screw M5 X 20
-
64250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
