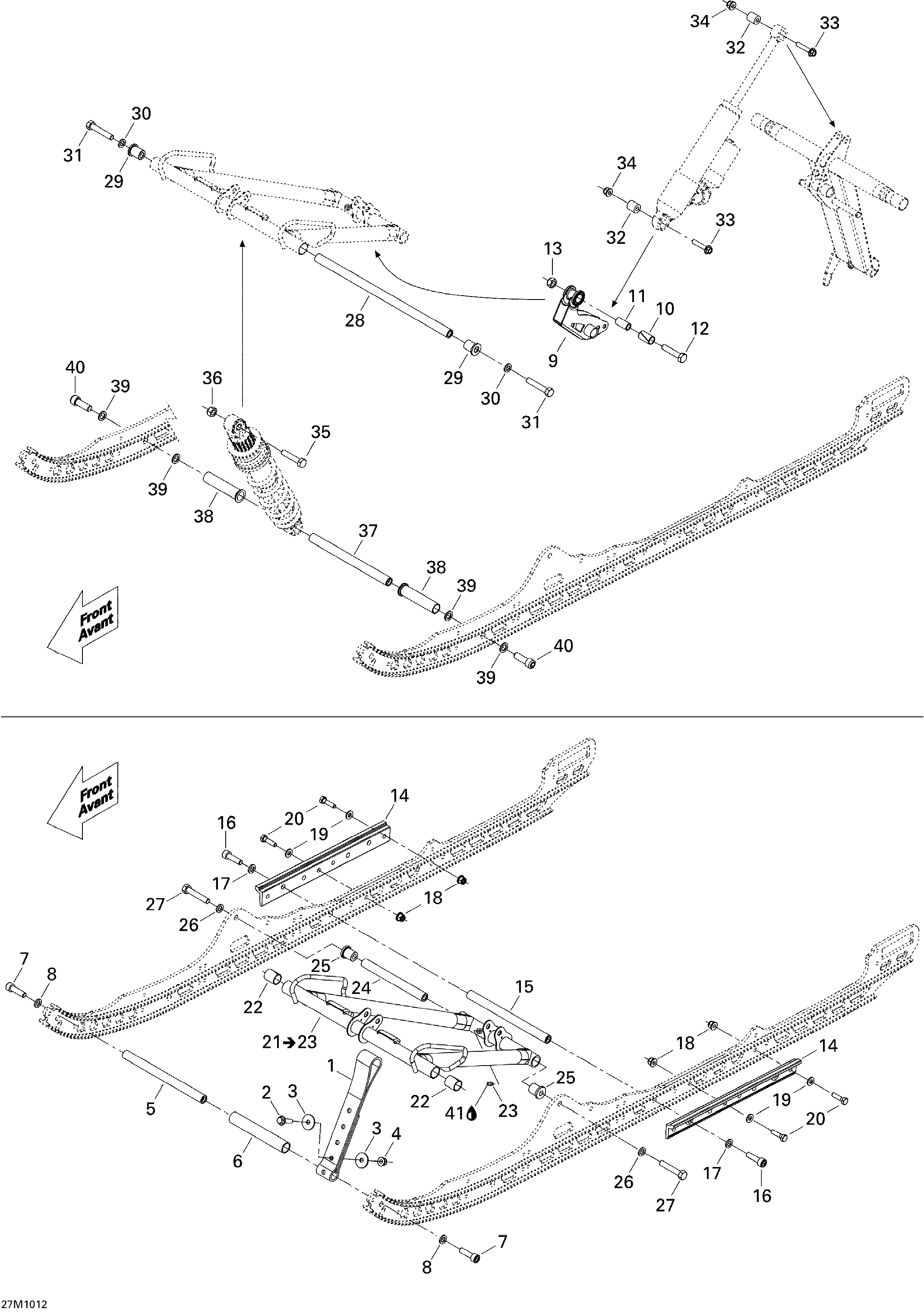

08- Front Arm для BRP Ski-Doo Summit HillClimb - 2010
-
№АртикулНазвание
-
1503192360 Stopper StrapStopper Strap
-
2207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
3224081301 Flat WasherFlat Washer
-
4233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
5503191260 Axle StrapAxle Strap
-
6503191448 SpacerSpacer
-
7205503544 Socket Head Screw M10 X 35, Scotch GripSocket Head Screw M10 X 35, Scotch Grip
-
8503189564 WasherWasher
-
9503192211 RockerRocker
-
10503191422 CushionCushion
-
11503189282 BushingBushing
-
12207005044 Hex. Screw M10 X 50Hex. Screw M10 X 50
-
13233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
14503191870 Reinforcement RailReinforcement Rail
-
15503191260 Axle StrapAxle Strap
-
16205503544 Socket Head Screw M10 X 35, Scotch GripSocket Head Screw M10 X 35, Scotch Grip
-
17503189564 WasherWasher
-
18233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
19503189157 WasherWasher
-
20207183044 Hex. Screw M8 X 30Hex. Screw M8 X 30
-
21503191580 Front Arm Ass'y. Includes 21 to 23Front Arm Ass'y. Includes 21 to 23
-
22503191556 Extended BushingExtended Bushing
-
23408200700 Grease FittingGrease Fitting
-
24503191279 Lower ShaftLower Shaft
-
25503189324 CushionCushion
-
26503189564 WasherWasher
-
27207205586 Hex. Screw M10 X 55, Scotch GripHex. Screw M10 X 55, Scotch Grip
-
28503191215 Upper ShaftUpper Shaft
-
29503191262 BushingBushing
-
30503189564 WasherWasher
-
31207205586 Hex. Screw M10 X 55, Scotch GripHex. Screw M10 X 55, Scotch Grip
-
32414936000 CushionCushion
-
33207684044 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
34233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
35207005044 Hex. Screw M10 X 50Hex. Screw M10 X 50
-
36233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
37503191258 Center Shock ShaftCenter Shock Shaft
-
38503191259 Center BushingCenter Bushing
-
39503189276 WasherWasher
-
40205523544 Socket Head Screw M12 X 35, Scotch GripSocket Head Screw M12 X 35, Scotch Grip
-
41293550033 Suspension Grease, 10 X 400 GSuspension Grease, 10 X 400 G
