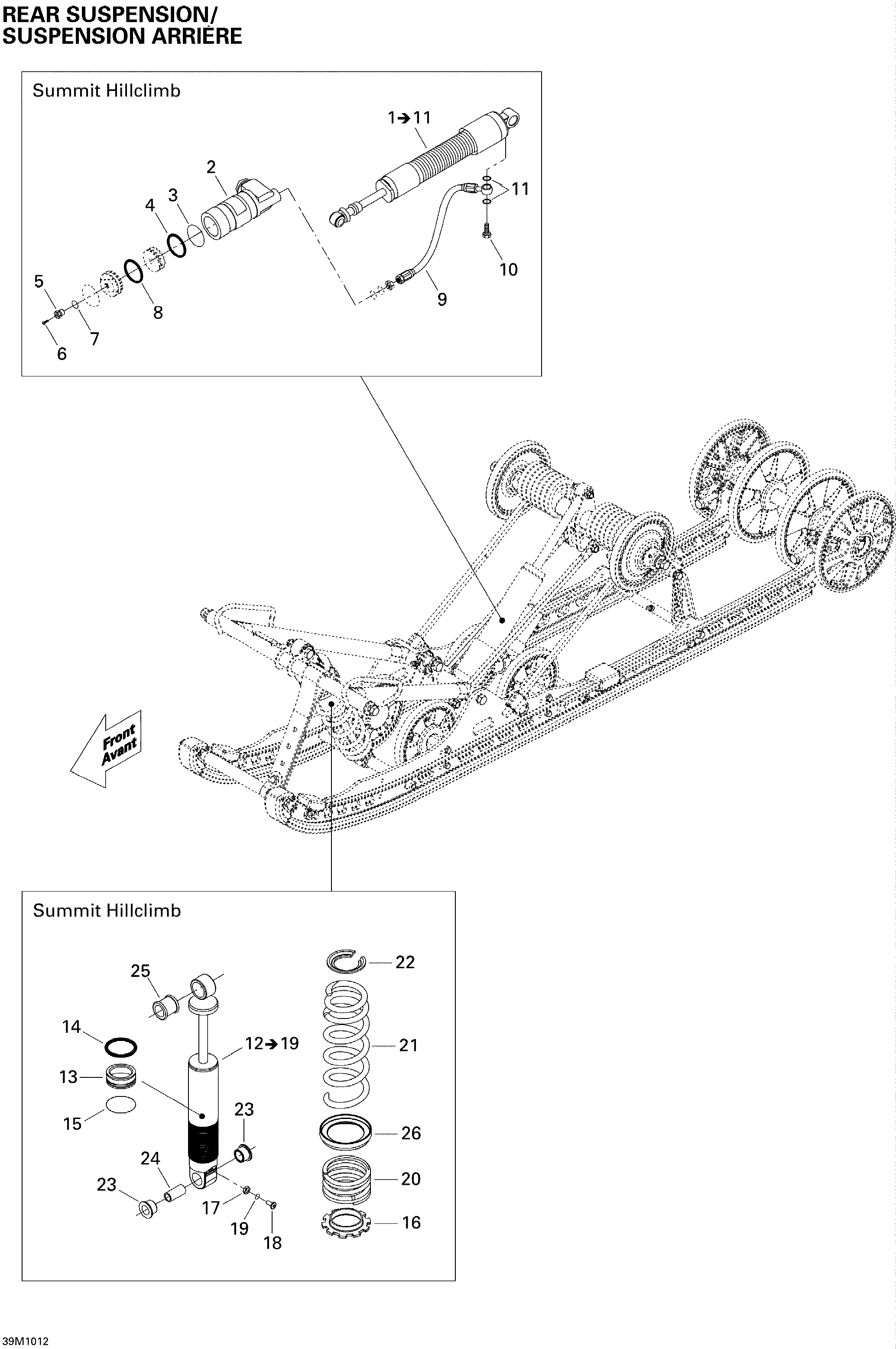

08- Rear Suspension Shocks для BRP Ski-Doo Summit HillClimb - 2010
-
№АртикулНазвание
-
1503192069 Rear Shock. Includes 1 to 11Rear Shock. Includes 1 to 11
-
2415128594 ReservoirReservoir
-
3415093807 O-RingO-Ring
-
4415093806 Piston RingPiston Ring
-
5505070398 Air Valve RingAir Valve Ring
-
6505070399 ScrewScrew
-
7505070400 O-RingO-Ring
-
8415093804 O-RingO-Ring
-
9415128593 Hose Ass'yHose Ass'y
-
10415093810 BoltBolt
-
11415038700 O-RingO-Ring
-
12503192285 Center Shock. Includes 12 to 19Center Shock. Includes 12 to 19
-
13503189309 Free PistonFree Piston
-
14414888312 O-RingO-Ring
-
15503189308 Piston RingPiston Ring
-
16414888316 Spring CollarSpring Collar
-
17505070398 Air Valve RingAir Valve Ring
-
18505070399 ScrewScrew
-
19505070400 O-RingO-Ring
-
20503191343 SpringSpring
-
21503192279 SpringSpring
-
22503192029 Spring StopperSpring Stopper
-
23503189117 CushionCushion
-
24503189282 BushingBushing
-
25503189271 CushionCushion
-
26503191281 Spring SpacerSpring Spacer
