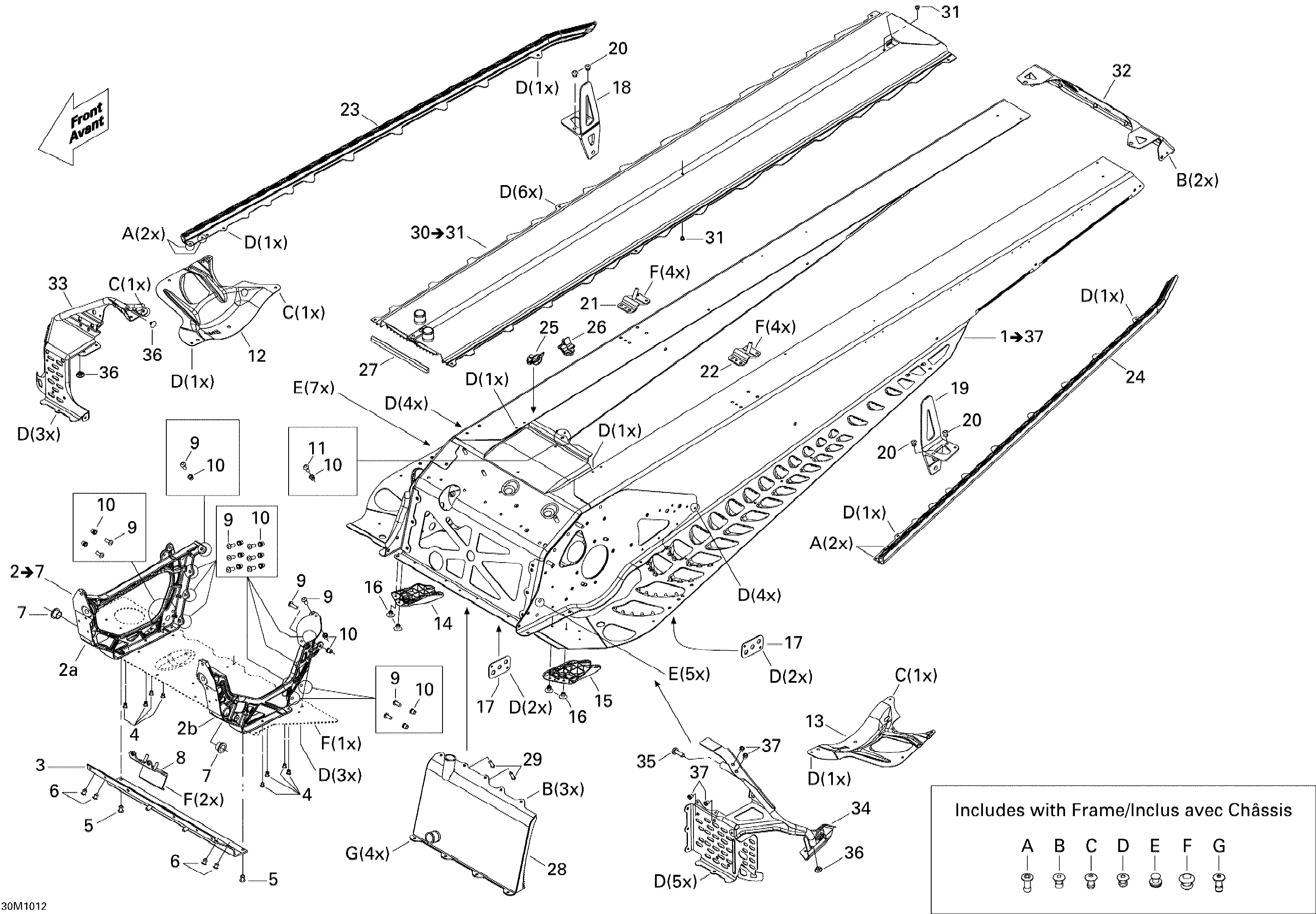

09- Frame для BRP Ski-Doo Summit HillClimb - 2010
-
№АртикулНазвание
-
1415129466 Frame 154''. Includes 1 to 37Frame 154''. Includes 1 to 37
-
2518326290 E Module. Includes 2 to 7E Module. Includes 2 to 7
-
2a518325922 RH MemberRH Member
-
2b518325923 LH MemberLH Member
-
3518326198 Front MemberFront Member
-
4293150144 Stavex RivetStavex Rivet
-
5293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
6293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
7505070954 CushionCushion
-
8518325943 MAG Engine SupportMAG Engine Support
-
9207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
10233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
11207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
12518324874 RH ReinforcementRH Reinforcement
-
13518324875 LH ReinforcementLH Reinforcement
-
14518325782 RH DeflectorRH Deflector
-
15518325783 LH DeflectorLH Deflector
-
16293150104 Pop Rivet 3/16'', BlackPop Rivet 3/16'', Black
-
17518201321 Reinforcement PlateReinforcement Plate
-
18518324976 RH Suspension BracketRH Suspension Bracket
-
19518324977 LH Suspension BracketLH Suspension Bracket
-
20293150147 Hemlock RivetHemlock Rivet
-
21518325973 RH Rear BaseRH Rear Base
-
22518325974 LH Rear BaseLH Rear Base
-
23518325159 RH RollerRH Roller
-
24518325160 LH RollerLH Roller
-
25518325653 RH SealRH Seal
-
26518325654 LH SealLH Seal
-
27293200105 Neoprene SealNeoprene Seal
-
28518326486 Front RadiatorFront Radiator
-
29250300027 Clinch Stud M6 X 20Clinch Stud M6 X 20
-
30518325669 Rear Radiator, 154''. Includes 30 to 31Rear Radiator, 154''. Includes 30 to 31
-
31293150144 Stavex RivetStavex Rivet
-
32518325421 Rear CapRear Cap
-
33518326216 RH StirupRH Stirup
-
34518326239 LH StirupLH Stirup
-
35250000248 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
36293730042 DartDart
-
37293450268 InsertInsert
-
A390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
B390909200 Avex RivetAvex Rivet
-
C390909100 Avex RivetAvex Rivet
-
D293150144 Stavex RivetStavex Rivet
-
E293150146 Henrob RivetHenrob Rivet
-
F293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
G293150175 Monobolt RivetMonobolt Rivet
