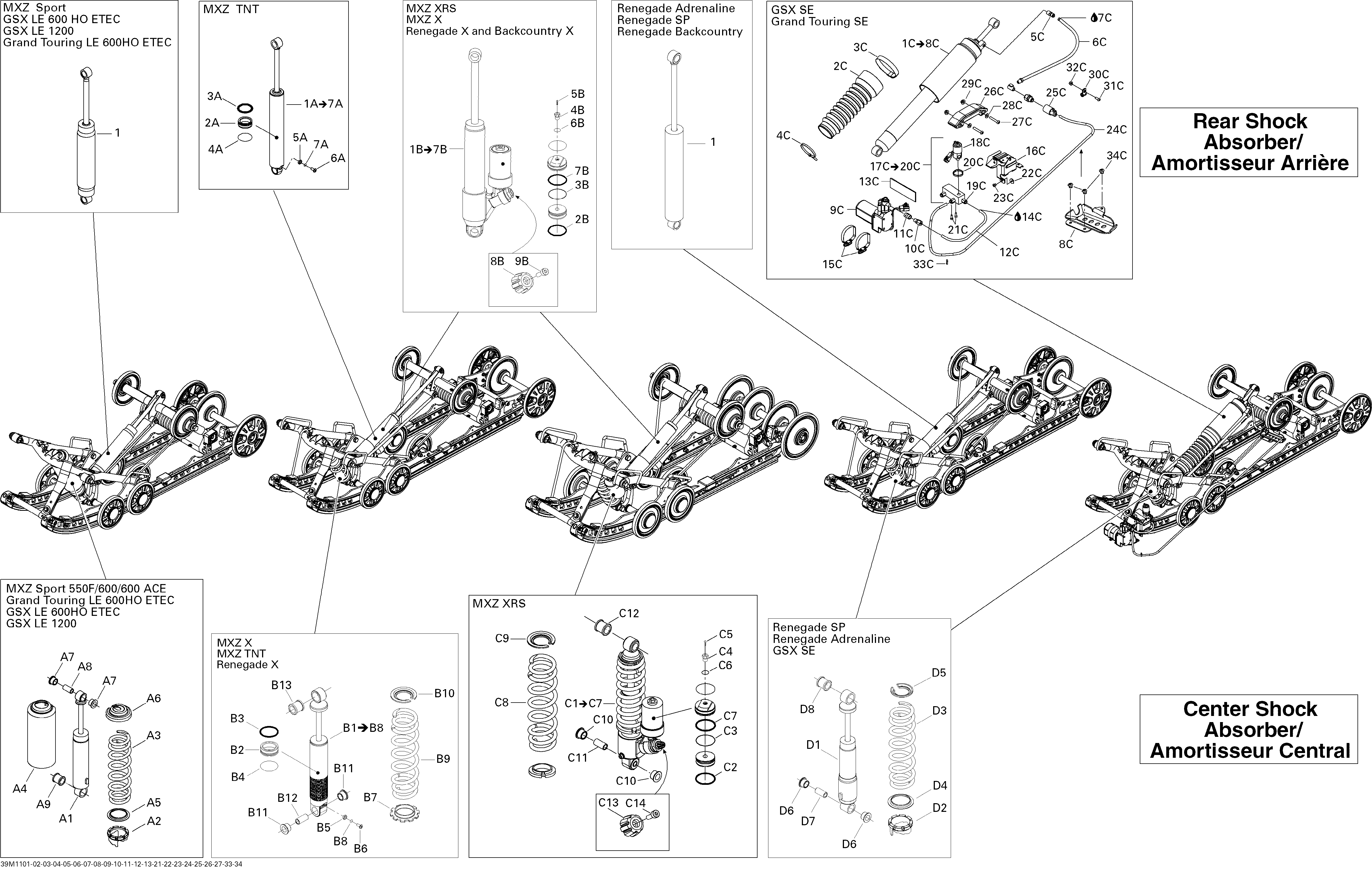

08- Rear Suspension Shocks SE 137'' для BRP Ski-Doo Grand Touring LE & SE 1200 XR - 2011
-
№АртикулНазвание
-
1c503192648 Rear Shock. Includes 1C to 8CRear Shock. Includes 1C to 8C
-
2c570278300 Protection BootProtection Boot
-
3c293650064 Tridon ClampTridon Clamp
-
4c293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
5c503191939 Male Pneumatic ConnectorMale Pneumatic Connector
-
6c503192649 Pneumatic Hose Ass'yPneumatic Hose Ass'y
-
7c293800018 Loctite 592, Pipe Sealant, 50 mlLoctite 592, Pipe Sealant, 50 ml
-
9c503192517 CompressorCompressor
-
10c706000940 Check ValveCheck Valve
-
11c706000869 ConnectorConnector
-
12c415129507 HoseHose
-
13c503191940 Rubber DamperRubber Damper
-
14c293800018 Loctite 592, Pipe Sealant, 50 mlLoctite 592, Pipe Sealant, 50 ml
-
15c293650090 Norma Gear ClampNorma Gear Clamp
-
16c503191932 Pressure Collector BracketPressure Collector Bracket
-
17c503192593 Pressure Collector Ass'y. Includes 17C to 20CPressure Collector Ass'y. Includes 17C to 20C
-
18c503189097 ValveValve
-
19c706000869 ConnectorConnector
-
20c414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
21c205041284 Socket Head Screw M4 X 12Socket Head Screw M4 X 12
-
22c517124300 WasherWasher
-
23C390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
24c415129507 HoseHose
-
25c503191826 CapCap
-
26c503191935 Protector PadProtector Pad
-
27C250000406 Socket Screw Head Flange M6 X 35Socket Screw Head Flange M6 X 35
-
28c224061121 Flat WasherFlat Washer
-
29c232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
30c705600459 ClampClamp
-
31c235551494 Torx Screw M5 X 14Torx Screw M5 X 14
-
32c233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
33c414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
D1503191887 Center Shock. Includes D1 to D8Center Shock. Includes D1 to D8
-
D2505070150 Adjustment CamAdjustment Cam
-
D3503191879 SpringSpring
-
D4503191872 Spring GuideSpring Guide
-
D5503192029 Spring StopperSpring Stopper
-
D6503189117 CushionCushion
-
D7503189282 BushingBushing
-
D8503189271 CushionCushion
