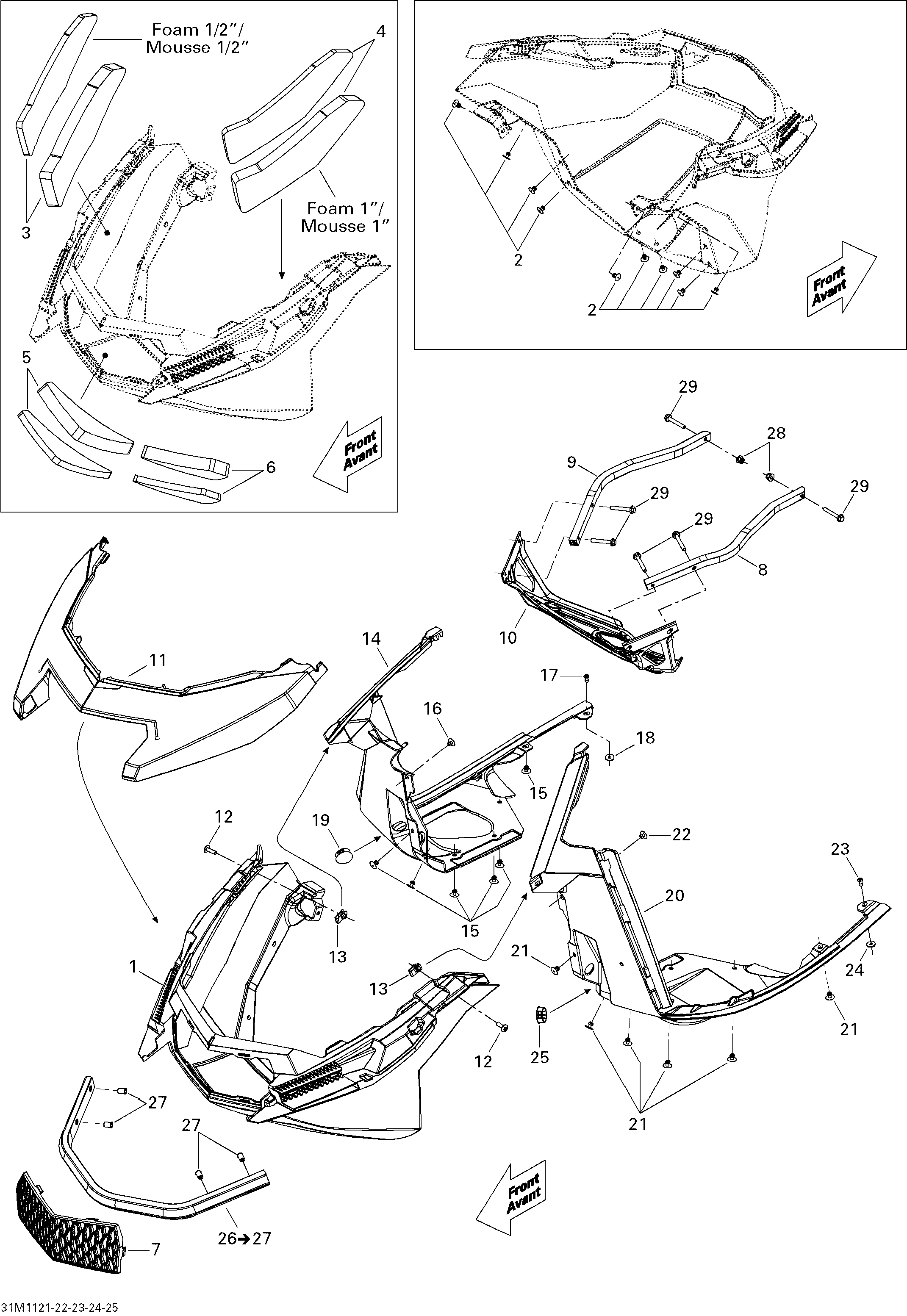

09- Bottom Pan для BRP Ski-Doo Grand Touring LE & SE 1200 XR - 2011
-
№АртикулНазвание
-
1502006873 Front Bottom PanFront Bottom Pan
-
2293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
3502007217 RH Upper Hull FoamRH Upper Hull Foam
-
4502007219 LH Upper Hull FoamLH Upper Hull Foam
-
5502007220 RH Middle Hull FoamRH Middle Hull Foam
-
6502007223 LH Middle Hull FoamLH Middle Hull Foam
-
7502006887 Botton Pan GrillBotton Pan Grill
-
8502006925 LH SupportLH Support
-
9502006926 RH SupportRH Support
-
10502006938 BracketBracket
-
11502006898 Bottom Pan Cap. Grand Touring LEBottom Pan Cap. Grand Touring LE
-
11502007118 Bottom Pan Cap. Grand Touring SEBottom Pan Cap. Grand Touring SE
-
12250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
13250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
14502006877 RH Bottom PanRH Bottom Pan
-
15293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
16293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
17390402300 Pop Rivet 3/16''. Grand Touring LEPop Rivet 3/16''. Grand Touring LE
-
17293150104 Pop Rivet 3/16''. Grand Touring SEPop Rivet 3/16''. Grand Touring SE
-
18517124300 WasherWasher
-
19414916600 Nylon CapNylon Cap
-
20502006878 LH Bottom PanLH Bottom Pan
-
21293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
22293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
23390402300 Pop Rivet 3/16''. Grand Touring LEPop Rivet 3/16''. Grand Touring LE
-
23293150104 Pop Rivet 3/16''. Grand Touring SEPop Rivet 3/16''. Grand Touring SE
-
24517124300 WasherWasher
-
25414916600 Nylon CapNylon Cap
-
26502006939 Bumper. Includes 26 to 27Bumper. Includes 26 to 27
-
27415107300 InsertInsert
-
28233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
29207664044 Hex. Flanged Screw M6 X 40Hex. Flanged Screw M6 X 40
