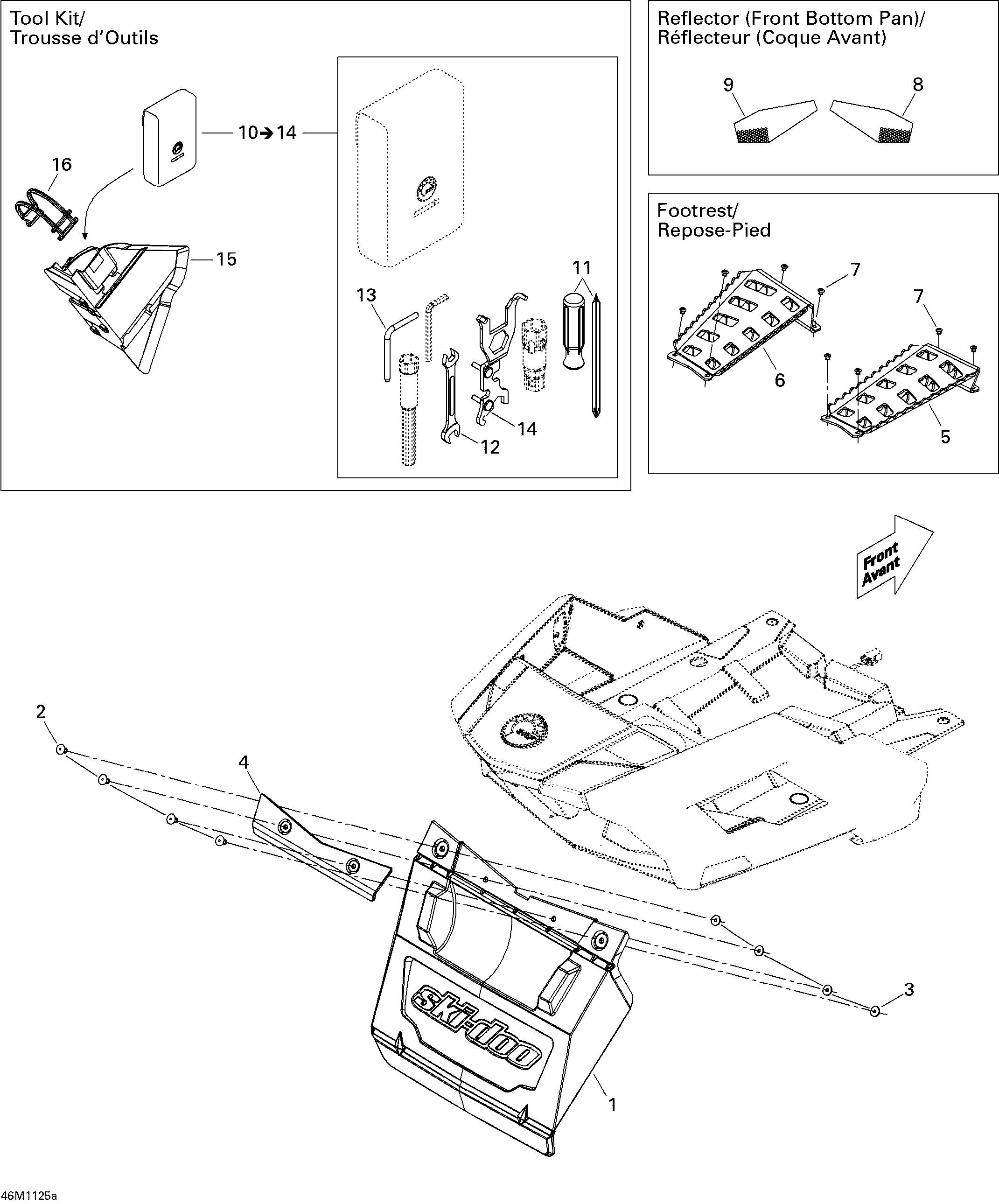

09- Utilities LE для BRP Ski-Doo Grand Touring LE & SE 1200 XR - 2011
-
№АртикулНазвание
-
1520000659 Snow GuardSnow Guard
-
2293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
3517124300 WasherWasher
-
4520000751 ReinforcementReinforcement
-
5520000887 RH FootrestRH Footrest
-
6520000888 LH FootrestLH Footrest
-
7390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
8520000759 RH Front ReflectorRH Front Reflector
-
9520000760 LH Front ReflectorLH Front Reflector
-
10529000055 Tool Kit. Includes 10 to 14Tool Kit. Includes 10 to 14
-
11529000004 Screw DriverScrew Driver
-
12529000002 Fork Wrench 10/13 mmFork Wrench 10/13 mm
-
13520001028 Spacing ToolSpacing Tool
-
14520000988 Wrench SuspensionWrench Suspension
-
15520000720 Tool Kit RackTool Kit Rack
-
16520000528 LatchLatch
