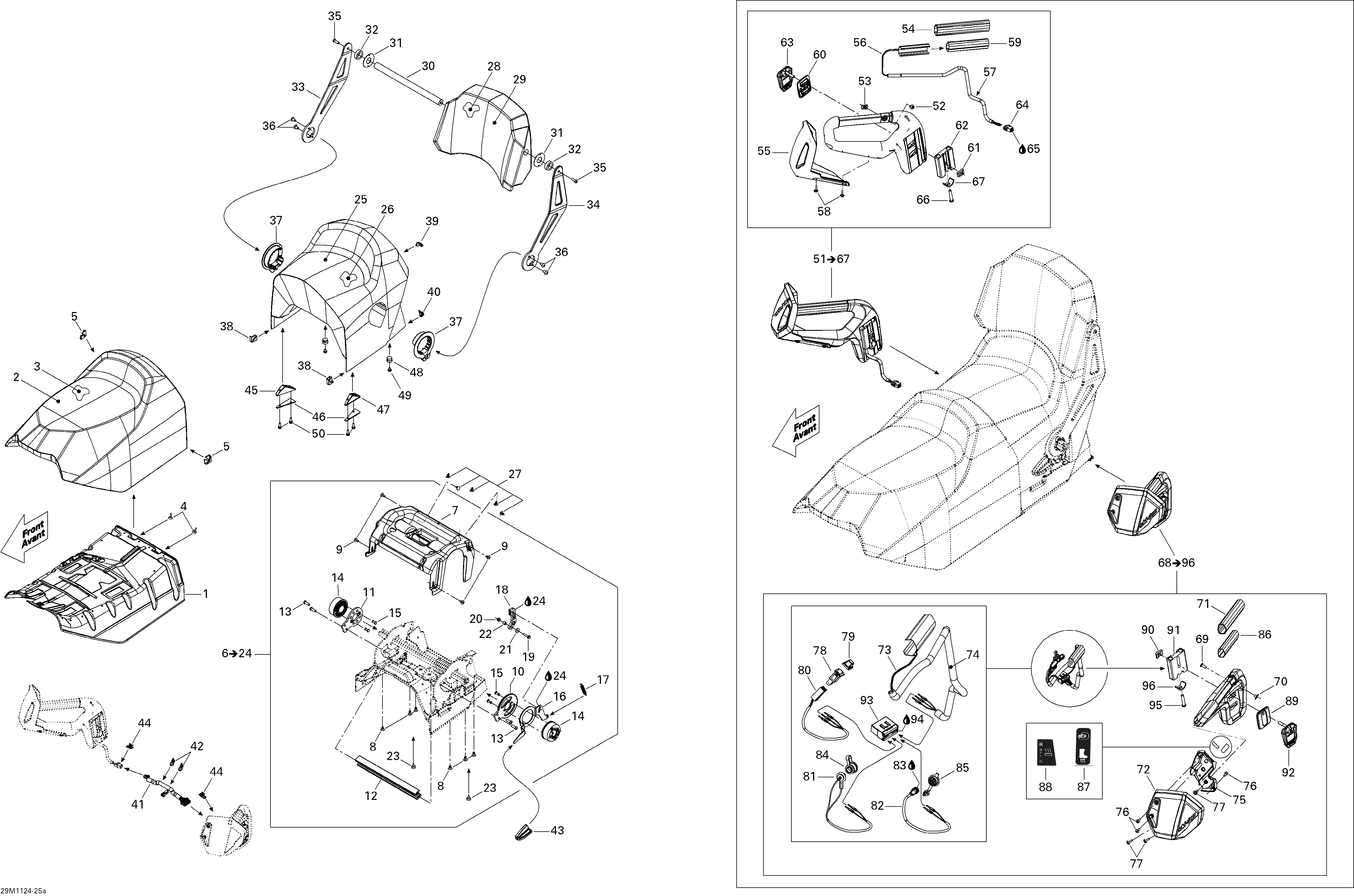

09- Seat LE для BRP Ski-Doo Grand Touring LE & SE 1200 XR - 2011
-
№АртикулНазвание
-
1510004775 Front Seat BaseFront Seat Base
-
2510004941 Front Seat CoverFront Seat Cover
-
3510004777 Front Seat FoamFront Seat Foam
-
4708000125 Rubber StopperRubber Stopper
-
5510004963 Seat CornerSeat Corner
-
6510004779 Rear Seat Base Ass'y. Includes 6 to 24Rear Seat Base Ass'y. Includes 6 to 24
-
7510004423 Foam SupportFoam Support
-
8293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
9293150100 Pop Rivet 3/16''Pop Rivet 3/16''
-
10510004391 SprocketSprocket
-
11510004393 Link PlateLink Plate
-
12510004394 Link TubeLink Tube
-
13205982586 Socket Head Screw M8 X 25, Scotch GripSocket Head Screw M8 X 25, Scotch Grip
-
14510005425 SpacerSpacer
-
15293150129 Steel RivetSteel Rivet
-
16510004385 Handle, BlackHandle, Black
-
17514053643 SpringSpring
-
18510004392 Adjustement PivotAdjustement Pivot
-
19207663044 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
20233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
21224061201 Flat WasherFlat Washer
-
22510004425 BushingBushing
-
23708000759 Rubber StopperRubber Stopper
-
24293800070 Loctite 767, Antiseize Lubricant, 8 ozLoctite 767, Antiseize Lubricant, 8 oz
-
25510004996 Rear Seat CoverRear Seat Cover
-
26510004791 Rear Seat FoamRear Seat Foam
-
27414644300 DartDart
-
28510004782 Backrest FoamBackrest Foam
-
29510005101 Backrest CoverBackrest Cover
-
30510004377 Upper Backrest AxleUpper Backrest Axle
-
31510004379 WasherWasher
-
32510004378 Rubber ShimRubber Shim
-
33510004794 RH Arm, BlackRH Arm, Black
-
34510004796 LH Arm, BlackLH Arm, Black
-
35250000283 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
36250000198 Torx Truss Screw M8 X 16Torx Truss Screw M8 X 16
-
37510004966 SpacerSpacer
-
38510004963 Seat CornerSeat Corner
-
39510004964 RH Rear Corner SeatRH Rear Corner Seat
-
40510004965 LH Rear Corner SeatLH Rear Corner Seat
-
41515176766 Seat HarnessSeat Harness
-
42515175220 Tie RapTie Rap
-
43510004419 GripGrip
-
44515175283 Housing SupportHousing Support
-
45518325710 RH Seat AnchorRH Seat Anchor
-
46510005216 SpacerSpacer
-
47518325709 LH Seat AnchorLH Seat Anchor
-
48510005095 Seat StudSeat Stud
-
49207561044 Flanged Screw M6 X 10, Scotch GripFlanged Screw M6 X 10, Scotch Grip
-
50207562044 Flanged Screw M6 X 20, Scotch GripFlanged Screw M6 X 20, Scotch Grip
-
51510004800 RH Handle Ass'y. Includes 51 to 67RH Handle Ass'y. Includes 51 to 67
-
52250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
53293100003 Nut M6Nut M6
-
54510004449 Handle GripHandle Grip
-
55510005009 RH Air DeflectorRH Air Deflector
-
56515176999 Heated ElementHeated Element
-
57515175506 TubingTubing
-
58250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
59510005011 Reinforcement HandleReinforcement Handle
-
60510004405 MouldingMoulding
-
61510004804 Stopper BlockStopper Block
-
62510004798 Handle LinkHandle Link
-
63510004806 Lever Lock Ass'yLever Lock Ass'y
-
64515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
65293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
66250000220 Socket Head Screw M8 X 45Socket Head Screw M8 X 45
-
67510004565 Handle ClampHandle Clamp
-
68510004802 LH Handle Ass'y. Includes 68 to 96LH Handle Ass'y. Includes 68 to 96
-
69250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
70293100003 Nut M6Nut M6
-
71510004449 Handle GripHandle Grip
-
72510005010 LH Air DeflectorLH Air Deflector
-
73515176999 Heated ElementHeated Element
-
74515175506 TubingTubing
-
75510005036 Housing SwitchHousing Switch
-
76250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
77250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
78510004413 Rocker SwitchRocker Switch
-
79510004414 Switch ProtectorSwitch Protector
-
80515176697 Handle HarnessHandle Harness
-
81515176698 Visor Connector HarnessVisor Connector Harness
-
82515177018 Heated Liner HarnessHeated Liner Harness
-
83293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
84572103300 CapCap
-
85510004950 CapCap
-
86510005011 Reinforcement HandleReinforcement Handle
-
87516003612 Visor Liner DecalVisor Liner Decal
-
88516003816 Heated Handle DecalHeated Handle Decal
-
89510004405 MouldingMoulding
-
90510004804 Stopper BlockStopper Block
-
91510004798 Handle LinkHandle Link
-
92510004806 Lever Lock Ass'yLever Lock Ass'y
-
93515176033 Male ConnectorMale Connector
-
94293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
95250000220 Socket Head Screw M8 X 45Socket Head Screw M8 X 45
-
96510004565 Handle ClampHandle Clamp
