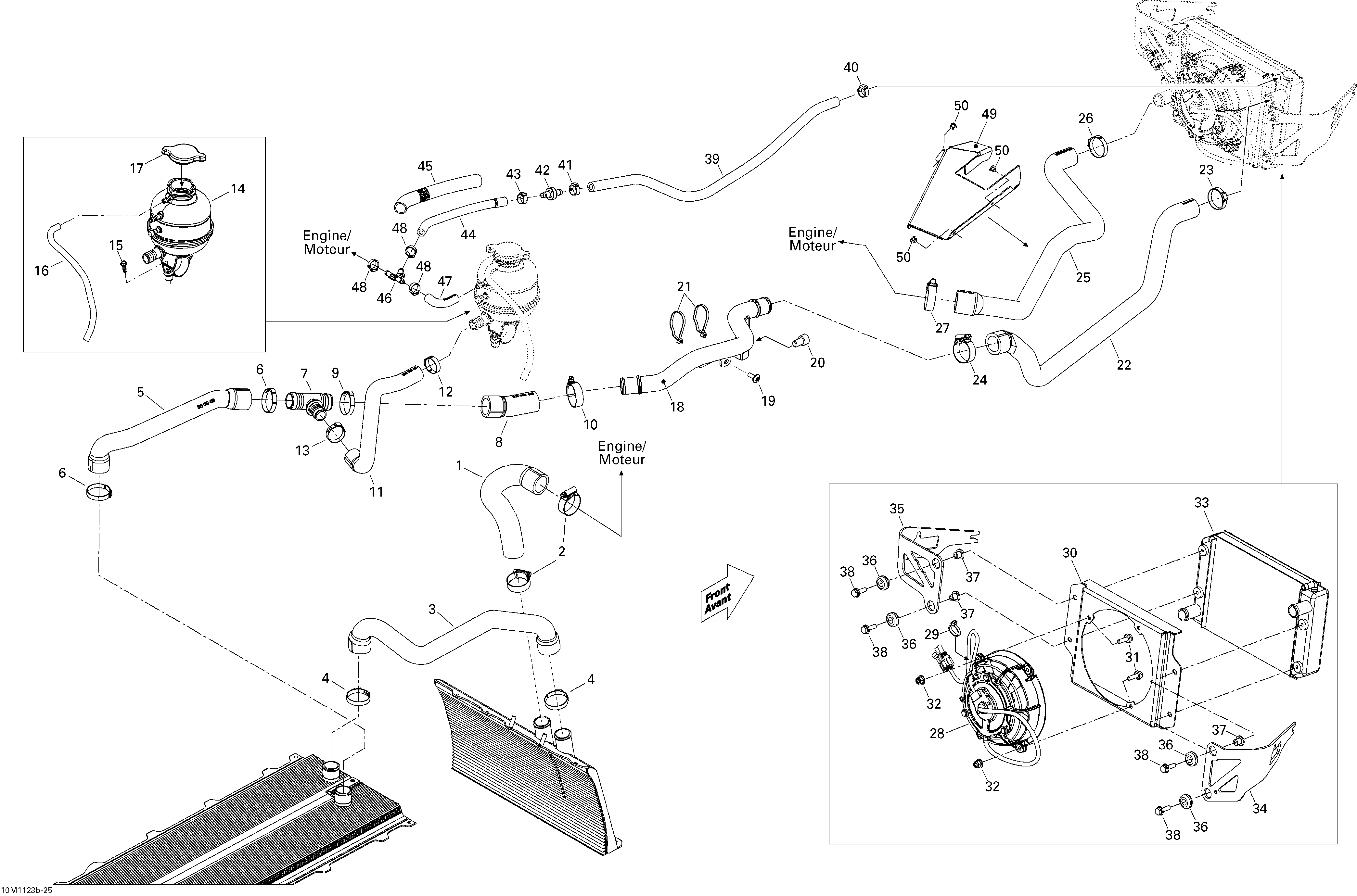

01- Cooling System SE для BRP Ski-Doo GSX LE & SE 1200 XR - 2011
-
№АртикулНазвание
-
1509000440 Outlet HoseOutlet Hose
-
2509000443 Aba Gear ClampAba Gear Clamp
-
3509000370 Radiator HoseRadiator Hose
-
4509000529 Oetiker Gear ClampOetiker Gear Clamp
-
5509000439 Radiator HoseRadiator Hose
-
6509000529 Oetiker Gear ClampOetiker Gear Clamp
-
7509000372 T-FittingT-Fitting
-
8509000438 Radiator HoseRadiator Hose
-
9509000529 Oetiker Gear ClampOetiker Gear Clamp
-
10509000443 Aba Gear ClampAba Gear Clamp
-
11509000441 HoseHose
-
12509000442 Oetiker Gear ClampOetiker Gear Clamp
-
13293650099 Oetiker Gear ClampOetiker Gear Clamp
-
14509000421 Coolant TankCoolant Tank
-
15241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
16415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
17509000180 Pressure CapPressure Cap
-
18509000724 Water Pipe AluminumWater Pipe Aluminum
-
19250000223 Torx Screw M6 X 16Torx Screw M6 X 16
-
20205501644 Socket Screw M10 X 16Socket Screw M10 X 16
-
21414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
22509000757 Inlet HoseInlet Hose
-
23293650165 Oetiker ClampOetiker Clamp
-
24509000443 Aba Gear ClampAba Gear Clamp
-
25509000753 Outlet HoseOutlet Hose
-
26293650165 Oetiker ClampOetiker Clamp
-
27509000443 Aba Gear ClampAba Gear Clamp
-
28709200230 FanFan
-
29414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
30509000714 Fan SupportFan Support
-
31207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
32233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
33509000756 RadiatorRadiator
-
34509000720 RH Radiator SupportRH Radiator Support
-
35509000719 LH Radiator SupportLH Radiator Support
-
36293720053 GrommetGrommet
-
37293900100 BushingBushing
-
38207562044 Flanged Screw M6 X 20, Scotch GripFlanged Screw M6 X 20, Scotch Grip
-
39509000407 Hose 8 mmHose 8 mm
-
40293650140 Oetiker ClampOetiker Clamp
-
41293650053 Crimp ClampCrimp Clamp
-
42509000153 Check ValveCheck Valve
-
43293650125 Oetiker ClampOetiker Clamp
-
44509000765 HoseHose
-
45415080000 Tubing 16 mmTubing 16 mm
-
46293710140 ''Y'' Connector''Y'' Connector
-
47509000776 HoseHose
-
48293650046 Oetiker ClampOetiker Clamp
-
49509000751 Heat DeflectorHeat Deflector
-
50390909200 Avex RivetAvex Rivet
