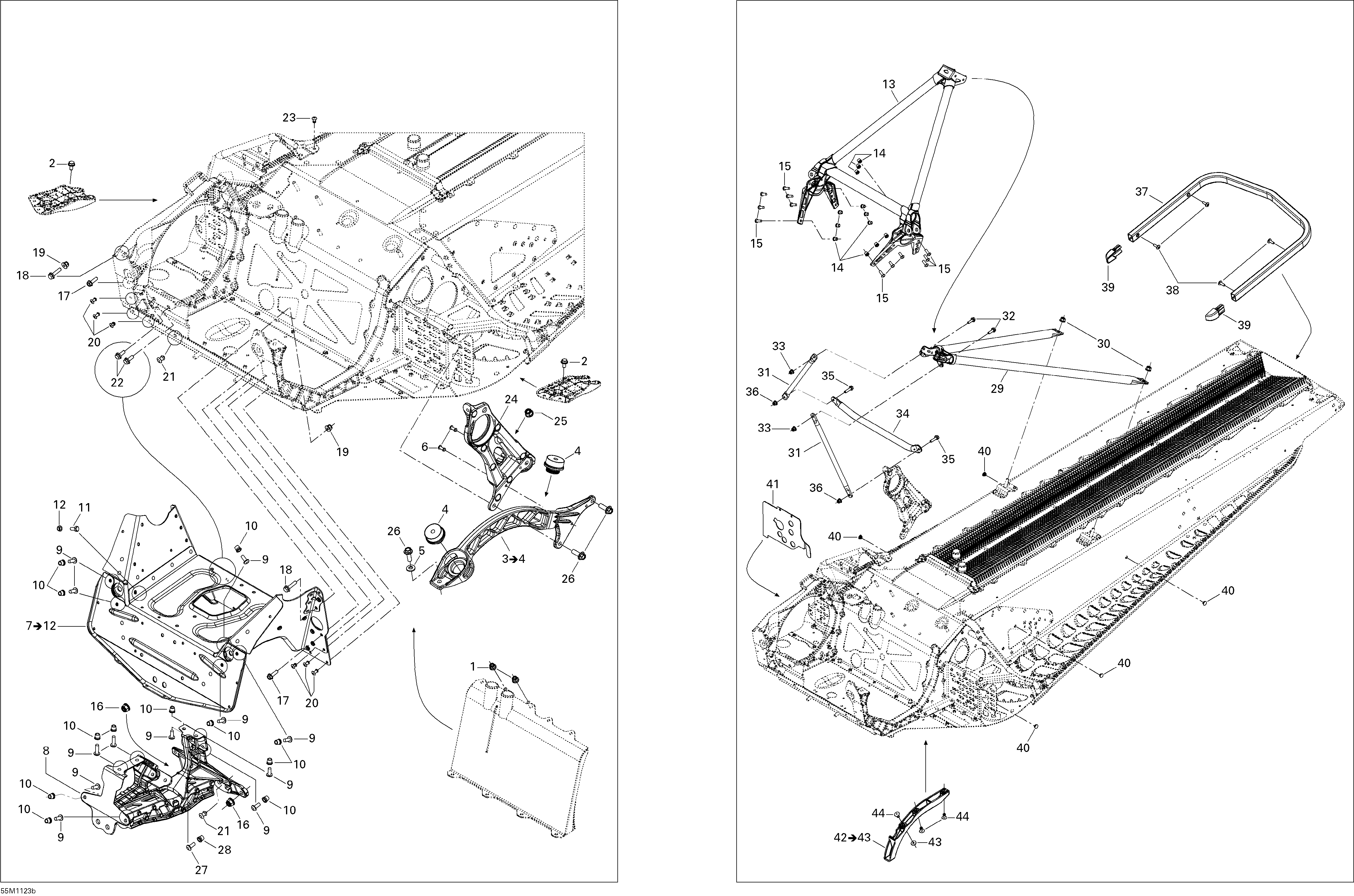

09- Frame and Components SE для BRP Ski-Doo GSX LE & SE 1200 XR - 2011
-
№АртикулНазвание
-
1233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
2207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
3518326399 Brace. Includes 3 to 4Brace. Includes 3 to 4
-
4512060295 Rubber MountRubber Mount
-
5234281474 Conical Spring Washer M8Conical Spring Washer M8
-
6390407200 Pop Rivet 3/16''Pop Rivet 3/16''
-
7518326686 S-Module. Includes 7 to 12S-Module. Includes 7 to 12
-
8518325925 Front Suspension SupportFront Suspension Support
-
9207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
10233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
11207161444 Hex. Screw M6 X 14Hex. Screw M6 X 14
-
12232561600 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
13518326555 Front MemberFront Member
-
14233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
15207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
16233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
17210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
18207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
19233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
20293150191 Monobolt Rivet, 4.8 mmMonobolt Rivet, 4.8 mm
-
21293150182 Monobolt Rivet 6.4Monobolt Rivet 6.4
-
22207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
23390909100 Avex RivetAvex Rivet
-
24518326192 Driven Pulley SupportDriven Pulley Support
-
25233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
26250000351 Hex. Flanged Screw M8 X 25, NylonHex. Flanged Screw M8 X 25, Nylon
-
27207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
28233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
29518326559 Rear MemberRear Member
-
30233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
31518325114 Upper Column SupportUpper Column Support
-
32207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
33233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
34518326657 Center Column SupportCenter Column Support
-
35207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
36233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
37518325481 Rear BumperRear Bumper
-
38250000402 Torx-Truss Screw M6 X 18Torx-Truss Screw M6 X 18
-
39520000840 CapCap
-
40293730047 Dart 8 mm, BlackDart 8 mm, Black
-
41518325418 Heat ShieldHeat Shield
-
42518326973 Front Protector. Includes 42 to 43Front Protector. Includes 42 to 43
-
43517124300 WasherWasher
-
44293150108 Pop Rivet 3/16''Pop Rivet 3/16''
