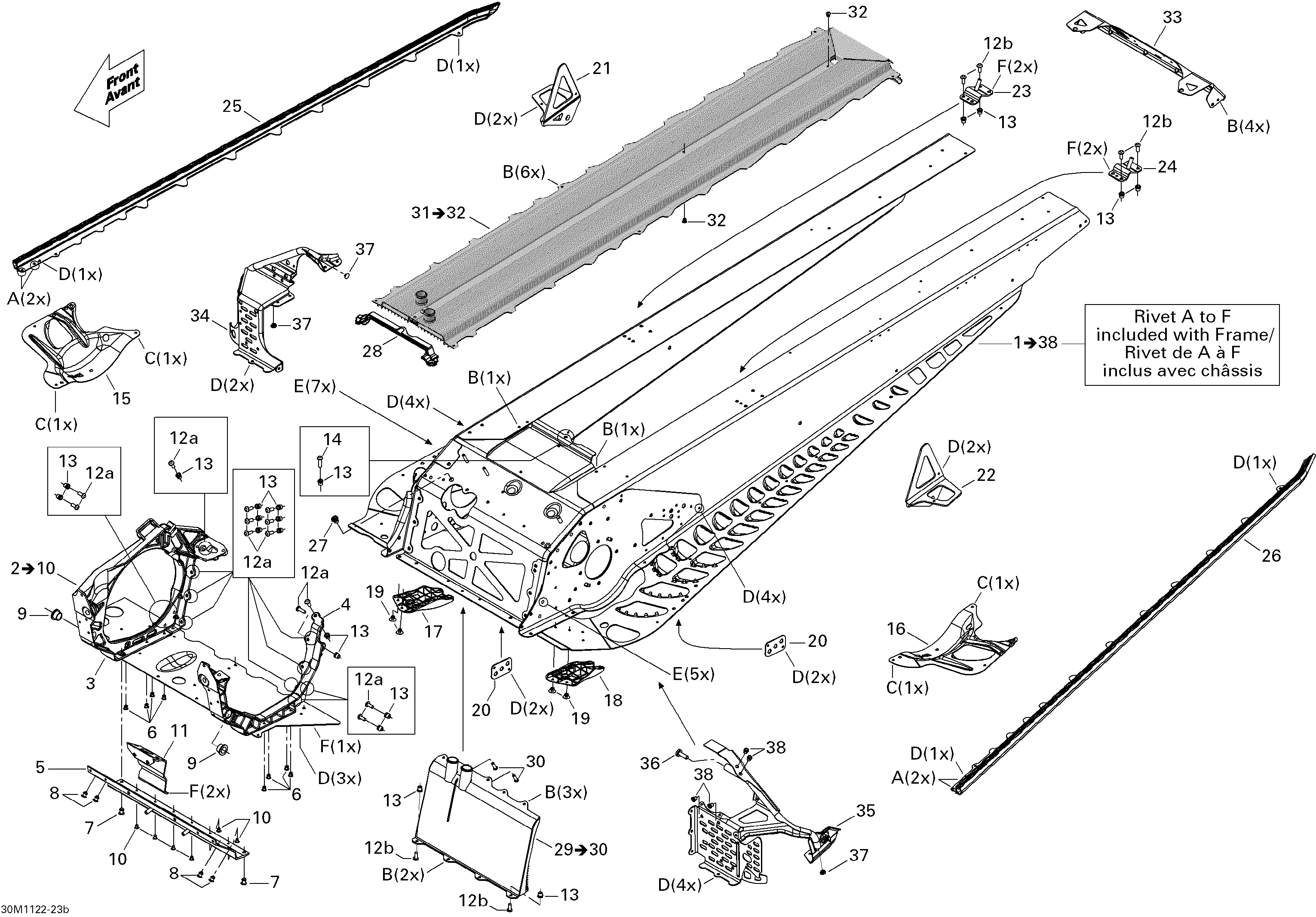

09- Frame SE для BRP Ski-Doo GSX LE & SE 1200 XR - 2011
-
№АртикулНазвание
-
1415129593 Frame 137'' Ass'y. Includes 1 to 38Frame 137'' Ass'y. Includes 1 to 38
-
2518326652 E-Module Ass'y. Includes 2 to 10E-Module Ass'y. Includes 2 to 10
-
3518326444 RH MemberRH Member
-
4518326446 LH MemberLH Member
-
5518326198 Front MemberFront Member
-
6293150144 Stavex RivetStavex Rivet
-
7293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
8293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
9505070954 CushionCushion
-
11518325371 MAG Engine SupportMAG Engine Support
-
12a207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
12b207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
13233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
14207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
15518324874 RH ReinforcementRH Reinforcement
-
16518324875 LH ReinforcementLH Reinforcement
-
17518325782 RH DeflectorRH Deflector
-
18518325783 LH DeflectorLH Deflector
-
19293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
20518201321 Reinforcement PlateReinforcement Plate
-
21518326050 RH Slide BracketRH Slide Bracket
-
22518326051 LH Slide BracketLH Slide Bracket
-
23518325973 RH Rear BaseRH Rear Base
-
24518325974 LH Rear BaseLH Rear Base
-
25518325377 RH RollerRH Roller
-
26518326386 LH RollerLH Roller
-
27415107300 InsertInsert
-
28518326656 SealSeal
-
29518326489 Front Radiator Ass'y. Includes 29 to 30Front Radiator Ass'y. Includes 29 to 30
-
30250300027 Clinch Stud M6 X 20Clinch Stud M6 X 20
-
31518326641 Rear Radiator Ass'y. Includes 31 to 32Rear Radiator Ass'y. Includes 31 to 32
-
32293150144 Stavex RivetStavex Rivet
-
33518325421 Rear CapRear Cap
-
34518326216 RH StirupRH Stirup
-
35518326239 LH StirupLH Stirup
-
36250000248 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
37293730042 DartDart
-
38293450268 InsertInsert
-
A390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
B390909200 Avex RivetAvex Rivet
-
C390909100 Avex RivetAvex Rivet
-
D293150144 Stavex RivetStavex Rivet
-
E293150146 Henrob RivetHenrob Rivet
-
F293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
