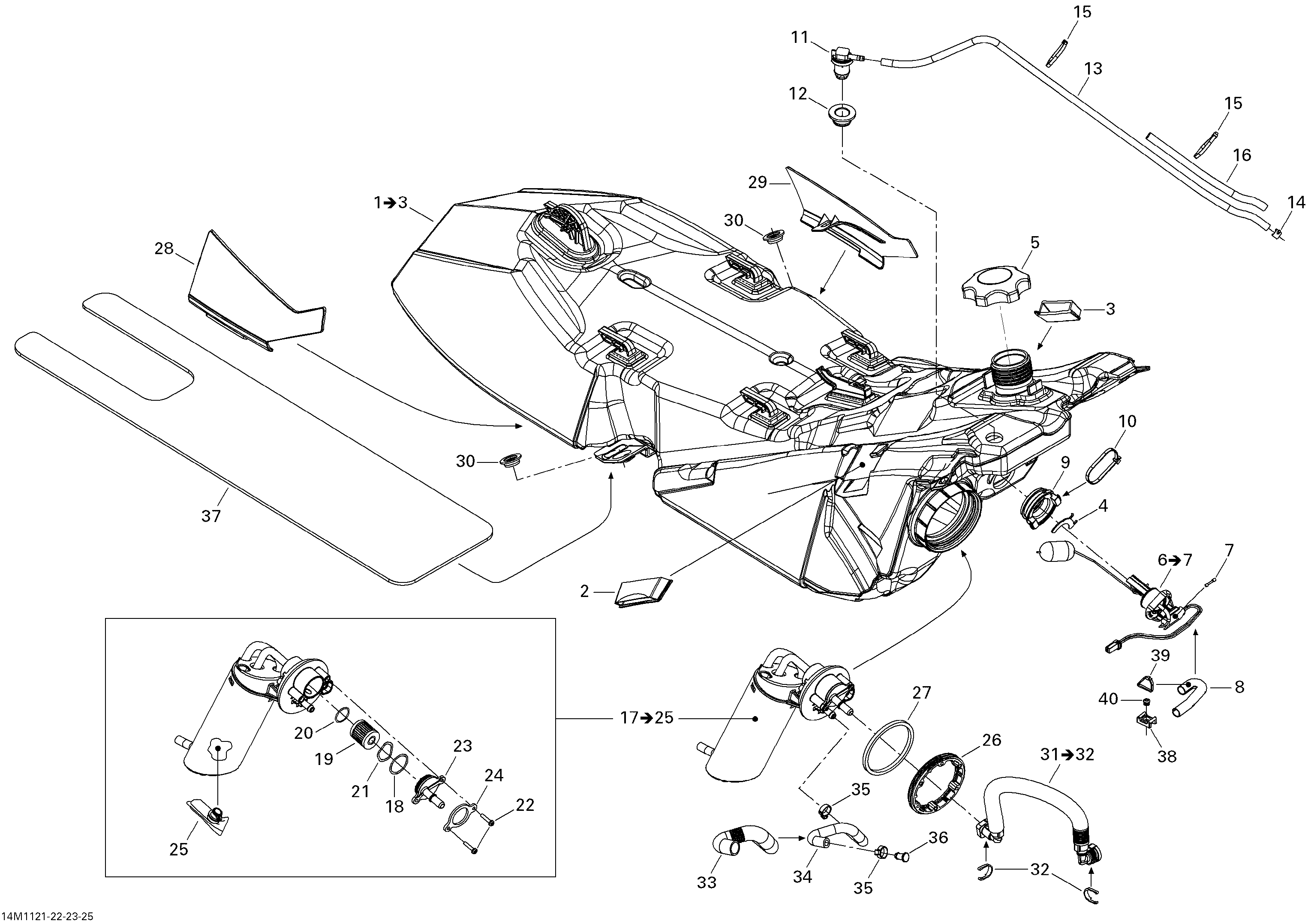

02- Fuel System для BRP Ski-Doo GSX LE & SE 1200 XR - 2011
-
№АртикулНазвание
-
1513033578 Fuel Tank Ass'y. Includes 1 to 3Fuel Tank Ass'y. Includes 1 to 3
-
2513033471 RH Panel ClipRH Panel Clip
-
3513033472 LH Panel ClipLH Panel Clip
-
4513033649 SpacerSpacer
-
5513033025 Fuel Tank CapFuel Tank Cap
-
6513033624 Fuel Level Sensor Ass'y. Includes 6 to 7Fuel Level Sensor Ass'y. Includes 6 to 7
-
7710001995 Fuse, 0.5 AmpereFuse, 0.5 Ampere
-
8415079900 Tubing 10 mmTubing 10 mm
-
9513033606 GrommetGrommet
-
10293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
11513033188 Check ValveCheck Valve
-
12513033596 GrommetGrommet
-
13415080200 Hose, PolyurethaneHose, Polyurethane
-
14414554800 Spring ClampSpring Clamp
-
15414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
16504152900 Protector TubeProtector Tube
-
17513033587 Fuel Pump Ass'y. Includes 17 to 25Fuel Pump Ass'y. Includes 17 to 25
-
18415129509 O-RingO-Ring
-
19415129510 Fuel FilterFuel Filter
-
20415129511 O-RingO-Ring
-
21415129512 Wave WasherWave Washer
-
22415129513 ScrewScrew
-
23415129514 CoverCover
-
24415129569 Fuel Pump RingFuel Pump Ring
-
25415129451 Fuel FilterFuel Filter
-
26513033180 RingRing
-
27513033334 GasketGasket
-
28513033418 RH CapRH Cap
-
29513033419 LH CapLH Cap
-
30513033326 Shoulder BushingShoulder Bushing
-
31513033583 Hose Ass'y. Includes 31 to 32Hose Ass'y. Includes 31 to 32
-
32513033135 Locking ClipLocking Clip
-
33415080000 Tubing 16 mmTubing 16 mm
-
34513033544 Formed HoseFormed Hose
-
35293650047 Collet A SertirCollet A Sertir
-
36293000107 Plug, 8 mmPlug, 8 mm
-
37513033588 Insulating FoamInsulating Foam
-
38515176795 ClipClip
-
39293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
40390402000 Pop Rivet 3/16''Pop Rivet 3/16''
