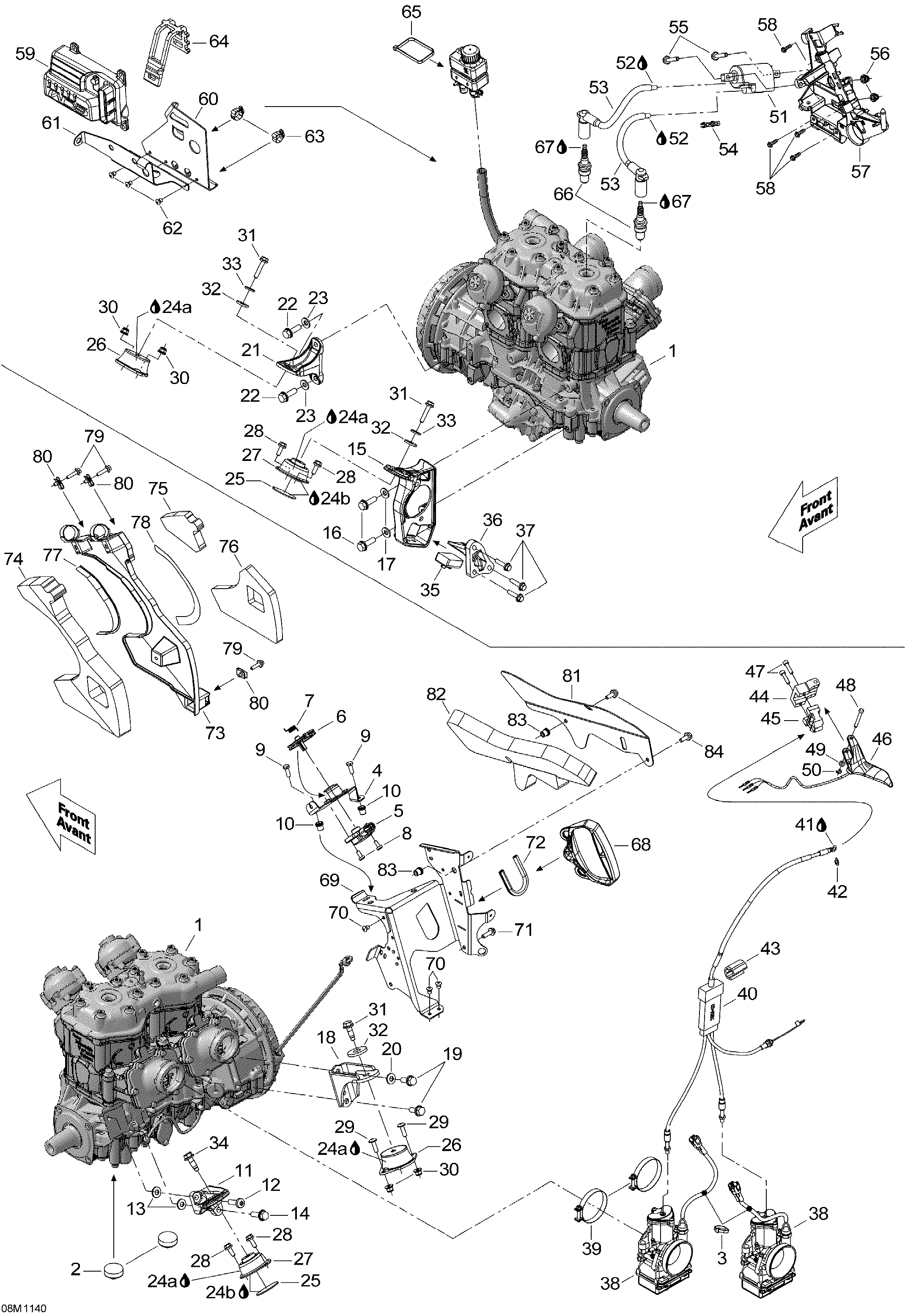

01- Engine And Engine Support для BRP Ski-Doo MX Z X 600RS - 2011
-
№АртикулНазвание
-
2512059738 StopperStopper
-
3414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
4512060336 TPS SupportTPS Support
-
5404162079 Sensor Ass'ySensor Ass'y
-
6512060335 Cap CamCap Cam
-
7512060638 Cam SpringCam Spring
-
8208651241 Phillips Screw M5 X 12Phillips Screw M5 X 12
-
9207361644 Hex. Screw M6 X 16, Scotch GripHex. Screw M6 X 16, Scotch Grip
-
10415107300 InsertInsert
-
11512060173 Rear PTO SupportRear PTO Support
-
12250000248 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
13234281474 Conical Spring Washer M8Conical Spring Washer M8
-
14207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
15512060560 Front Support, PTOFront Support, PTO
-
16207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
17234281474 Conical Spring Washer M8Conical Spring Washer M8
-
18512060568 Rear Engine Support MAGRear Engine Support MAG
-
19207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
20234281474 Conical Spring Washer M8Conical Spring Washer M8
-
21512060108 Front MAG SupportFront MAG Support
-
22207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
23234281474 Conical Spring Washer M8Conical Spring Washer M8
-
24a293550033 Suspension Grease, 10 X 400 GSuspension Grease, 10 X 400 G
-
24b293800021 Loctite 495, 3 GLoctite 495, 3 G
-
25512060410 Rubber WasherRubber Washer
-
26512060360 Rubber MountRubber Mount
-
27512060385 Rubber MountRubber Mount
-
28207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
29250000335 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
-
30233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
31207583086 Flanged Hex. Screw M8 X 30, Scotch GripFlanged Hex. Screw M8 X 30, Scotch Grip
-
32503183200 Washer, YellowWasher, Yellow
-
33234281474 Conical Spring Washer M8Conical Spring Washer M8
-
34250000361 Hex. Screw M8Hex. Screw M8
-
35512060488 StopperStopper
-
36512060576 Stopper SupportStopper Support
-
37207562544 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
38403138811 Carburator TMX38-71Carburator TMX38-71
-
39512059835 Gemi ClampGemi Clamp
-
40512060550 Throttle CableThrottle Cable
-
41293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
42414274500 CirclipCirclip
-
43512060313 ProtectorProtector
-
44512059538 Upper HousingUpper Housing
-
45512059537 Lower HousingLower Housing
-
46512060431 Handle Ass'yHandle Ass'y
-
47205052544 Socket Screw M5 X 25Socket Screw M5 X 25
-
48414438700 Lever PinLever Pin
-
49234051600 Flat Washer M5Flat Washer M5
-
50293370050 CirclipCirclip
-
51512059968 Ignition CoilIgnition Coil
-
52293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
53512060291 CableCable
-
54410914600 Plastic Clip, Spark Plug WirePlastic Clip, Spark Plug Wire
-
55207663044 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
56233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
57512060350 Coils SupportCoils Support
-
58241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
59512060685 Calibrated ModuleCalibrated Module
-
60512060337 ECM SupportECM Support
-
61512060379 Tank SupportTank Support
-
62390909200 Avex RivetAvex Rivet
-
63293650172 Tridon Gear ClampTridon Gear Clamp
-
64570069700 LatchLatch
-
65414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
65293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
66512059552 Spark Plug, NGK BR9ECS-5Spark Plug, NGK BR9ECS-5
-
67293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
68512060136 Starter GripStarter Grip
-
69512060491 Grip SupportGrip Support
-
70390909200 Avex RivetAvex Rivet
-
71210262080 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
72414506600 TrimTrim
-
73512060339 Noise ShieldNoise Shield
-
74512060343 Interior Noise FoamInterior Noise Foam
-
75512060344 Upper Exterior Noise FoamUpper Exterior Noise Foam
-
76512060362 Lower Exterior Noise FoamLower Exterior Noise Foam
-
77512060574 Heat ShieldHeat Shield
-
78512060575 Heat ShieldHeat Shield
-
79207652044 Flanged Hex. Screw M5 X 20Flanged Hex. Screw M5 X 20
-
80250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
81512060492 Rear Noise ShieldRear Noise Shield
-
82512060381 Rear Noise FoamRear Noise Foam
-
83415107300 InsertInsert
-
84207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
