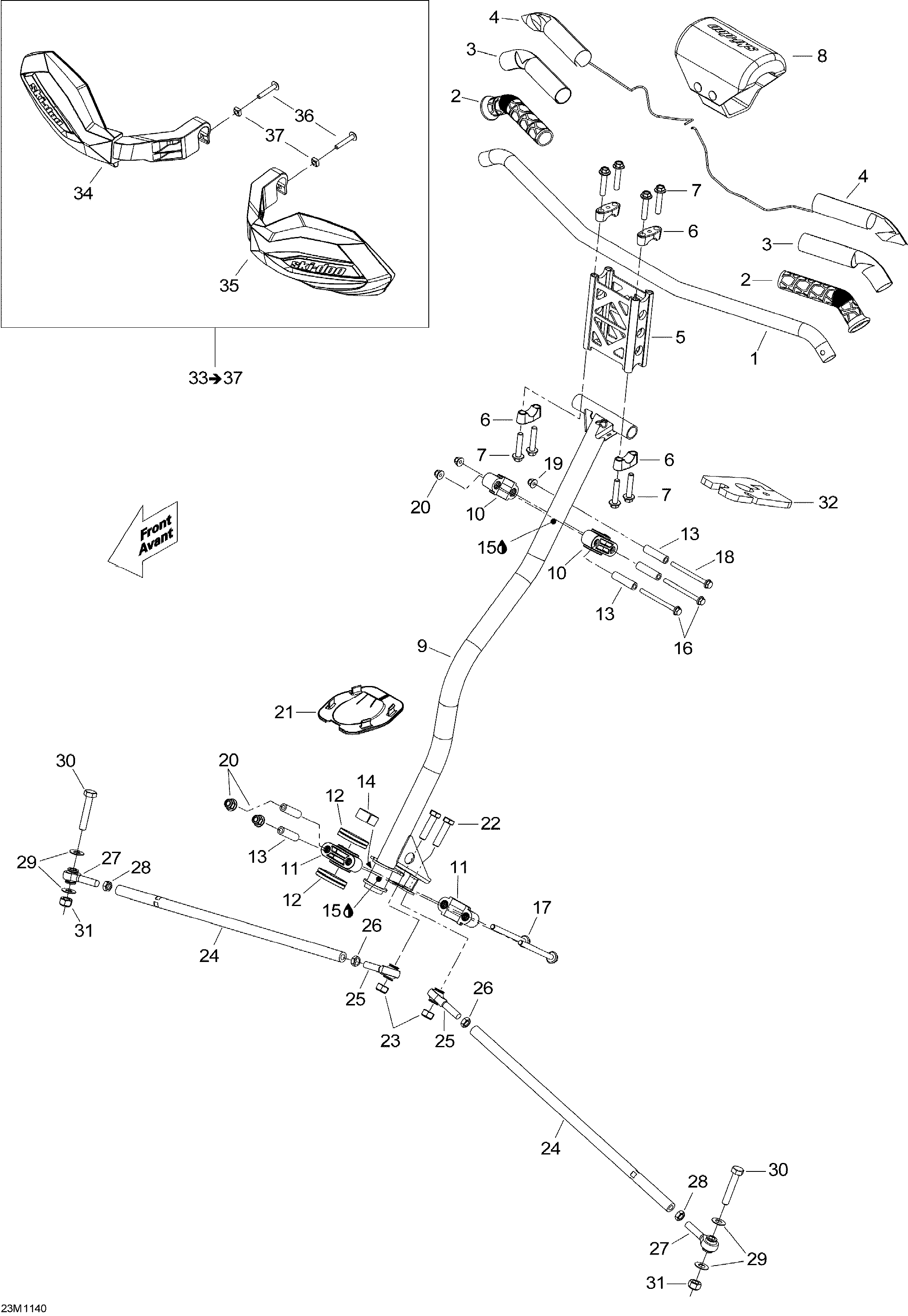

07- Steering для BRP Ski-Doo MX Z X 600RS - 2011
-
№АртикулНазвание
-
1506152087 Hand BarHand Bar
-
2506152226 GripGrip
-
3506152484 Heated Film 20WHeated Film 20W
-
4506152360 InsulantInsulant
-
5506152457 Handle Bar ExtensionHandle Bar Extension
-
6506152395 Steering SupportSteering Support
-
7250000352 Hex. Flange Screw M8 X 40Hex. Flange Screw M8 X 40
-
8506152522 Steering PadSteering Pad
-
9506152478 Main TubeMain Tube
-
10506152293 Half-HousingHalf-Housing
-
11506152217 Lower Half-HousingLower Half-Housing
-
12506152218 Lower Vibration RingLower Vibration Ring
-
13506152297 Housing BushingHousing Bushing
-
14506152440 Retaining RingRetaining Ring
-
15293550033 Suspension Grease, 10 X 400 GSuspension Grease, 10 X 400 G
-
16207667086 Hex. Flanged Screw M6 x 70Hex. Flanged Screw M6 x 70
-
17207667044 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
18207667086 Hex. Flanged Screw M6 x 70Hex. Flanged Screw M6 x 70
-
19233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
20233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
21506152163 PlatePlate
-
22207004034 Hex. Screw M10 X 40Hex. Screw M10 X 40
-
23232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
24506152500 Tie-RodTie-Rod
-
25506152081 LH Thread Ball JointLH Thread Ball Joint
-
26250100016 LH Hex. Jam Nut M10LH Hex. Jam Nut M10
-
27506152019 RH Thread Ball JointRH Thread Ball Joint
-
28732610010 RH Hex. Jam Nut M10RH Hex. Jam Nut M10
-
29506152194 WasherWasher
-
30207006044 Hex. Screw M10 X 60Hex. Screw M10 X 60
-
31232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
32506152476 CushionCushion
-
33860200437 Deflector Kit. Includes 33 to 37Deflector Kit. Includes 33 to 37
-
34517304656 RH DeflectorRH Deflector
-
35517304657 LH DeflectorLH Deflector
-
36250000501 Phillips Screw M6 X 35Phillips Screw M6 X 35
-
37250000498 Square Nut M6Square Nut M6
