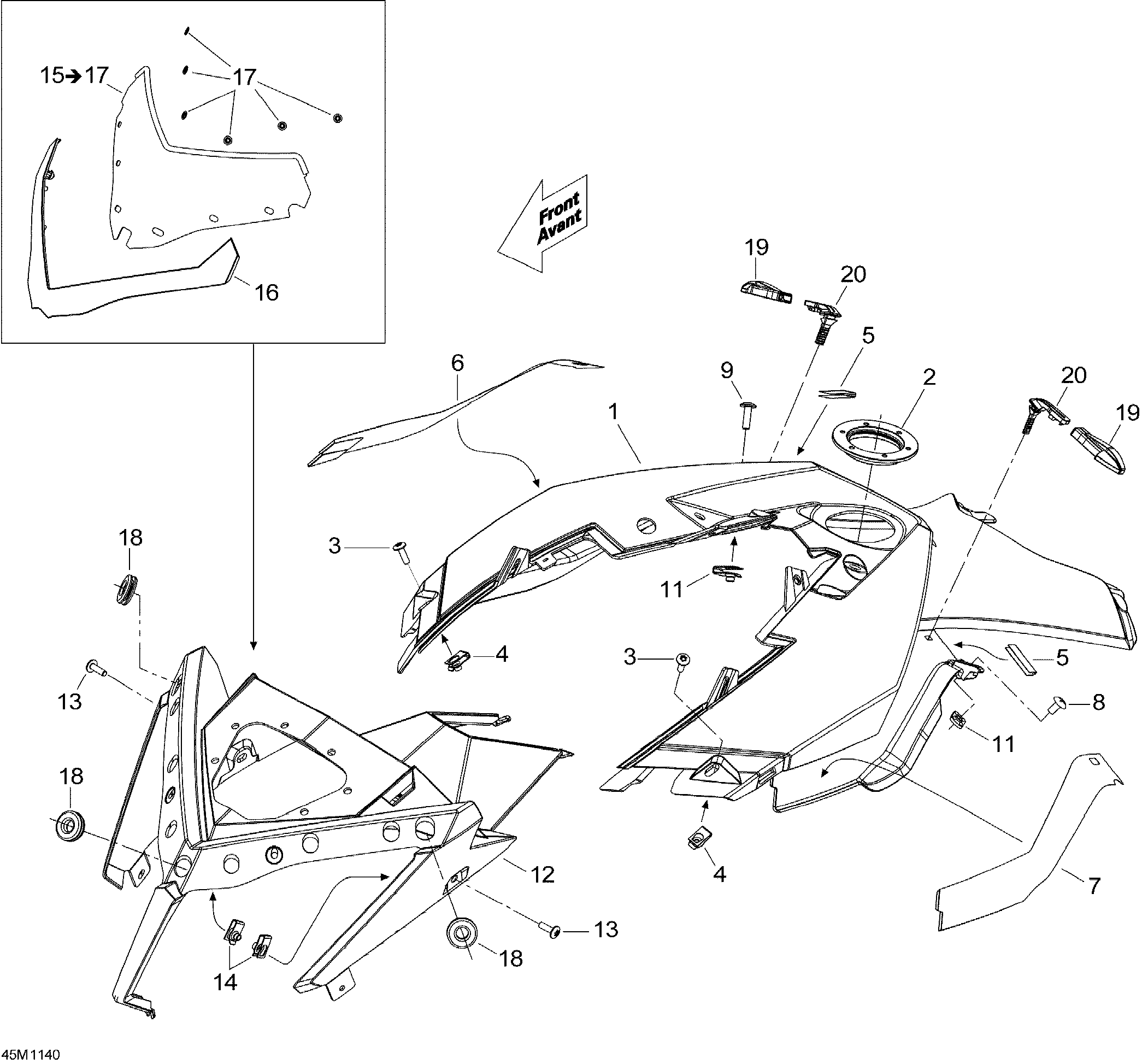

09- Windshield And Console для BRP Ski-Doo MX Z X 600RS - 2011
-
№АртикулНазвание
-
1517304127 ConsoleConsole
-
2517304518 Console NutConsole Nut
-
3250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
4250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
5517304105 Console DecalConsole Decal
-
6517304103 RH DecalRH Decal
-
7517304104 LH DecalLH Decal
-
8250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
9250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
11250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
12517304699 Indicator SupportIndicator Support
-
13250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
14250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
15517304226 Low Windshield Ass'y. Includes 15 to 17Low Windshield Ass'y. Includes 15 to 17
-
16860200089 Windshield Support KitWindshield Support Kit
-
17732610072 Push NutPush Nut
-
18517303756 GrommetGrommet
-
19860200239 Black Latch KitBlack Latch Kit
-
20517303981 Panel LatchPanel Latch
