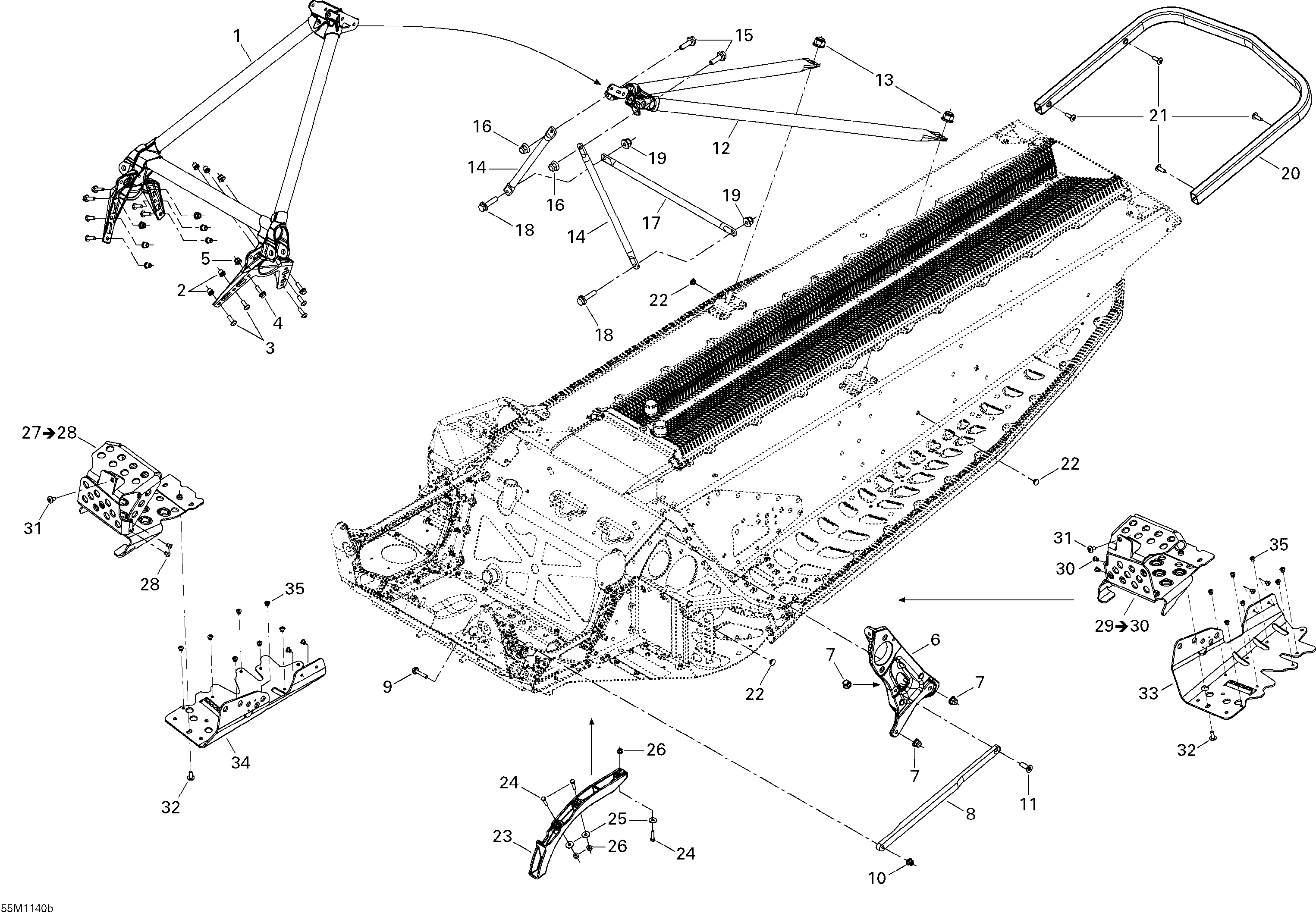

09- Frame and Components 2 для BRP Ski-Doo MX Z X 600RS - 2011
-
№АртикулНазвание
-
1518326273 Front MemberFront Member
-
2233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
3207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
4207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
5233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
6518326651 Pulley SupportPulley Support
-
7233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
8518326118 LinkLink
-
9207663044 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
10233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
11250000143 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
12518326559 Rear MemberRear Member
-
13233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
14518325114 Upper Column SupportUpper Column Support
-
15207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
16233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
17518325115 Center Column SupportCenter Column Support
-
18207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
19233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
20518324980 Rear BumperRear Bumper
-
21250000402 Torx-Truss Screw M6 X 18Torx-Truss Screw M6 X 18
-
22293730041 Dart 8 mm, Full MoonDart 8 mm, Full Moon
-
23518324985 Front ProtectorFront Protector
-
24207152044 Hex. Screw M5 X 20Hex. Screw M5 X 20
-
25391301600 WasherWasher
-
26233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
27518326396 Footrest RH. Includes 27 to 28Footrest RH. Includes 27 to 28
-
28390909100 Avex RivetAvex Rivet
-
29518326397 Footrest LH. Includes 29 to 30Footrest LH. Includes 29 to 30
-
30390909100 Avex RivetAvex Rivet
-
31250000325 Torx Screw M6 X 12Torx Screw M6 X 12
-
32250000365 Torx Screw M6 X 16Torx Screw M6 X 16
-
33518326522 LH ReinforcementLH Reinforcement
-
34518326523 RH ReinforcementRH Reinforcement
-
35390402200 Pop Rivet 3/16''Pop Rivet 3/16''
